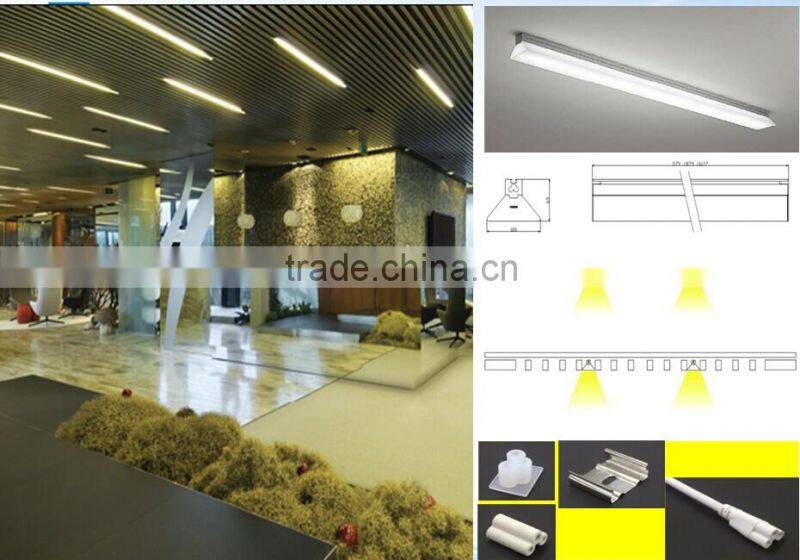

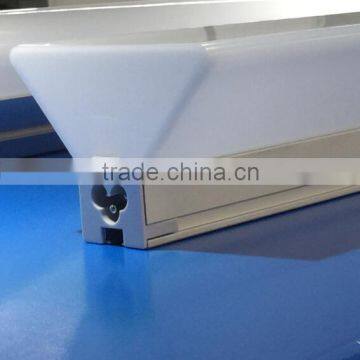

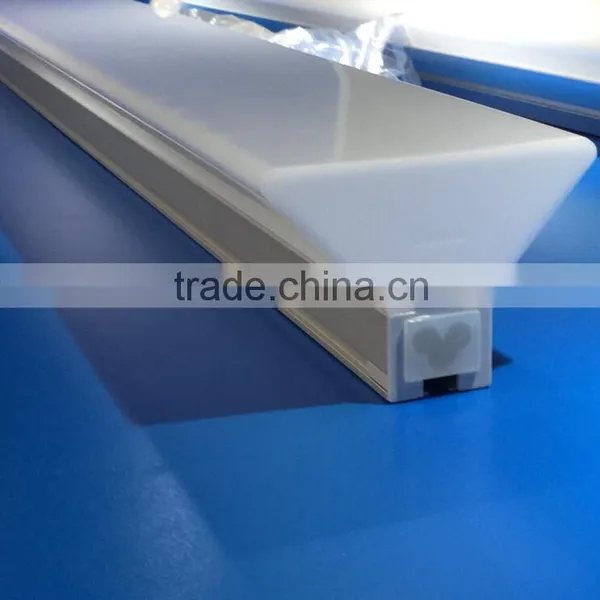

Office simple plastic integrated commercial light 14W Trapezium led linear light
Applications: modern offices, commercial places, train and subway tunnels, etc.
Features
Luminous trapezoid tube combined with ceiling perfectly according to square pass installation structure design
High-quality aluminum light body, good heat dissipation
Light cover is made of light diffusion PC, soft and even light
Famous brand LED chip and driver, stable performance
Ceiling-mounted installation, no dark areas in series
CR08 serie | Working environment | Installation | Protection grade | Color | CCT
| Input voltage | Rated life | Beam angle |
| -10~+40℃ | Ceiling | IP 20 | Aluminum | 6000K | 220-240V/50-60Hz | 30000h | 140°
|
Specifications
MODEL# | Dimensions | Power of lamp | Luminous flux | Power efficiency | Power factor | CRI | Electrical protection | Package number |
CR080009A8U | 579*100*69mm | 9W | 800LM | >90% | >0.9 | >70 | Class I | 12PCS/box |
CR080014A8U | 879*100*69mm | 14W | 1200LM | >90% | >0.9 | >70 | Class I | 12PCS/box |
CR080018A8U | 1177*100*69mm | 18W | 1600LM | >90% | >0.9 | >70 | Class I | 12PCS/box |
IV. Production capability
TIWIN owns automated production lines, production equipment and instruments, including 9 SMT production lines, 65 sets equipments, such as: automatic wave soldering, reflow soldering, automatic braiding, automatic optical spectral machines and other production equipments..
We own 41 assembly lines, with more than 185 sets automatic printing machine, glue machine, burn-in machine and waterproof IP67/68/65 test equipments.
