Home > Lights & Lighting > LED Interior Lighting > LED Tube > TIWIN Building Light Luminous 9W Led Trapezium Led Batten Tube Light

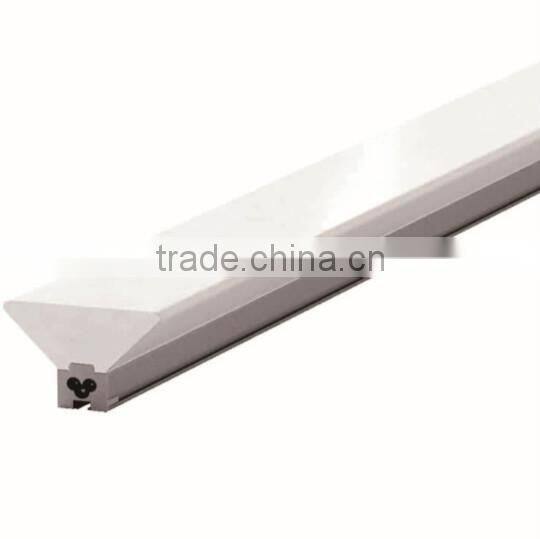

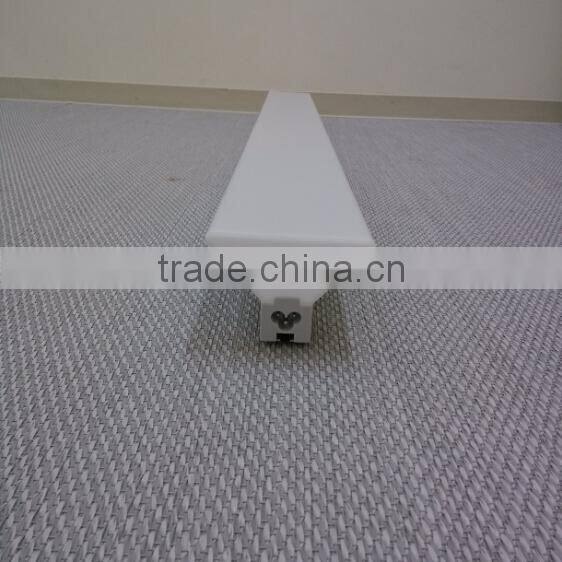

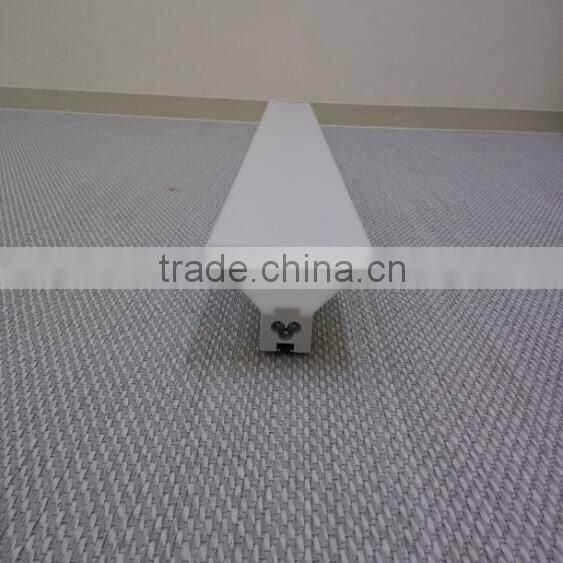

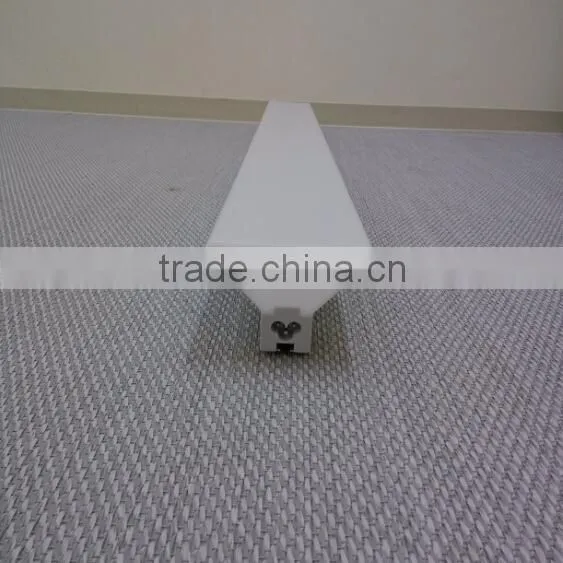

TIWIN Building Light Luminous 9W Led Trapezium Led Batten Tube Light

Name: TIWIN Building Light Luminous 9W Led Trapezium Led Batten Tube Light
Brand: TIWIN
SKU: 123721835
Availability: InStock

TIWIN Building Light Luminous 9W Led Trapezium Led Batten Tube Light thumbnail-1

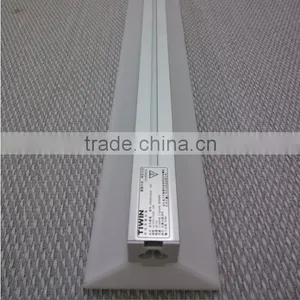

TIWIN Building Light Luminous 9W Led Trapezium Led Batten Tube Light thumbnail-2

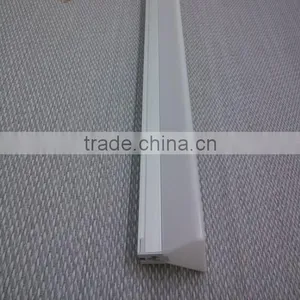

TIWIN Building Light Luminous 9W Led Trapezium Led Batten Tube Light thumbnail-3

TIWIN Building Light Luminous 9W Led Trapezium Led Batten Tube Light photo-1

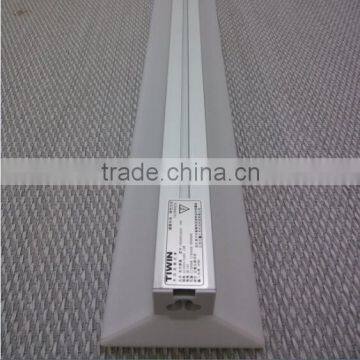

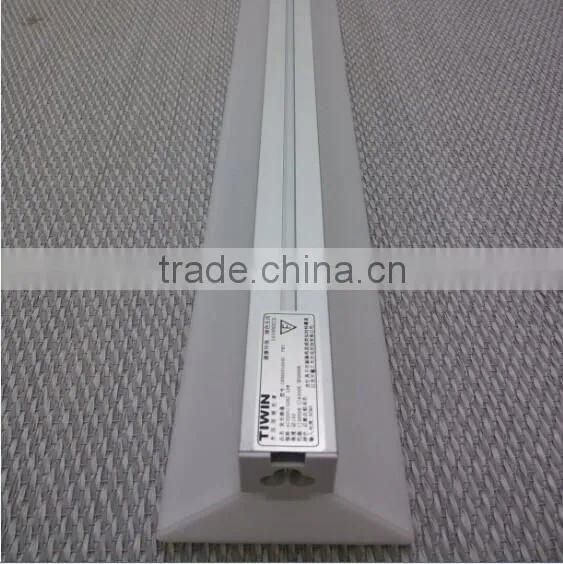

TIWIN Building Light Luminous 9W Led Trapezium Led Batten Tube Light photo-2

TIWIN Building Light Luminous 9W Led Trapezium Led Batten Tube Light photo-3

US$ 30 - 30 MOQ: 100 Pieces

Key Specifications

Get Latest Price

LED Light Source:

EPISTAR

Warranty(Years):

Input Voltage(V):

220-240

Contact Supplier Request Quote Chat Now

Jiangsu Tianying Opto-Electronics Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source EPISTAR

Warranty(Years) 2

Input Voltage(V) 220-240

Lamp Power(W) 9

Lamp Luminous Flux(lm) 800

Lamp Luminous Efficiency(lm/w) 89

Color Temperature(CCT) Other, 6000k

Working Temperature(℃) -10, 40

Working Lifetime(Hour) 30000

Lamp Body Material Aluminum

IP Rating Other, led batten tube light

Certification BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE

Place of Origin Jiangsu, China

Brand Name TIWIN

Model Number Other, led batten tube light

Specifications

TIWIN 9W led batten led batten tube light
well-known brand LED chip luminous source,
high efficiency, long rated life

TIWIN building light Luminous 9W led Trapezium batten light led batten tube ligh

Applications: modern offices, commercial places, train and subway tunnels, etc.

2-years warranty

Luminous trapezoid tube combined with ceiling perfectly according to square pass installation structure design

High-quality aluminum light body, good heat dissipation

Light cover is made of light diffusion PC, soft and even light

Famous brand LED chip and driver, stable performance

Ceiling-mounted installation, no dark areas in series

CR08 serie

Working environment

Installation

Protection grade

Color

CCT

Input voltage

Rated life

Beam angle

-10~+40℃

Ceiling

IP 20

Aluminum

6000K

220-240V/50-60Hz

30000h

140°

Specifications

MODEL#	Dimensions	Power of lamp	Luminous flux	Power efficiency	Power factor	CRI	Electrical protection	Package number
CR080009A8U	57910069mm	9W	800LM	>90%	>0.9	>70	Class I	12PCS/box
CR080014A8U	87910069mm	14W	1200LM	>90%	>0.9	>70	Class I	12PCS/box
CR080018A8U	117710069mm	18W	1600LM	>90%	>0.9	>70	Class I	12PCS/box

Company Introduction

IV. Production capability

TIWIN owns automated production lines, production equipment and instruments, including 9 SMT production lines, 65 sets equipments, such as: automatic wave soldering, reflow soldering, automatic braiding, automatic optical spectral machines and other production equipments..

We own 41 assembly lines, with more than 185 sets automatic printing machine, glue machine, burn-in machine and waterproof IP67/68/65 test equipments.
