Superior Quality Environmental Induction Heating Machine for Forging (JLZ-110)
- 500 Set / Sets per Month
- Guangzhou Shenzhen Hongkong
- T/T L/C D/P D/A Credit Card PayPal
- high quality Cr-V joint impact sockets
- 3/8" Dr Good quality socket wrench
- Flexible Packing Foil, Double Zero aluminum foil
- blister packaging pills foil, double light foil, 8011 aluminum foil
- gutkha paper, aluminum foil for distributors, pharmaceutical foil
- aluminum foil for distributors, pharmaceutical foil
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | Jinlai |
Model Number: | JLZ-110 | Voltage: | 3 Phase 380V | Power(W): | 110KW |
Dimension(L*W*H): | Customized | Weight: | Net weight 450KG | Certification: | ISO9001:2008, CE, SGS, BV |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Superior Quality Environmental Induction Heating Machine for Forging (JLZ-110)

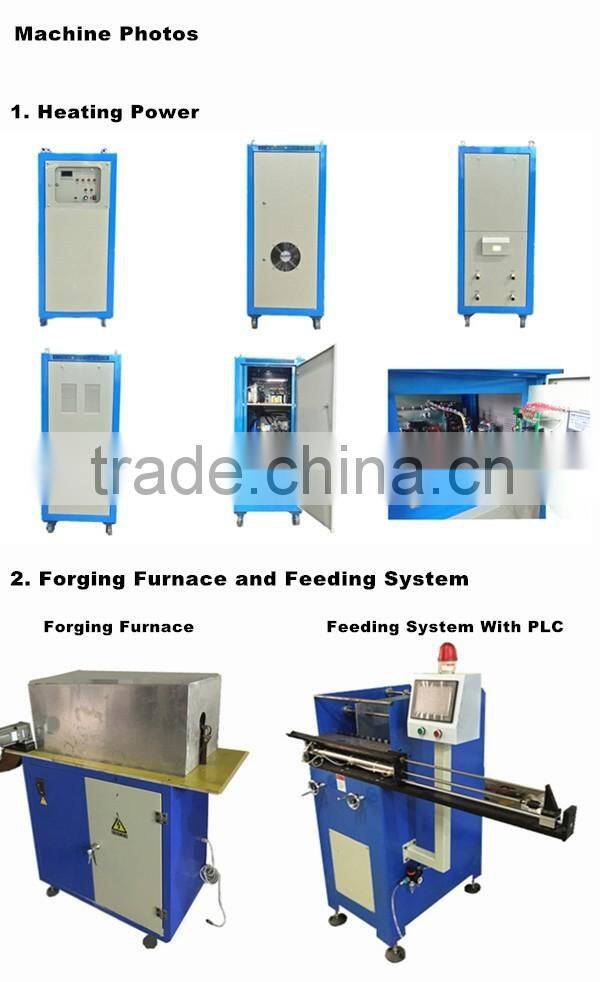

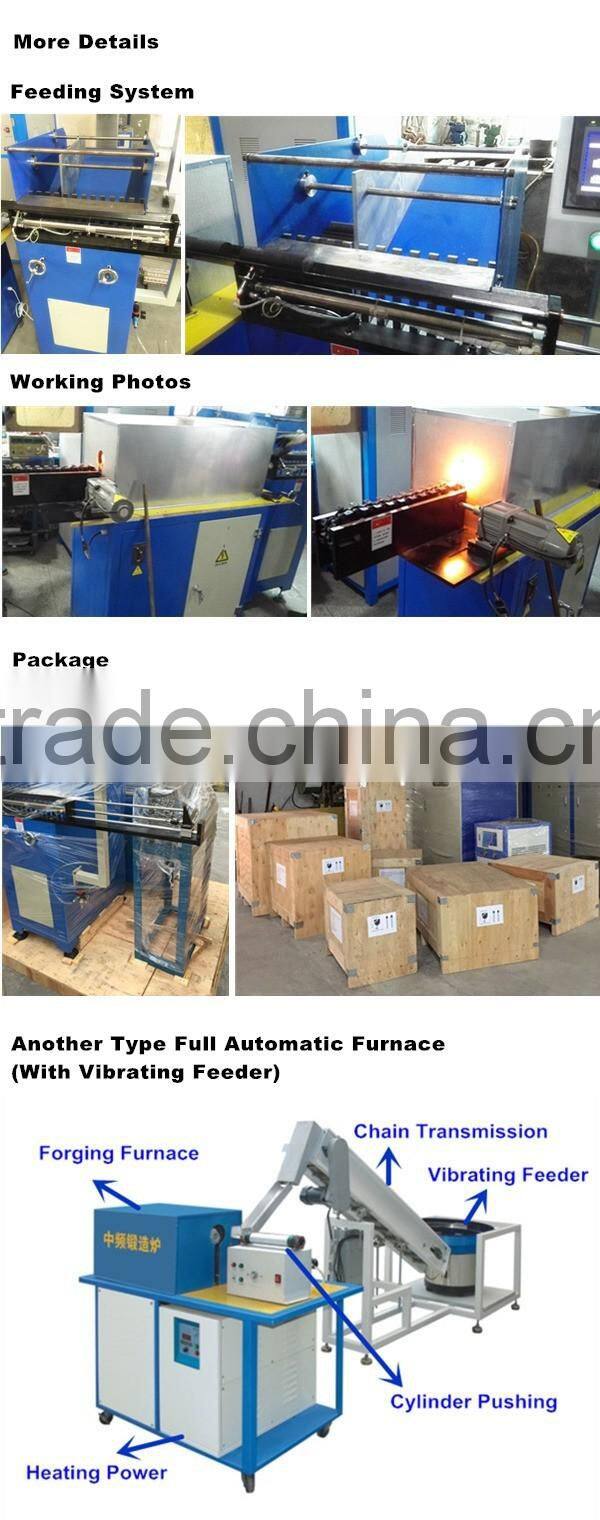

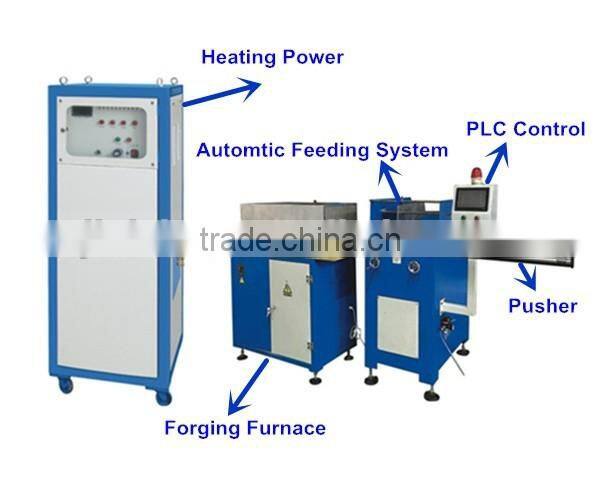

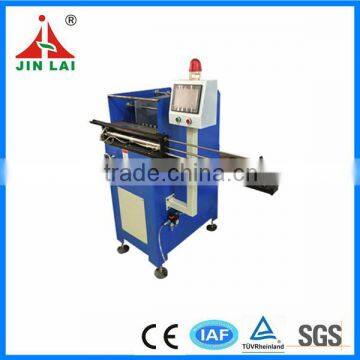

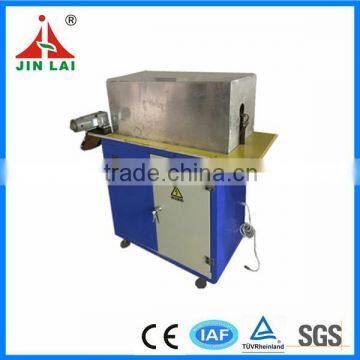

The furnace includes basically the JL medium frequency generator, the compensating cap, the working table, the heating coil, coil cover, rod feeder and so on. For some applications, the infrared sensor, temperature controller and automatic rod feeding systems can also be included.
Characteristics of M.F Forging Furnace
- Wide frequency range from 1kHz to 20kHz,frequency can be designed to satisfy different size of the heated rods.
- In the continuous heating process, the load inside the coil is stable , thus to overcome the great heating power change caused by the great change of the load during the heating course from cool rod to 1100 degree rod. The actual power can reach more than 85% of the rated power of the machine.

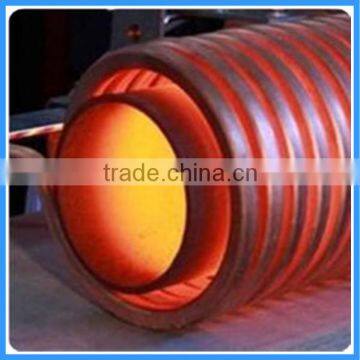

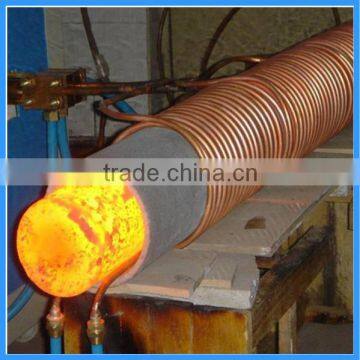

- The heating coil can be 500mm to 1 meter long, several pieces are heated at the same time to make sure the penetrating effect.
- Even when heating non-ferrous metals like copper or aluminium, the actual power can also reach more than 85% of the rated power of the machine by design the coil properly and match the compensating cap correctly. 3.5KG copper or brass can be heated to 700 degree per kilowatt in an hour.
Applications
M.F. forging furnace is used for the heating of bars and rods larger than Φ12, the material can be steel, stainless steel, copper, brass ,aluminium and so on. The heating can be the whole rod, end of the rod or middle part of the rod.
Superior Quality Environmental Induction Heating Machine for Forging (JLZ-110)
Technical Parameters:
Model | JLZ-110KW |
Input power desire | 3 phase 380V 50/60HZ |
Max oscillate power | 110KW |
Max input current | 175A |
Output voltage | 70-550V |
Oscillate frequency | 1-20KHZ |
Cooling water desire | ≥0.2MPa ≥10L/Min |
Duty cycle | 100% 40°C |
Dimensions(L*W*G) | Induction heater:700*620*1600mm |
Net weight | 210kg |
Cable length | 2-6(Meters) |
Superior Quality Environmental Induction Heating Machine for Forging (JLZ-110)
List of Accessories in the Package
Item | Name of machine or parts | Specification | Amount |
1 | JLZ-110KW heating power | - | 1 pc |
2 | Forging furnace with feeding system | - | 1 pc |
3 | Foot pedal | 3 core | 1 pc |
4 | Connect cable | - | 1 set |
5 | Instruction Manual | - | 1 pc |
6 | Product catalog | - | 2 sets |
Superior Quality Environmental Induction Heating Machine for Forging (JLZ-110)
Main Models & Heating Ability
Models | Max. Input Power | Heating Ability of Normal Material | ||
Steel /S.S to 1100 degree | Copper/ brass to 700 degree | Aluminum to 500 degree | ||
JLZ-35 forging furnace | 35KW | 1.25 KG/min | 1.75 KG/min | 1.46 KG/min |
JLZ-45 forging furnace | 45KW | 1.67 KG/min | 2.33 KG/min | 1.87 KG/min |
JLZ-70 forging furnace | 70KW | 2.5 KG/min | 3.5 KG/min | 2.92 KG/min |
JLZ-90 forging furnace | 90KW | 3.33 KG/min | 4.67 KG/min | 3.75 KG/min |
JLZ-110 forging furnace | 110KW | 4.17 KG/min | 5.83 KG/min | 4.58 KG/min |
JLZ-160 forging furnace | 160KW | 5.83 KG/min | ------- | 6.67 KG/min |
Company Profile:
Dongguan Jinlai Electromechanical Device Co.,ltd. founded in 1996,
which is engaged in R&D, production and sale of solid Induction heating machine
professionally.Several senior experts of induction heating equipment gathered
here, who initiate the induction heating machines with environmental protection
and highly effective energy conservation, positively and diligently.
Pre-sale service:
l Recommend the most suitable machine for customers.
l Inquiry and consulting support.
l Sample testing support.
l View our factory.
In-sale service:
l Strictly manufacture the machine, according to technical standards.
l Take run test, according to relevant equipment test run regulations.
l Strictly check up the machine, before delivery.
l Delivery on time.
After-sale service:
l 12 months warranty period.
l Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
l If any big quality problems occurs out of the guarantee period, Jinlai
will send maintenance.
l Technician to provide visiting service after checking with the customer and
charge for a favorable price.
l We provide a lifetime favorable price to the buyer with the materials
and spare parts used in system operation, equipment maintenance.
l The above mentioned are only basic after-sale service requirements, we will
make more promises related to quality assurance and operation guarantee
mechanism.
China Supplies Induction Heating Power Supply
Questions and Answers:
1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2.How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
3.How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
4. Which export port you use?
Any China port, commonly we will use Shenzhen ,Guangzhou ,Hongkong port, it can appoint as you like.
5.How about the payment terms and delivery time ?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 30% deposit,70% before shipment (we will shoot total delivering process for customer's confirmation)and the related papers. You can pay by T/T,L/C, Western Union or other ways.
The small machine delivery time is within 7 days, the bigger one takes about 15days,we will delivery goods on time.
6.If I have paid but can not receive the goods, how should I do?
Alibaba international website is a famous trade platform and has been mature those years ,every supplier on it has paid large integrity fund,and we have Chinese business licenses which can be checked on China official website or we can show it to you,so that situation will never appear, please be assured.
7.Is your goods has ISO9001 or CE certificate ?
Yes, all our goods has ISO and CE certificate. All machines are high quality goods.
8.What is your nature of your company:dealer or factory ?
We are manufacturer and have a big factory ,warmly welcome to visit our factory and contact us.
