The DIN-POE1 is a DC/DC PoE (Power over Ethernet) injector, which allows one DC input and four different adjustable voltage PoE outputs. Output power maximum is 2A/port, the data rate can be either 10M/100M/1000M. This manual will help you with installation and setting up the PoE injector.
Hardware Description:

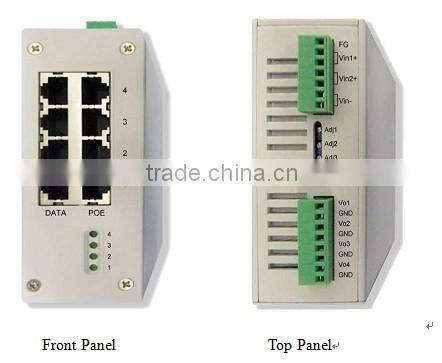

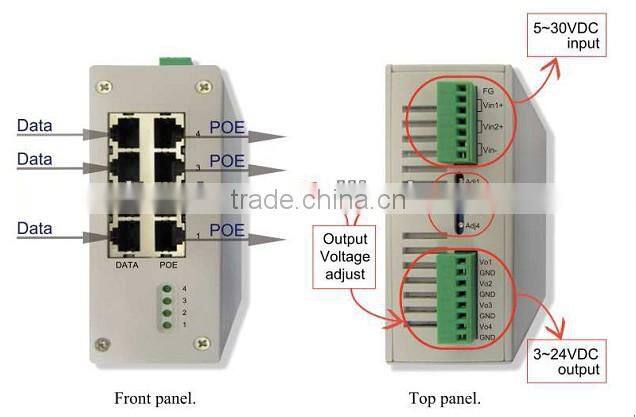

Data Input
The left RJ45 ports 1-4 on the front panel are used for Gigabit Ethernet Data Input. The model is a midspan, without Ethernet switch funtionality. Each data port is independent.
Power Input
The 7 pin green terminal on the top panel is used for power input wiring, it can be connected to the two DC sources as back up, and the higher voltage source will become the main source . The input voltage range of the nmodel is 5Vdc to 30Vdc.
POE Output
The right RJ45 ports 1-4 on the front panel are used for poe output. Each port can dliver a different voltage. The Adj1~Adj4 on the top panel are sued to adjust the output voltage of port 1~4. Each port can be regulated between 2.3Vdc to 24Vdc with individual setting.

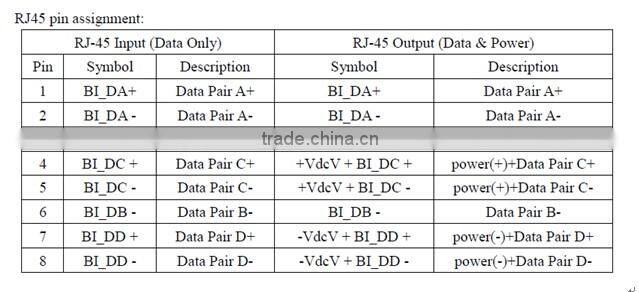

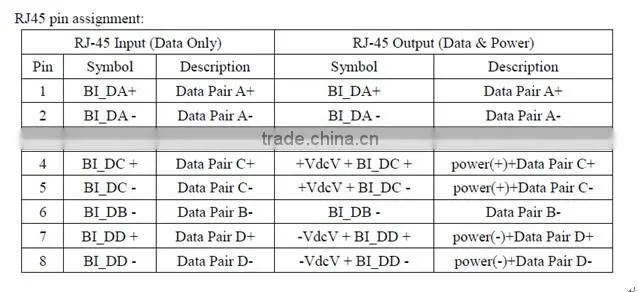

Data pair A on line 1 and 2
Data pair B on line 3 and 6
Data pair C plus V+ on line 4 and 5
Data pair D plus V- on line 7 and 8
DC output
The 8 pin connector on the top panel is used for DC ouptut. Vo1~Vo4 with the same voltage as POE. Port 1~4 as regulated between 2.3Vdc to 24Vdc. All the GNDs can be connected together.
Quick Guide
Spec
Data Rate |
10M/100M/1000M |
Input Voltage |
5VDC to 30VDC |
Maximum PoE output |

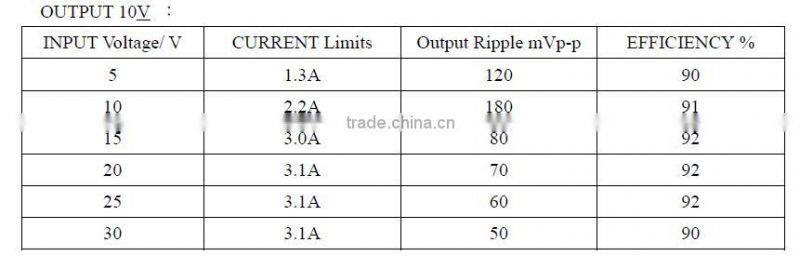

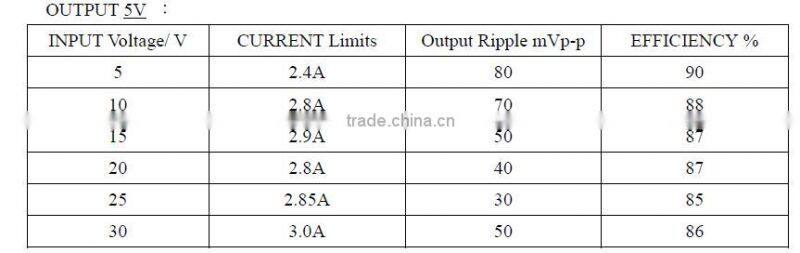

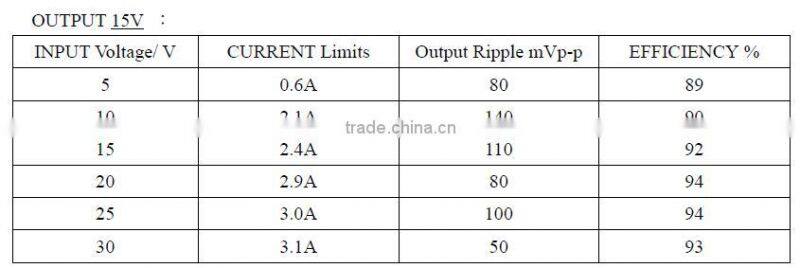

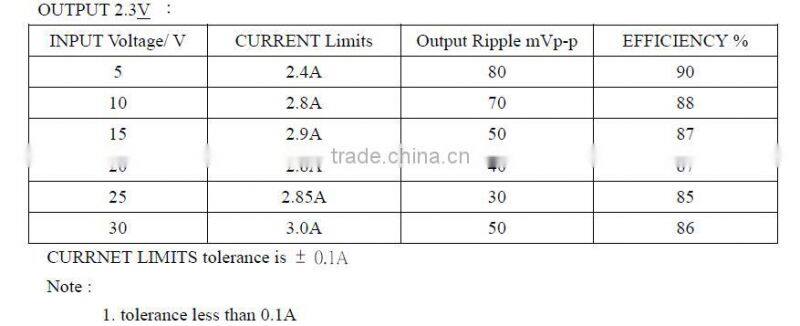

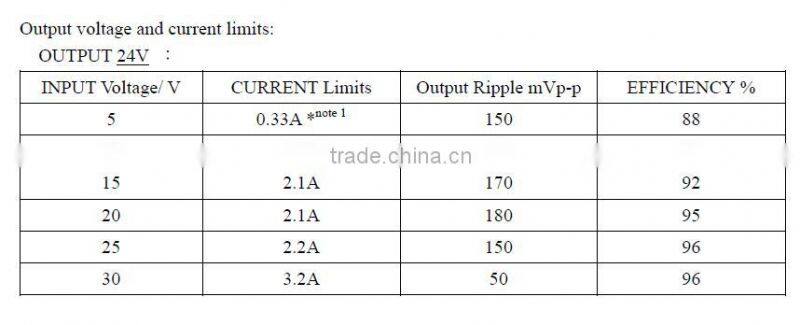

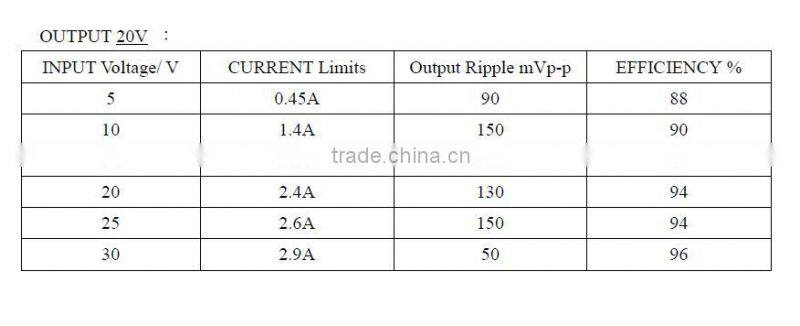

Current limited – 2A/port (as the output voltage/current chart below) |
Maximum DC output |
3A maximum (as the output voltage/current chart below) |
Compliance |
non 802.3af/at |
PoE protection |
over-current protection |
LEDs: |
Green-Power ready, Off-No power apply |
Operating temperature |
-40℃~ +65℃ |
Operation humidity |
90% relative humidity, non-condensing |
Storage temperature |
-40℃~+85℃ |
Dimension |
125mm(H) x46mm(W) x102mm(D) DIN RAIL Mountable |
Surge Protection on data Input ports : | |
Operating Voltage |
Data 5V |
Clamping Voltage |
Data 16.5V(@IPP=5A, tp = 8/20µs, I/O pin to GND) |
Peak Pulse Current |
20A (tp=8/20µs) |
Pin Protected |
All 8 pin protected |
Max Shut Capacitance |
<3pF (VR-0V, f-1MHz, I/O pin to GND) <1.5 pF (VR-0V, f-1MHz, Between I/O pins) |
IEC compatibility(EN 61000-4) |
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 20A (8/20µs) |
