Specifications
Double section wall mounted cabinet with full accessories1. 19" installation.
2. Double section structure.
3. Loading: 60kg
Double section wall mounted cabinet with full accessories
Specification:
1> The Products comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92 standard, which compatible with 19 inch international standard, metric system and ETSI standard.
2> The products with advanced technology, precised size, reliable structure with 60KG static loading capacity.
3> 19 inch standard installation inside, it is quick and easy wall mounted.
4> Double section structure with high vented front & rear doors and side panels, the open angle between the two section is 120 degrees, the open angle for front door is over 180 degree.
5> 120mm size fan can be installed on the top of the cabinet.
6> Cable can entry from top or bottom.
7> IP degree: IP20
8> Surface with high quality powder coating after degreasing, pickling and phosphating.
9> High quality SPCC cold rolled steel in the thickness of 1.2 to 2.0mm.
10> Colors can be customized, but RAL 9004(black), RAL 7044(grey) and RAL 7039(dark grey) are our standard colors.
Surface Finish:
Degreasing, pickling, phosphating, powder coating.
Material and thickness:
SPCC cold rolled steel
Mounting profile: 2.0mm
Others: 1.2mm-1.5mm.
Color:
RAL 9004(black)/ RAL 7044(grey)/ RAL 7039(dark grey)

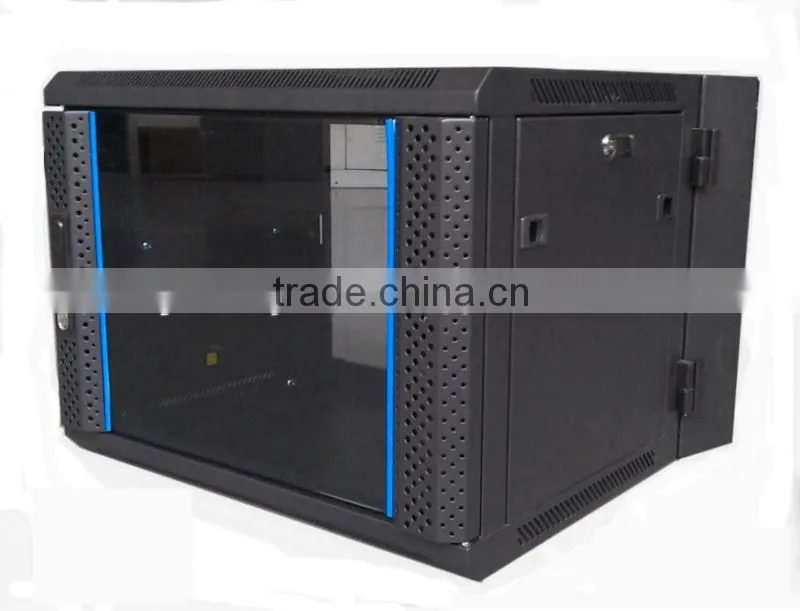

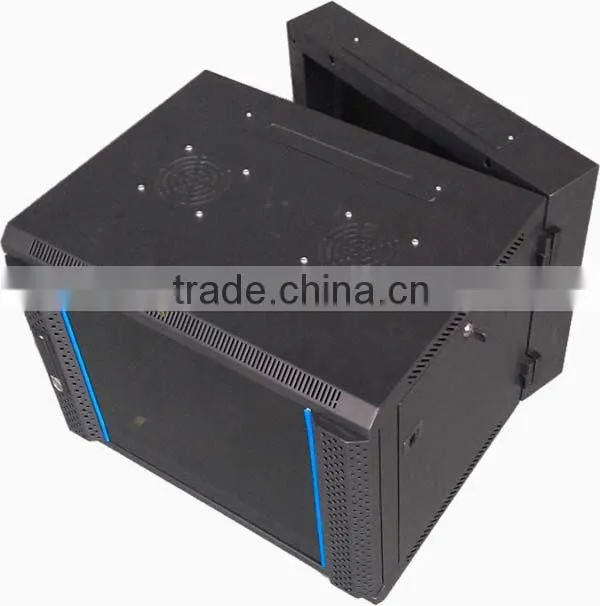

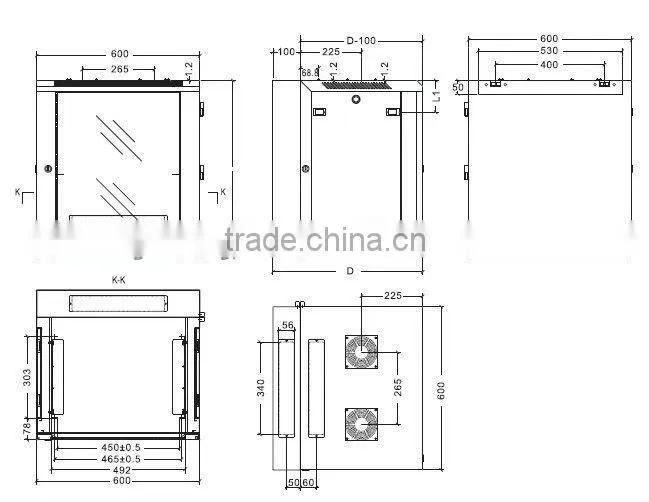

Pictures for your reference:

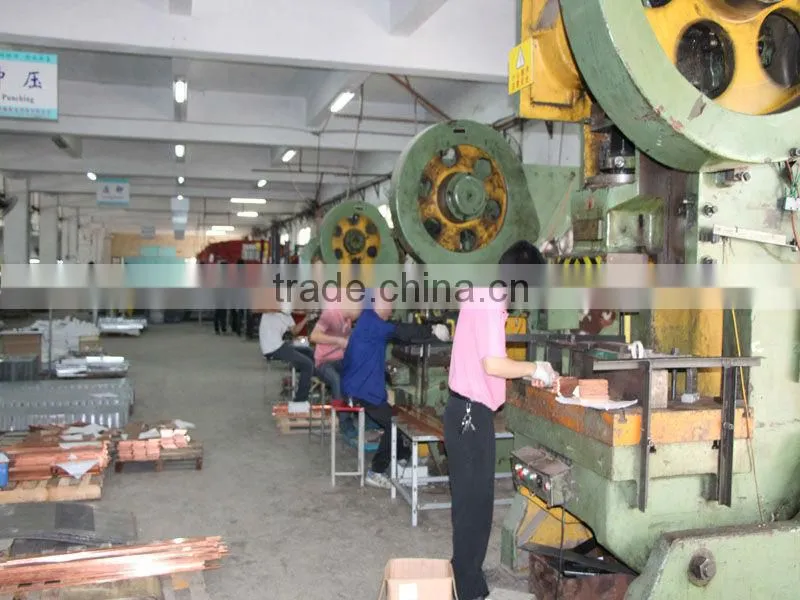

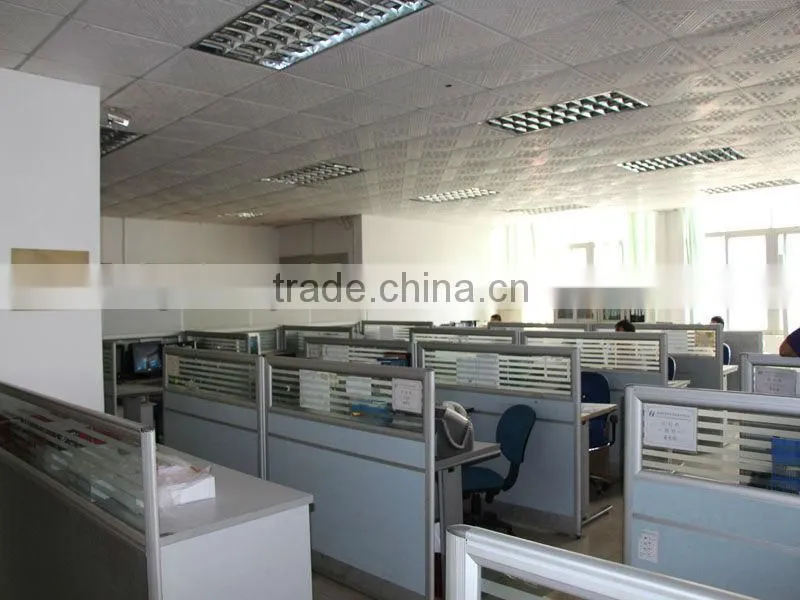

Some pictures of our factory:
