Outdoor Weatherproof Electrical Box

Specifications

                             outdoor weatherproof electrical box

  industrial control box , fiber optic telecom box,industrial box pc, telecom control power box,industrial storage box, industrial distribution box, industrial power  box, telecom box, telecom distribution box, electrical telecom box,outdoor telecom box,optical telecom box,telecom terminal box,network telecom cabinet,optical distribution box
industrial switch box, industrial metal box, industrial outlet box, industry control box, industrial power distribution box, industrial power socket box, industrial electrical power distribution box, handheld control boxes, waterproof control box, plc control box, control panel box, electrical control box, quad control box, plastic control box, outdoor control box, temperature control box, generator control box, IP55 control box,control box enclosures,control box enclosures,electric control box,Outdoor control box,metal control box,control box manufacture

Specification:

 1.Single or double-open door optional, with opening angle up to 130 degrees. The door can be swapped             around, making it convenient to change a left-open door to right-open type.

2. Folding waterproof tank designed and welded into a whole frame, which is waterproof and dustproof.

3. Front door adopts polyurethane foam sealant or two pieces of embedded waterproof tapes, ensuring reliable sealing.

4. . Two pieces cable slots are welded on both sides of the front door with vertical attitude, managing cables, meanwhile enhancing door strength. Cable slots punched with Ø3.3mm holes, making it convenient for fixing harness with M4 self-tapping screws.

5.  Cable entry (with cover) designed on the bottom panel. Equipped with sealed rings, the entry cover can be uninstalled for punching holes fast and conveniently.

6. Rear panel with mounting ears, making wall mounting easily. IP degree: IP 55.

7.  The installing panel adopts fast-install design,  installation depth is adjustable. Independent installation mode makes the working conveniently, electronics components can be well deployed before installing the panel into the cabinet.

8. Standardized accessories, enabling  all accessories of FY-AE series are interchangeable.

9. Customizations based on customer requirements are welcomed; various kinds of specifications and structure adjustment are available.

Surface treatment:  Degreasing, Pickling, Phosphating, Cleaning, Drying, Powder coating

Material:  SUS stainess steel; High quality SPCC (cold rolled steel)

Thickness:  1.5mm to 2.5mm

Surface color (optional): RAL 7032 or RAL 7035 (Grey)

Products image:

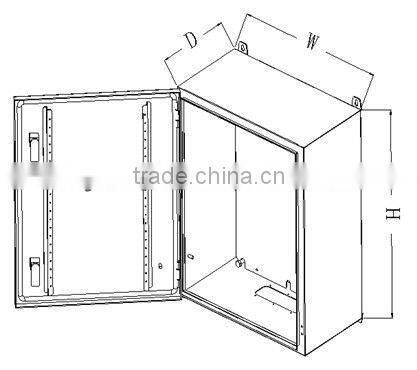

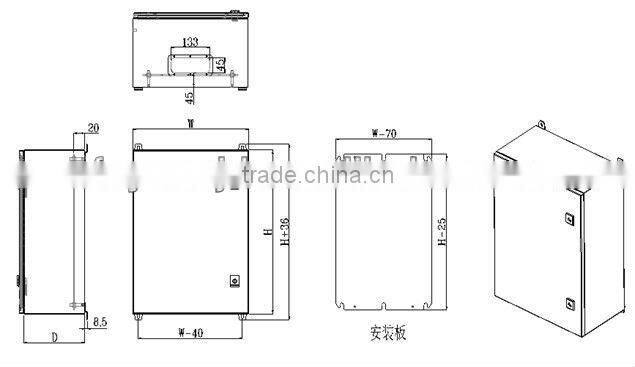

 Design drawing:

Why choose us?

1. 100% manufacturer selling

2. Wholesale/ Customize sample/OEM are available

3. Competitive price

4. High product quality, strict quality control

5. Fast Delivery: 20 working days after receipt of 30% deposit

6. Best service !

Brief Introduction to FuYuan Electric Machinery Equipment CO.Ltd.

• Established in 2002
• Specialize in manufacture all kinds of international standard 19 inch inner installation network and server cabinets, Electrical and outdoor cabinets, Fibers products and so on.
• Offer OEM and ODM service for global customers.
• Occupies an area of 30,000 square meters, there are more than 300 workers.
• With advanced facilities of cutting, punching, folding, welding, painting and testing machines.
• Passed ISO 9001, ISO 14001 and GB/T28001 systems
• Strong designing and sales team, Designing team can design several kinds of new styles every season and a lot of hot sell styles for our customers every year
• Client base include Emerson, Ericsson, Foxconn, ZTE, SUNSEA etc famous enterprises
• Warmly welcome customers from home and abroad to establish cooperation and create a bright future with us together.
