Help CenterWaterproof Server Cabinet Rack
Related Products
Specifications
waterproof server cabinet rack1> 19 inch inner installation.
2> 4 sections server rack.
3> loading: 800-1000KGs
server rack 27u
9u network cabinet, waterproof network cabinet, outdoor network cabinet, 20unetwork cabinet, 24u network cabinet, odf network cabinet, 47U server cabinet, network switch cabinet, electric cabinet outdoor, 19inch server cabinet, power server cabinet, network server cabinet, cabinet 37U, Network cabinet, server cabinet, 19inch server network cabinet, SPCC server cabinet, network cabinet with locks, 9folded server cabinet, server network rack cabinet, Perforated server cabinet rack, 9folded server cabinet rack 32u , apc home network cabinet
Specification:
1> Comply with ANSI/EIA; RS-310-D;IEC297-2;DIN41491;PART1;DIN41494;PART7;GB/T3047.2-92 stand;compatible with ETSI standard.
2>The frame is made of nine folds structure and welded by special 3-Tree .The whole configuration is firmed and the static load is 1000Kgs.

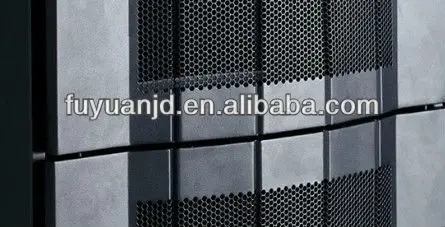

3> 4 sections of High density vented front doors and double section rear doors make the vented area no less than 65% of the door area,the exquisite apprence.
4>The side door can be installed and uninstalled quickly which make the working conveniently.
5>The cabinet can be installed castor and adjustable feet at one time which makes the moving and fixing easy.
6> The door hinge is interchangable,top cable entry hole with rubber cover.
7>The depth is adjustable(take 25MM as unit),the hight of the capacity is adjusable(take 1U as unit).
9> We can manufacture the cabinet according to the customer special requirements also.
8>Optional accessories.
Fixed Shelf ,keyboard tray, sliding shelf
Light kit; earthing kit
Brush for cable entry and other design
Plywood pallet or paper pallet;
Surface finish
degreasing,phosphating,power coating.
Material
SPCC cold rolled steel
Thickness
mounting angle is 2.0MM,the others are 1.2-1.5MM.
Color
RAL 9004 Black or RAL 7044 Grey
Size:
Width: 600mm/800mm;
Depth: 600mm/ 800mm/ 900mm/ 960mm/ 1000mm
Height: 18/22/27/32/35/37/42/47U
Why choose us?
1. 100% manufacturer selling
2. Wholesale/ Customize sample/OEM are available
3. Competitive price
4. High product quality, strict quality control
5. Fast Delivery: 20 working days after receipt of 30% deposit
6. Best service !
Brief Introduction to FuYuan Electric Machinery Equipment CO.Ltd.
- Established in 2002
- Specialize in manufacture all kinds of international standard 19 inch inner installation network and server cabinets, Electrical and outdoor cabinets, Fibers products and so on.
- Offer OEM and ODM service for global customers.
- Occupies an area of 30,000 square meters, there are more than 300 workers.
- With advanced facilities of cutting, punching, folding, welding, painting and testing machines.
- Passed ISO 9001, ISO 14001 and GB/T28001 systems
- Strong designing and sales team, Designing team can design several kinds of new styles every season and a lot of hot sell styles for our customers every year
- Client base include Emerson, Ericsson, Foxconn, ZTE, SUNSEA etc famous enterprises
- Warmly welcome customers from home and abroad to establish cooperation and create a bright future with us together.
