800*1000 19" Server Rack Cabinet 42U | 19" server rack | 19" server rack cabinet
Specification:
1> Comply with ANSI/EIA; RS-310-D;IEC297-2;DIN41491;PART1;DIN41494;PART7;GB/T3047.2-92 stand;compatible with ETSI standard.
2>The frame is made of nine folds structure and welded by special 3-Tees .The whole configuration is firmed and the with the maximum 1000KG of the static load.

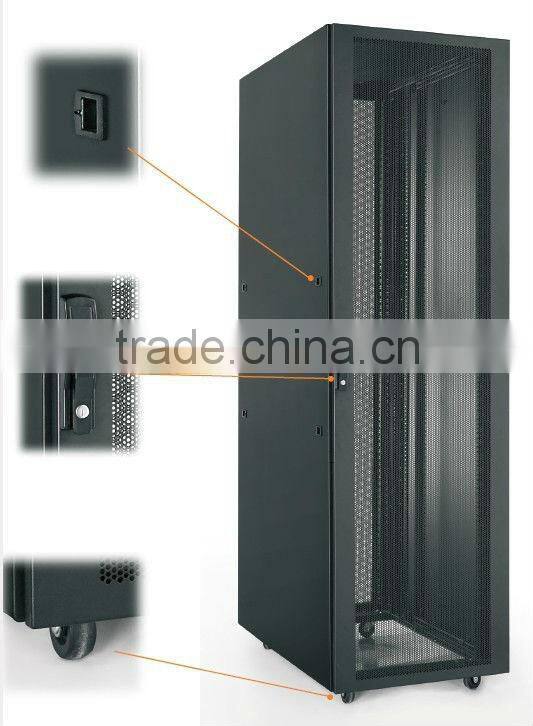

3>High density vented single front door and double section rear door make the vented area no less than 65% of the door area.The front door can choose international fashion color of tempered glass.
4>The side doors are convenient for disassembled and assembled.
5>Universal castors combined with fixed support feet providing convenient movement and stable installation.
6> The door hinge is interchangable,top cable entry hole with rubber cover.
7>The depth is adjustable(take 25MM as unit),the height of the capacity is adjusable(take 1U as unit).
8>Optional accessories.
9> We can manufacture the cabinets according to the customer's special requirements as well.
Surface treatment:
Degreasing,phosphating,powder coating.
Material:
High quality cold rolled steel (SPCC)
Thickness:
Mounting profile: 2.0MM
The others: 1.2-1.5MM.
Color:
RAL 9004 Black or RAL 7035 Grey

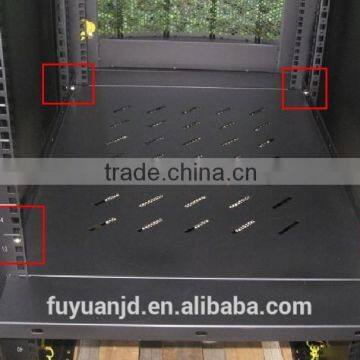

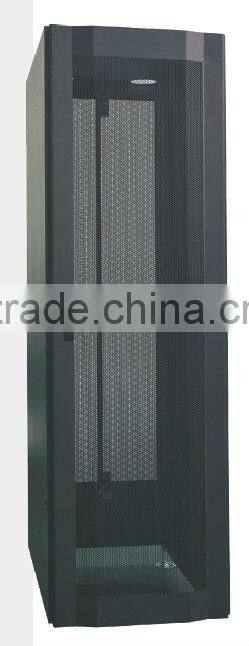

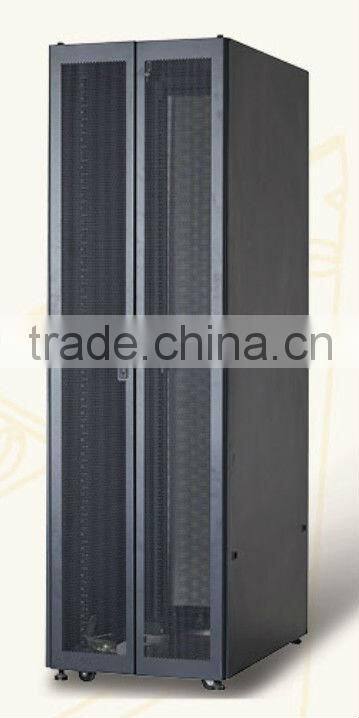

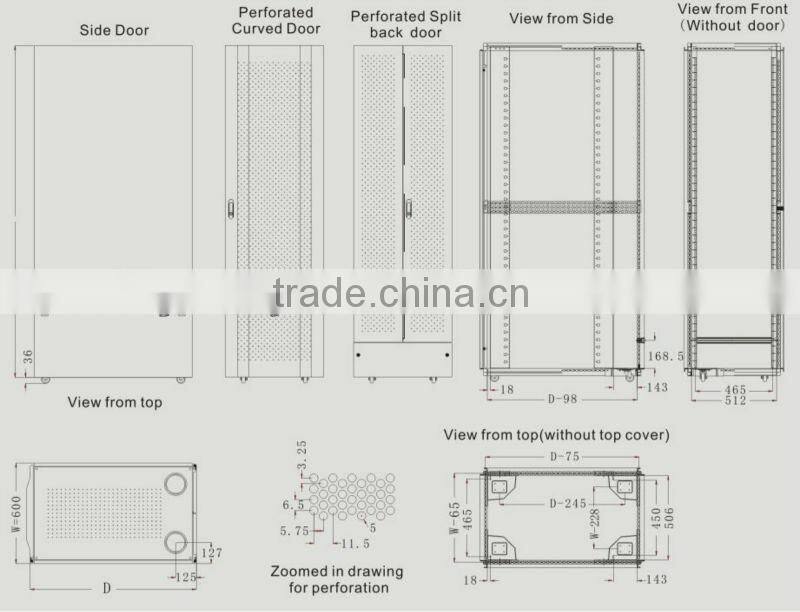

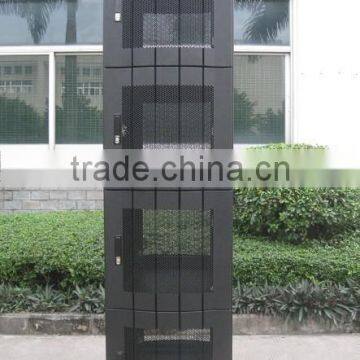

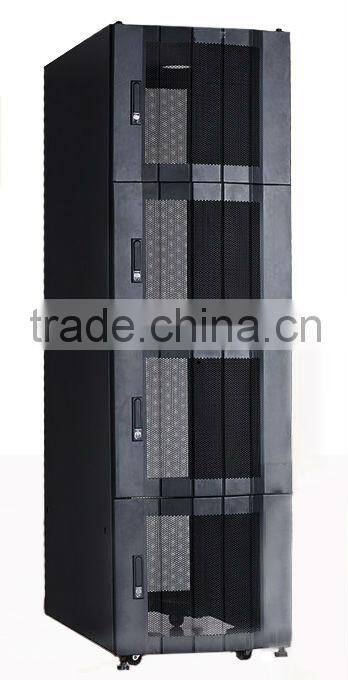

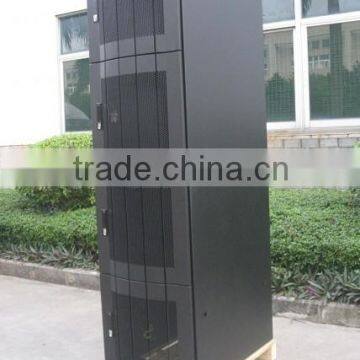

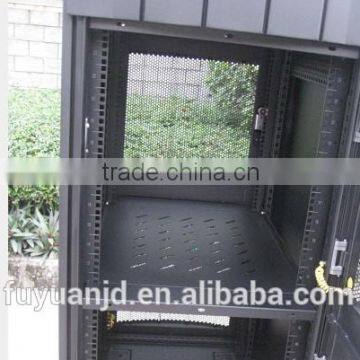

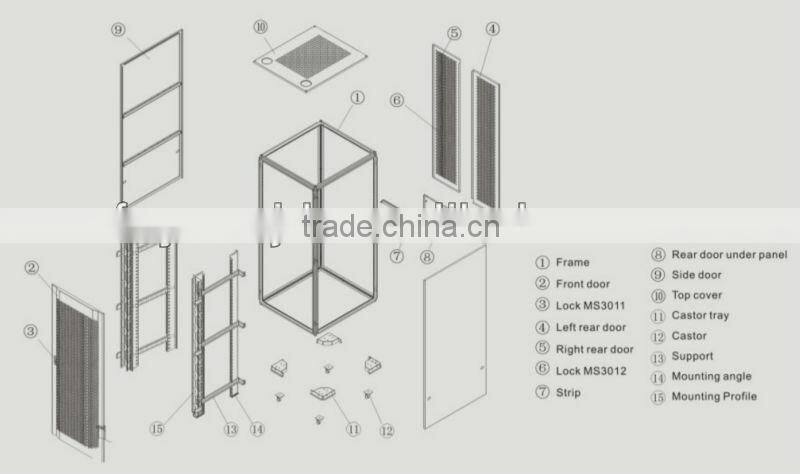

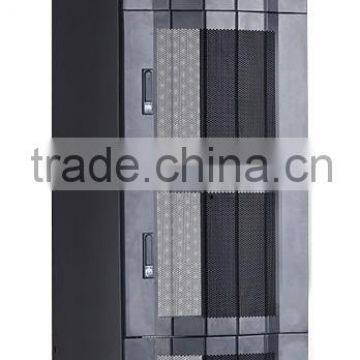

Some pictures for your reference:
Each cabinet packed in a K=K carton.
1> Film around the spareparts.
2> EPE corner protectors in the 4 corners of carton.
3> K=K high quality cartons with strip.
1. 100% manufacturer selling
2. Wholesale/ Customize sample/OEM are available
3. Competitive price
4. High product quality ,Strict quality control
5. Fast Delivery: 20 working days after receipt of 30% deposit
6. Best service.
Shenzhen Fuyuan Electric Machinery Equipment Co., Ltd
- Established in 2002
- Specialize in manufacture all kinds of international standard 19 inch inner installation network and server cabinets, Electrical and outdoor cabinets, Fibers products and so on.
- Offer OEM and ODM service for global customers.
- Occupies an area of 30,000 square meters, there are more than 300 workers.

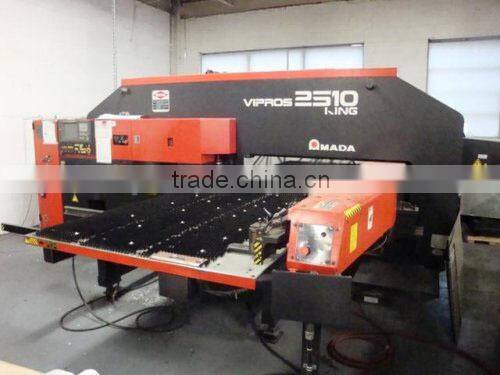

- With advanced facilities of cutting, punching, folding, welding, painting and testing machines.
- Passed ISO 9001, ISO 14001 and GB/T28001 systems
- Strong designing and sales team, Designing team can design several kinds of new styles every season and a lot of hot sell styles for our customers every year
- Client base include Emerson, Ericsson, Foxconn, ZTE, SUNSEA etc famous enterprises
- Warmly welcome customers from home and abroad to establish cooperation and create a bright future with us together.
...
