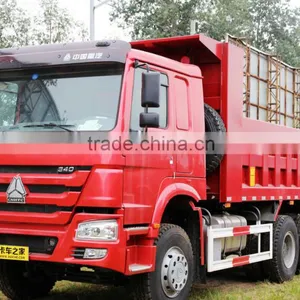

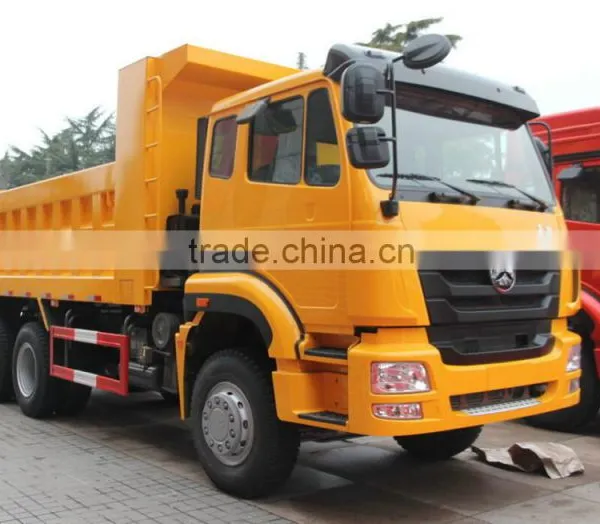

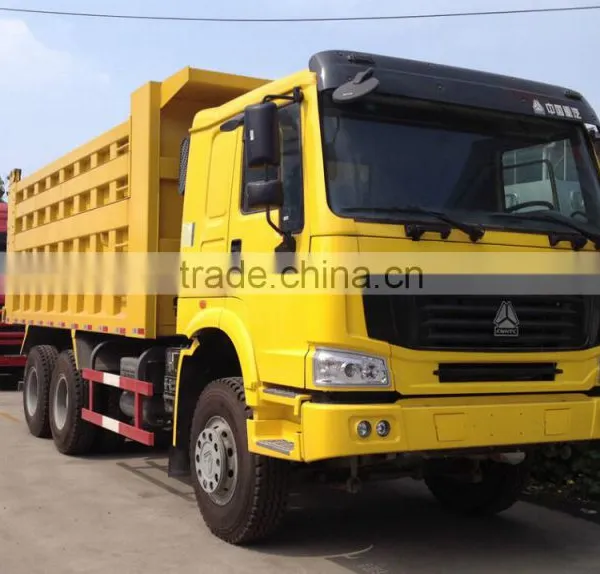

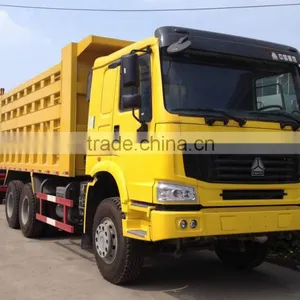

Heavy Duty 10 Wheels Sinotruck 6*4 Dump Truck Quality Choice

Name: Heavy Duty 10 Wheels Sinotruck 6*4 Dump Truck Quality Choice
Brand: Sinotruck
SKU: 123693135

US$ 38,950 - 43,650 MOQ: 1 Set

Key Specifications

Drive Wheel:

6x4

Capacity (Load):

21 - 30t

Horsepower:

351 - 450hp

Liangshan CIMC Dongyue Vehicles Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any Port of China

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Capacity (Load) 21 - 30t

Horsepower 351 - 450hp

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Gross Vehicle Weight 10500

Place of Origin Shandong, China

Brand Name Sinotruck

Model Number ZZ3257N3847 (LHD)

Dimensions (L x W x H) (mm) 8545x2496x3450

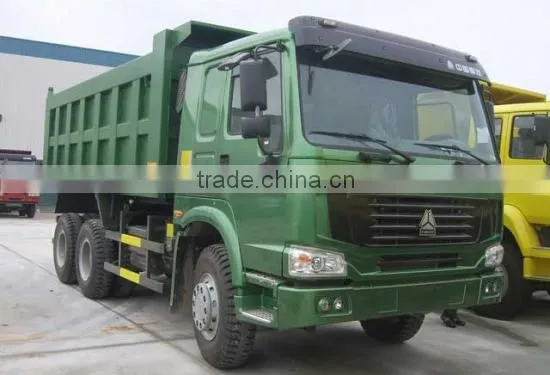

Heavy Duty 10 Wheels Sinotruck 6*4 Dump Truck

Product Description

Heavy Duty 10 Wheels Sinotruck 6*4 Dump Truck --- Specification

Truck Model	ZZ3257N3847 (LHD)
Truck Brand	SINOTRUK –HOWO
Driving Style	Left Hand Driving
Dimension(Lx W x H)(mm)	8545x2496x3450
Cargo body size (LWH, mm)	5800x2300x1500 20m3
Cargo thickness(mm)	Bottom:8mm, Side:6mm
Lift type of Carriage	Front side
Approaching angle/Departure angle(°)	19/23
Overhang(front/rear) (mm)	1500/1870
Wheel base (mm)	3825+1350
Max speed(km/h)	75
Minimum turning circle (m)	20
Curb weight(kg)	12430
Loading Weight(kg)	25000-30000
Fuel tanker capacity(L)	300
Fuel consumption(L/km)	28L/100 km
Clutch	Single-plate dry clutch Φ430mm
Fuel type	Diesel
Horse Power	420HP
Emission	EURO II
Engine Model	D12,water-cooled,four strokes,6 cylinders in line with water cooling , directly injection
Bore	126mm
Stroke	130mm
Compression ratio	29.8hp/l
Specific fuel consumption	195g/kwh
Transmission	HW19710,10 forwards and 2 reverse
Service brake	Dual circuit compressed air brake
Parking brake	spring energy, compressed air operating on rear wheels
Auxiliary brake	Engine exhaust brake
Model	ZF8098 hydraulic steering with power assistance
Front axle	HF9 , Steering with double T-cross section beam
Rear axle	HC16, Casting axle housing, central double reduction with differential locks between axles and wheels
Color	Optional (White ,Red ,yellow )
Tyre	12.00-20, bias tire,10+1spare
Electrical system	2X12V/165Ah,28V-1500kw,7.5Kw/24V
Cab	HOWO76 cab, single sleeper with air conditioner, with 4-point support fully floating suspension and shock absorbers
