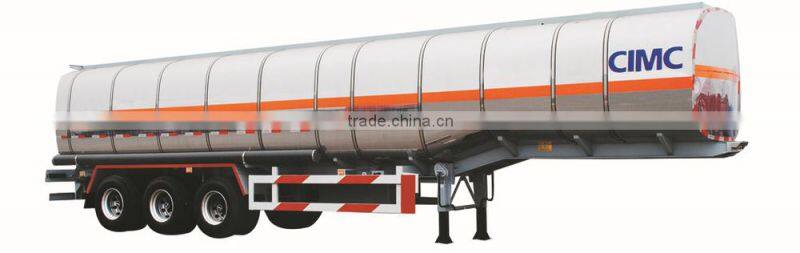

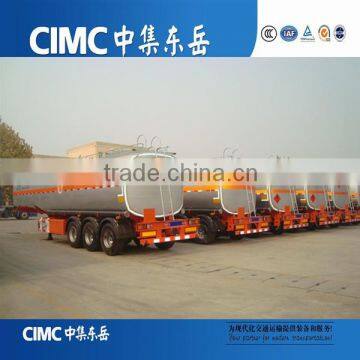

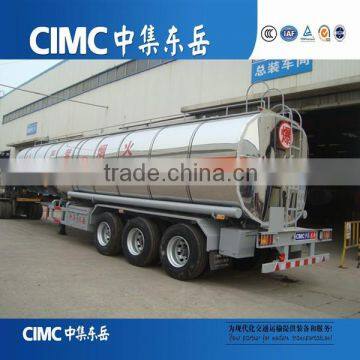

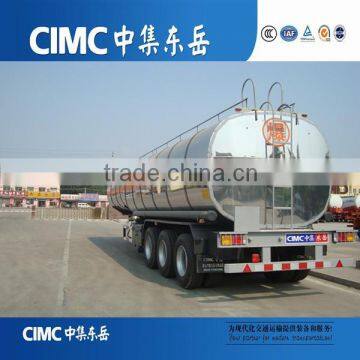

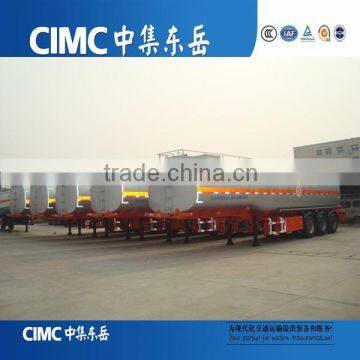

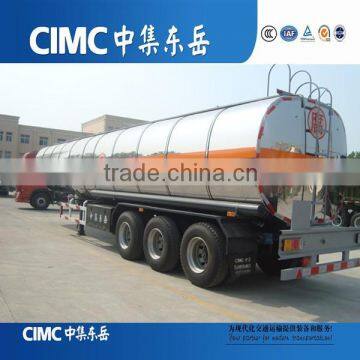

CIMC stainless steel chemical liquid transport tank semi trailer

Type

CIMC Manufacture40cbm Fuel Tanker Semi Trailer

Overall Dimension

13,000x2,500x3,800mm

Thickness

Tank body: 6mm

End plate: 6mm

Wave-proof plate: 4mm

Volume

40m³

Axle

Fuwa brand, 3*13ton

Compartments

3 compartments

Manhole cover

2 sets with 2 breath valves

Discharge Valve

2 Sets, 3 inch.

Discharge pipe

4 inch seamless steel tube

Suspension

CIMC Standard Suspension

Emergency valve

4 inch bottom valve, 1 set

Steel Spring

10/10/10

Tire

Tri-angle brand, 1100R20-16, 12 pcs

Rim

8.0, 12 pcs

King pin

90mm or 50mm

Landing Gear

CIMC Standard 28T

Brake system

2 line pneumatic brake system.

Type 30/30 spring brake system on two axles.

ISO type air coupling at front of the semi-trailer.

Without ABS.

Brake chamber

4 Double, 2 Single

Electrical system

Chinese standard 24V; 7 ways receptacle; LED lamps

Side Guard

Side protection guards on both sides.

Spare Tire Bracket

2 pcs

Color and Marking

Comply with the customer’s requirement
