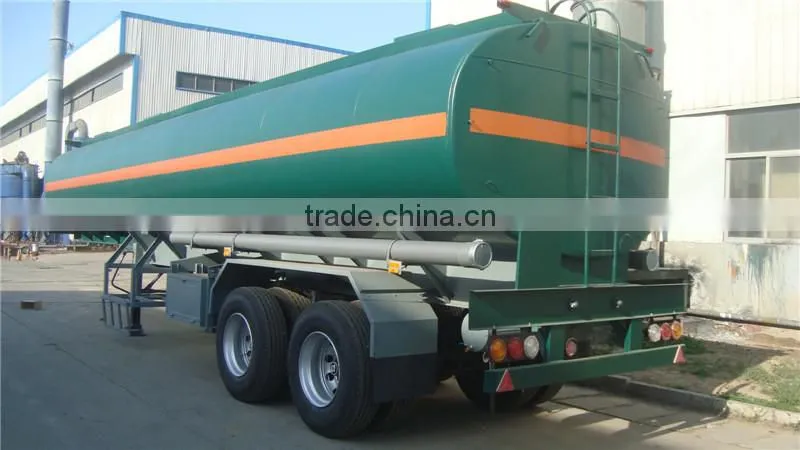

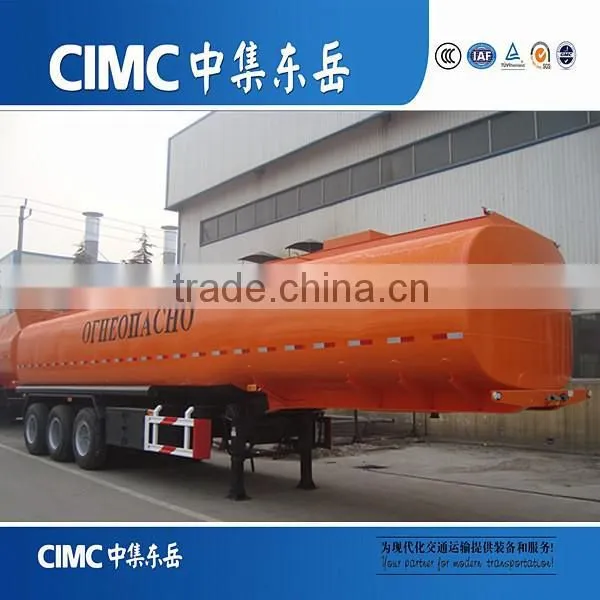

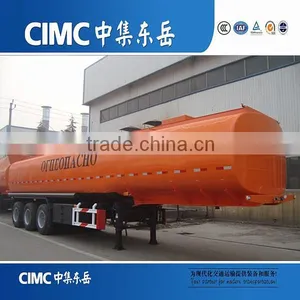

CIMC Widely Used Tow Behind Tank Transporting Semi Trailer

Name: CIMC Widely Used Tow Behind Tank Transporting Semi Trailer
Brand: CIMC
SKU: 123681675

US$ 23,000 - 30,000 MOQ: 3 Sets

Key Specifications

Type:

Semi-Trailer, CIMC Widely Used Tow Behind Tank Transporting Semi Trailer

Material:

Aluminum / Alloy

Certification:

Liangshan CIMC Dongyue Vehicles Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Material Aluminum / Alloy

Certification CE

Size 12,500x2,500x3,800mm

OEM No. CIMC Widely Used Tow Behind Tank Transporting Semi Trailer

Max Payload 50 ton

Place of Origin Shandong, China

Brand Name CIMC

Model Number CIMC Widely Used Tow Behind Tank Transporting Semi Trailer

CIMC Widely Used Tow Behind Tank Transporting Semi Trailer

Product Description

CIMC Widely Used Tow Behind Tank Transporting Semi Trailer ------ Specification

Type	CIMC Manufacture 38cbm Fuel Tanker Semi Trailer
Overall Dimension	12,500x2,500x3,800mm
Thickness	Tank body: 6mm End plate: 6mm Wave-proof plate: 4mm
Volume	38m³
Axle	Fuwa brand,3*13ton, 2 axles with ABS
Compartments	2 compartments
Manhole cover	2 sets with 2 breath valves
Discharge Valve	2 Sets, 3 inch.
Discharge pipe	4 inch seamless steel tube
Suspension	CIMC Standard Suspension
Emergency valve	4 inch bottom valve, 1 set
Steel Spring	10/10/10
Tire	Tri-angle brand, 12R22.5, 12 pcs
Rim	9.0, 12 pcs
King pin	90mm or 50mm
Landing Gear	CIMC Standard 28T
Brake system	2 line pneumatic brake system. Type 30/30 spring brake system on two axles. ISO type air coupling at front of the semi-trailer. Without ABS.
Brake chamber	4 Double, 2 Single
Electrical system	Chinese standard 24V; 7 ways receptacle; LED lamps
Side Guard	Side protection guards on both sides.
Spare Tire Bracket	2 pcs
Colour and Marking	Comply with the customer’s requirement
