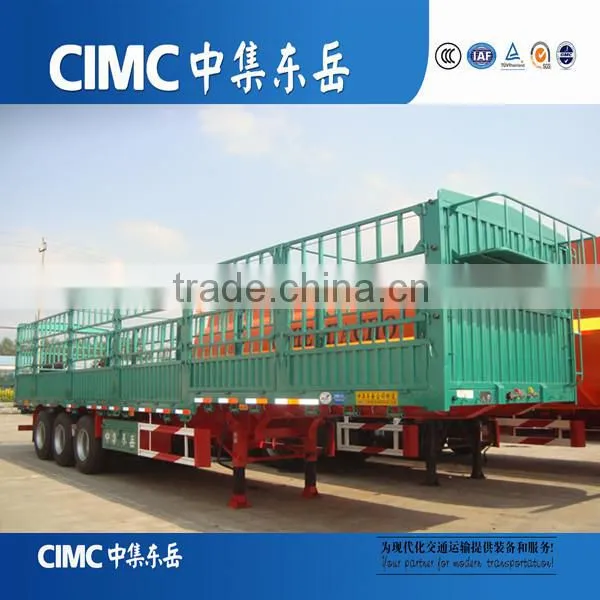

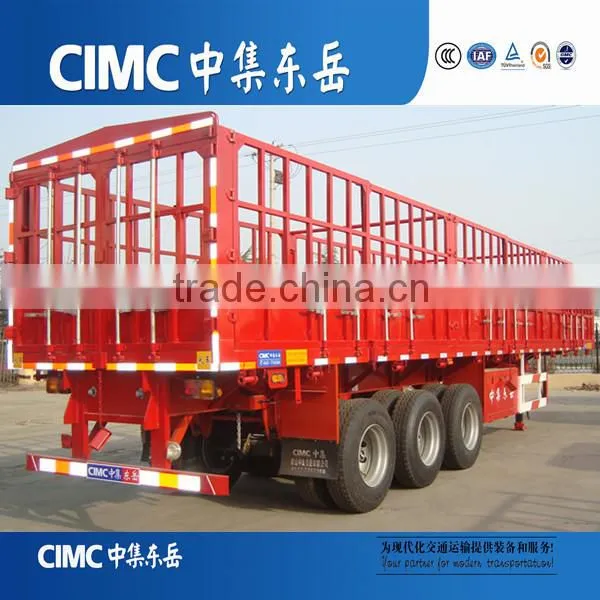

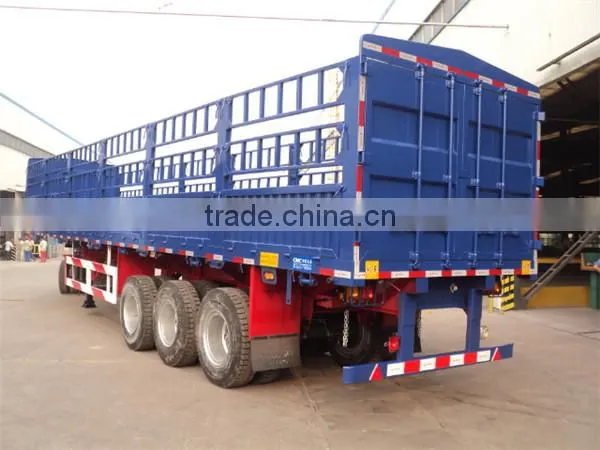

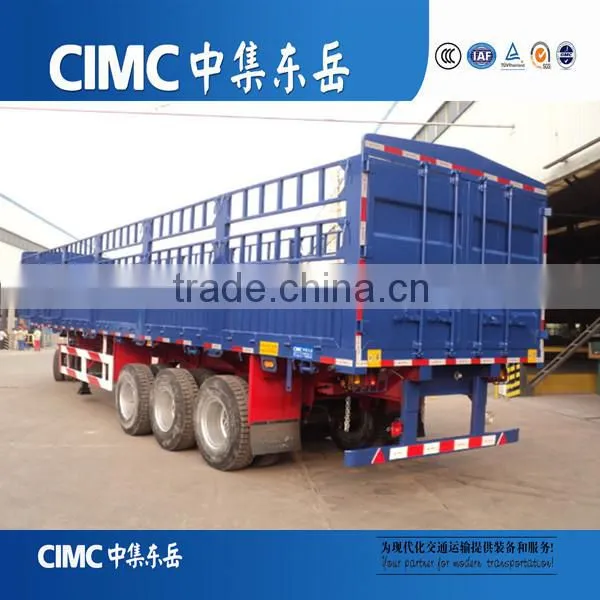

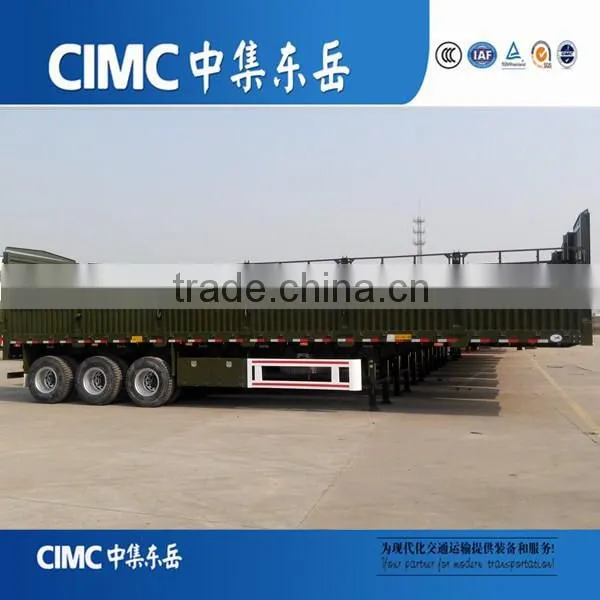

Tri Axle Side Wall High Bed Trailer With Semi Trailer Door

Name: Tri Axle Side Wall High Bed Trailer With Semi Trailer Door
Brand: CIMC
SKU: 123678291

US$ 10,000 - 16,500 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

CIMC

Model Number:

Tri axle side wall high bed trailer with semi trailer door

Liangshan CIMC Dongyue Vehicles Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any Port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name CIMC

Model Number Tri axle side wall high bed trailer with semi trailer door

Tri axle side wall high bed trailer with semi trailer door

Product Description

Tri axle side wall high bed trailer with semi trailer door ---- Specification

SPECIFICATIONS

Dimension	Length	12,920mm*	Maximum Gross Weight		35,000kg*
	Width	2,500mm*	Maximum Payload		43,000kg*
	Height	2,203mm*	Tare Weight		8,000 kg*
The Kingpin Height		1,250mm*	Axle Loading Distribution
Front Overhang		1,303 mm *	Fifth Wheel Load	Empty	3,317kg*
Rear Overhang		2,408mm *		Full	17,830kg*
Wheel Space		1,310 mm*	Rear Axle Load	Empty	4,682kg*
Kingpin To The First Axle		7,500mm*		Full	25,170kg*
Tires		11R20	The Number Of Tires		12
SPECIAL FEATURES

1. Steel construction: All chassis adopts the high-tensile steel

2. Running system: Axles and suspensions system are complied with international standards.

3. Brake system: Adopt the international brands.

4. Electric system: China famous brands.

5. Shot blasting twice and particular coat painting can guarantee the quality of the chassis surface.

6. The vehicle has multi-functions; it can be used as cargo semi-trailer, stake trailer.

7. The vehicle is mainly use for transfer loose cargo

8. The vehicle equipped high side wall which could offer a lot of choice for our client.
