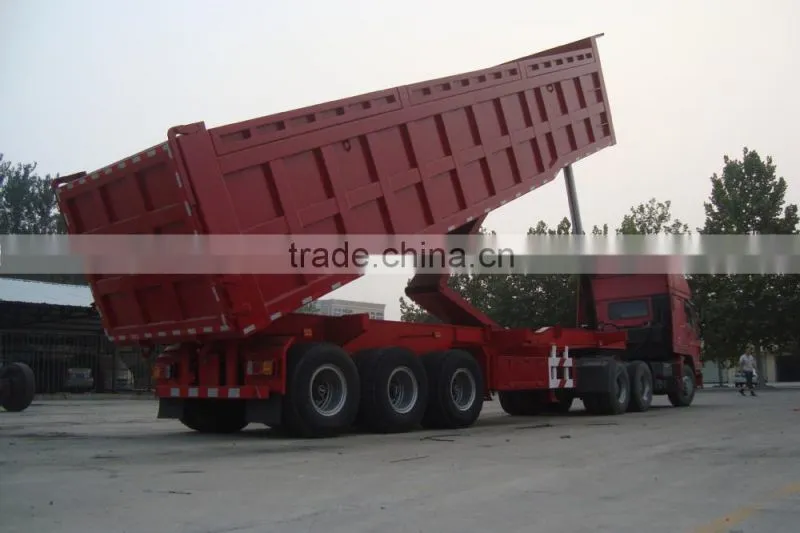

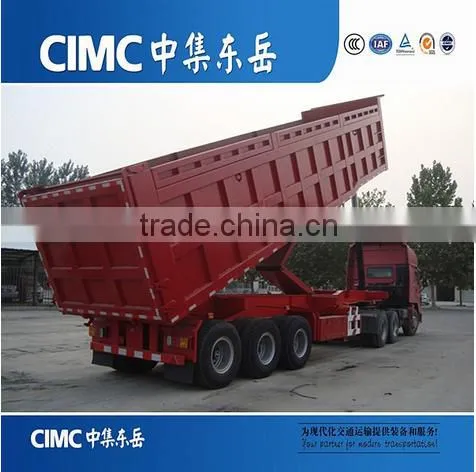

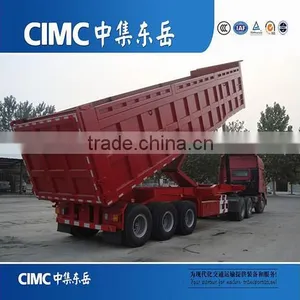

CIMC widely used hydraulic lifting 3 axle tipper semi trailer
CIMC widely used hydraulic lifting 3 axle tipper semi trailer ------- Specifications
Type |
CIMC widely used hydraulic lifting 3 axle tipper semi trailer |
Overall dimension |
Total :10500*2500*3300mm Box Size :10,500*2,500*1,700mm |
Main beam |
Beam height: 500mm Upper plate : 16mm Double Middle plate : 8+8mm Down plate : 18mm |
Side beam |
18# U-shape steel 18# |
Platform thickness |
6mm |
Side wall thickness |
4mm |
Material |
T700 |
Max payload |
Approx. 70ton |
Gross vehicle weight |
Approx. 14ton |
King pin |
90# |
Land gear |
JOST Brand |
Axle |
FUWA brand, 3*16T |
Suspension |
Normal Suspension |
Thicken leaf spring |
10/10/10 |
Tire |
Zhengxin brand, 1200R22.5, 12 pcs |
Rim |
6.5, 12 pcs |
Brake Val |
WABCO |
Brake Chamber |
6 Double |
Spare wheel carrier |
2 pcs |
Tool box |
1 pcs |
Electrical System |
Chinese standard 24V lighting system |
Side Marker Lamp |
LED Lamp LED |
Marking and Color |
By customer’s requirement |

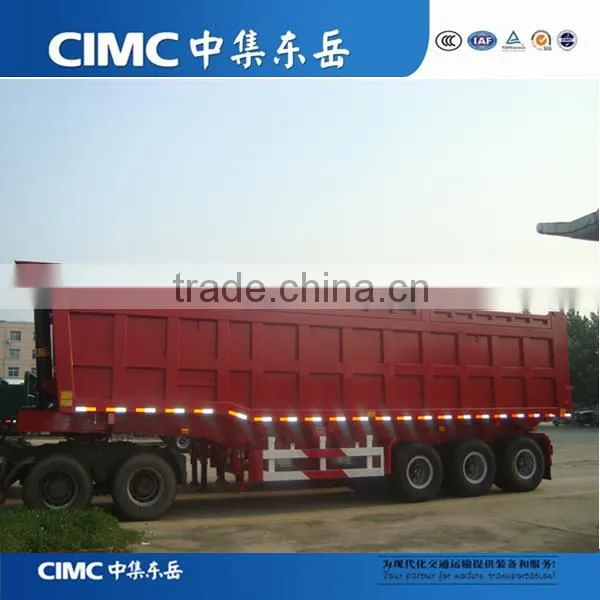

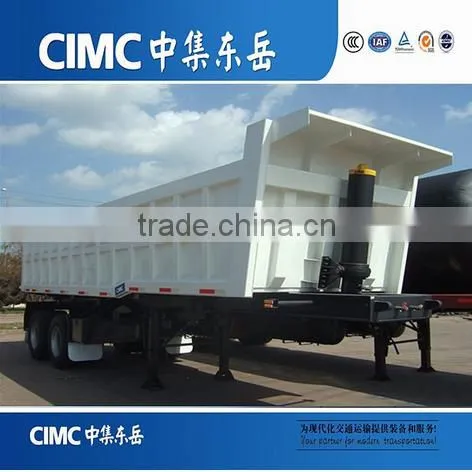

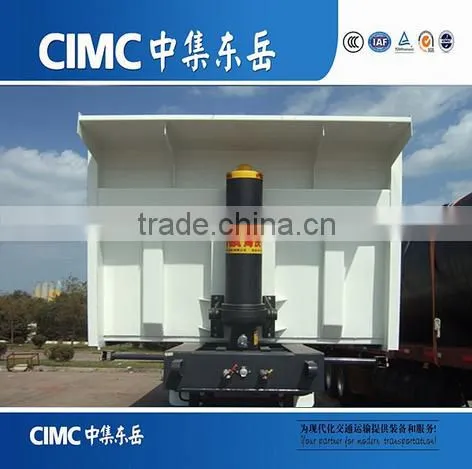

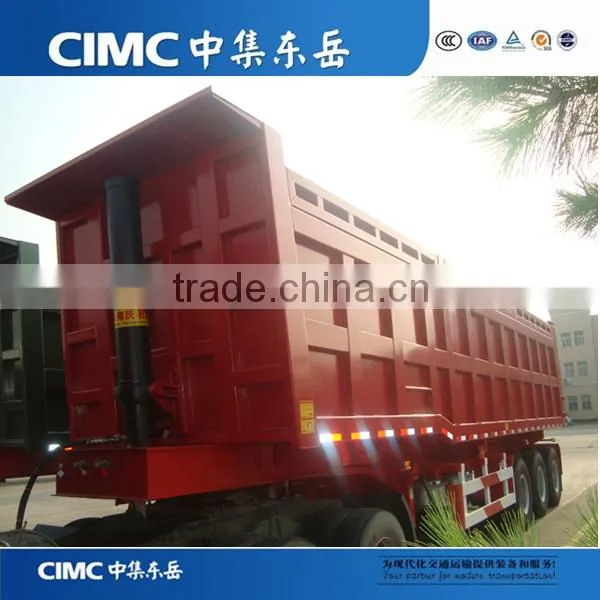

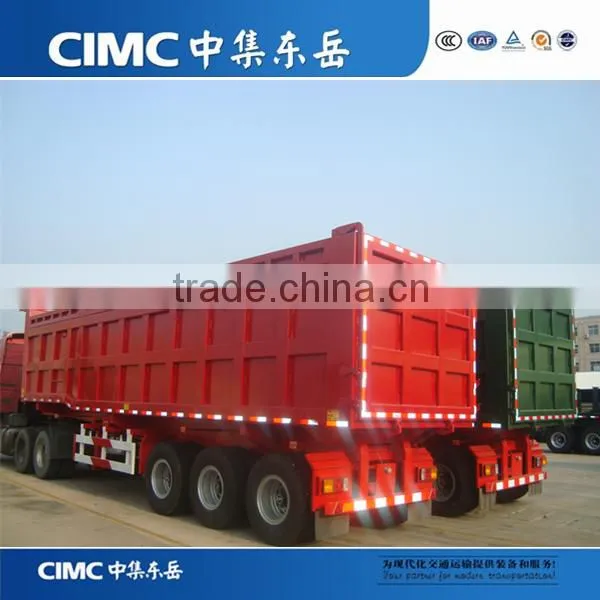

CIMC widely used hydraulic lifting 3 axle tipper semi trailer ------- Details

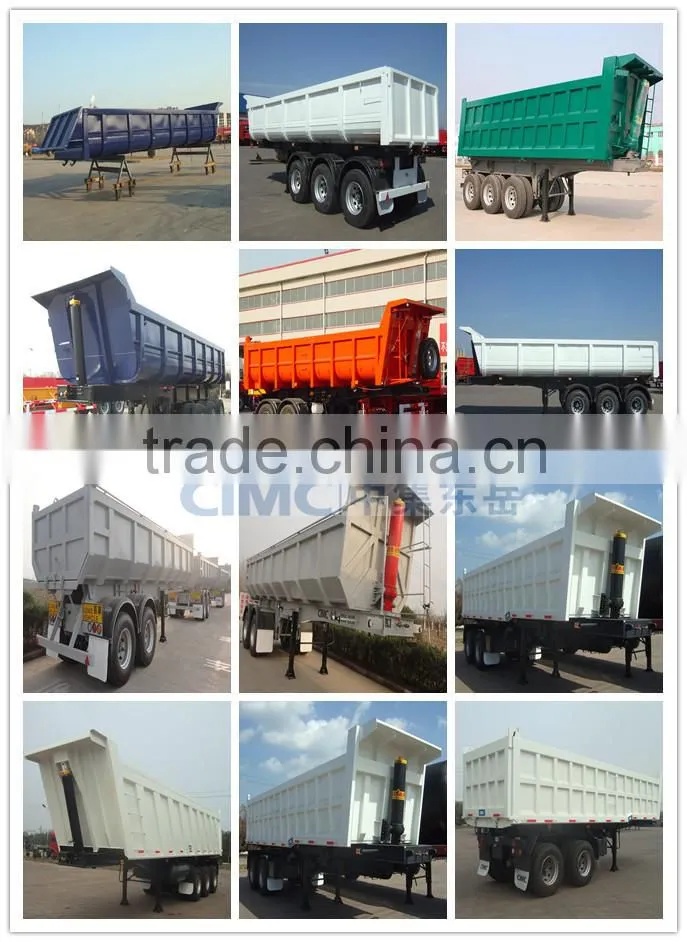

CIMC widely used hydraulic lifting 3 axle tipper semi trailer ------- Main Products

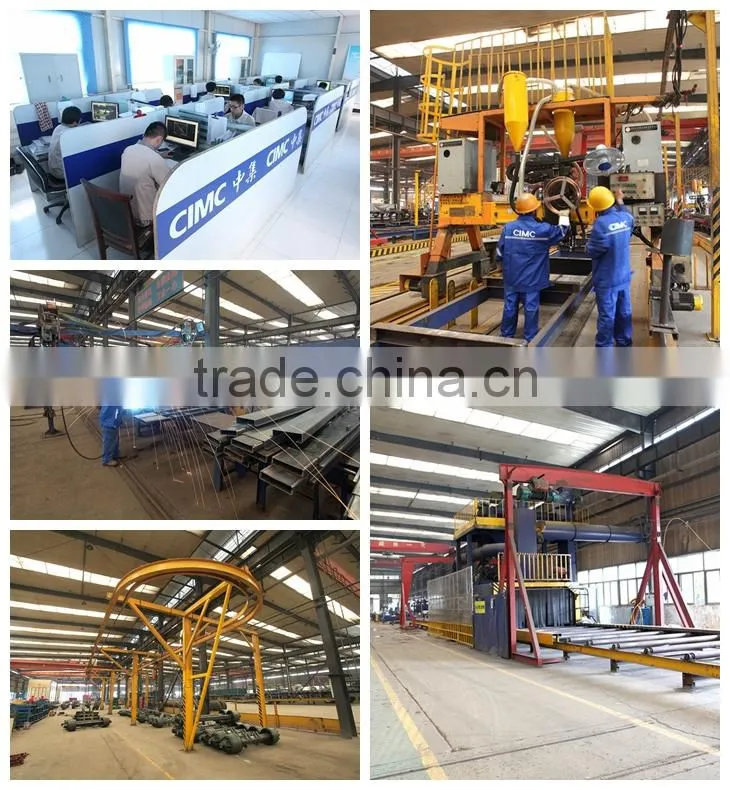

CIMC widely used hydraulic lifting 3 axle tipper semi trailer ------- Manufacture Equipment
CIMC widely used hydraulic lifting 3 axle tipper semi trailer ------FAQ
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by CIMC group,
every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied
during the whole producing process to ensure the welding quality.
