CIMC 3 Axles 60 Ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer

CIMC 3 Axles 60 Ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer photo-1
CIMC 3 Axles 60 Ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer photo-2
CIMC 3 Axles 60 Ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer photo-3

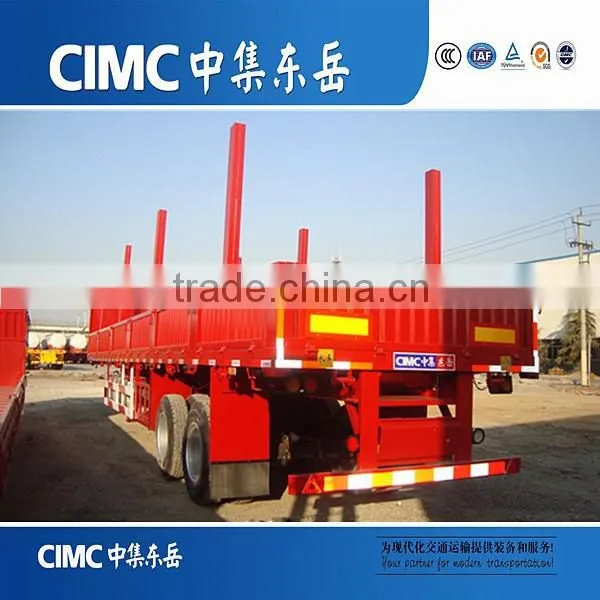

CIMC 3 Axles 60 Ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer photo-4

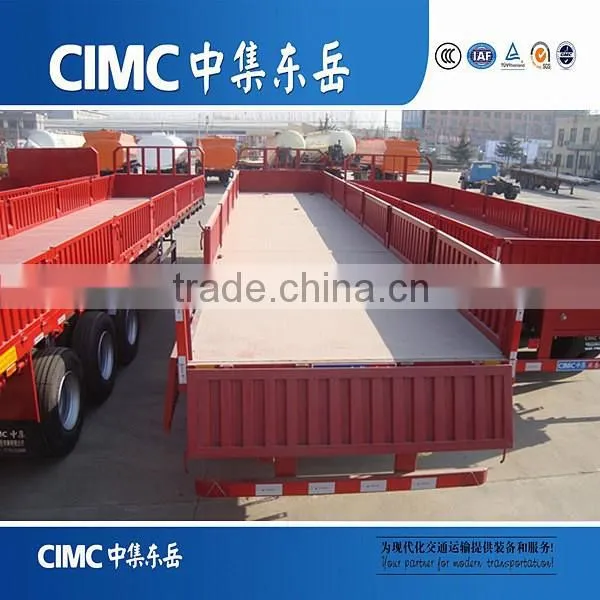

CIMC 3 Axles 60 Ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer photo-5

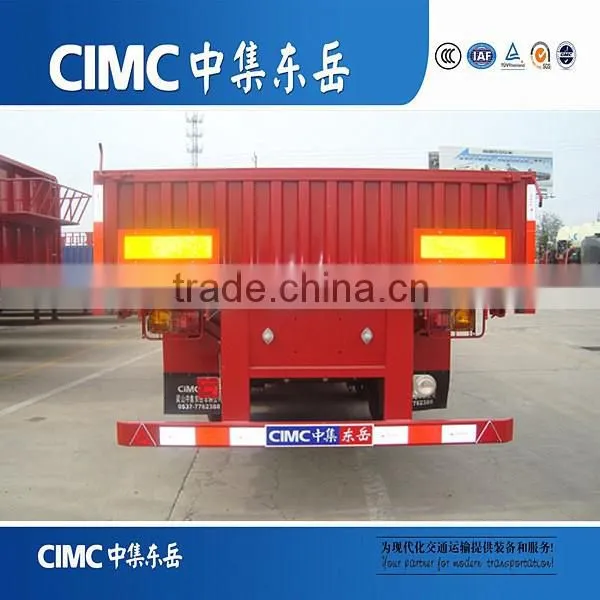

CIMC 3 Axles 60 Ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer photo-6
US$ 11,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
OEM No.:
CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi
Max Payload:
60 TON
Size:
13000 *2500 * 600mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
OEM No. CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi
Max Payload 60 TON
Size 13000 *2500 * 600mm
Place of Origin Shandong, China
Brand Name CIMC
Model Number CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi

CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer

CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer

Product Description

CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer ------- Specification

Main specification

type

CIMC direct factory side wall semi trailer

Loading Weight

60 Ton

Overall dimension

13000 *2500 * 600 mm

Loading weight

60ton

Main beam

The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.

Side beam

16# U shaped steel

Chassis

Traction pin

90# or 50#

Land gear

JOST

Axle

13ton

Axle brand

FUWA

Suspension type

FUWA suspension

Laeaf spring

10/10/10

Tire

Triangle Brand, 12R22.5 16PR,

Side wall details

600mm height, 3mm thickness

Frame

platform thickness

3mm

Accessories

Brake

6 Double-chamber

Tool box

1 unit

Spare wheel carrier

2 units

Side marker lamp

LED type

Voltage

24V

Receptacle

7ways (7 wire harness)

Packaging & Shipping

CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer ------ Package

CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer



CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer

1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;



2. Cut the rear part which can load two sets in one 40ft container ;



3. Keep the trailer original but load two sets in one 45ft container .

Company Information

CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer ----- Main Products



 CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer

FAQ

CIMC 3 Axles 60 ton Stake Cargo Side Wall Semi Trailer, Side Wall Semi Trailer ------ FAQ

1. How do you transport the semi trailers?

We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!

3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by CIMC group,

every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied

during the whole producing process to ensure the welding quality.
