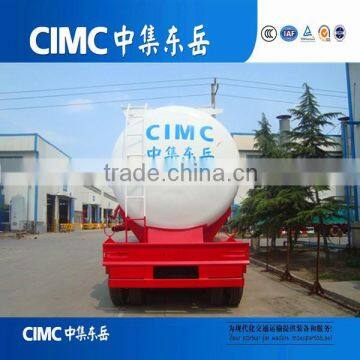

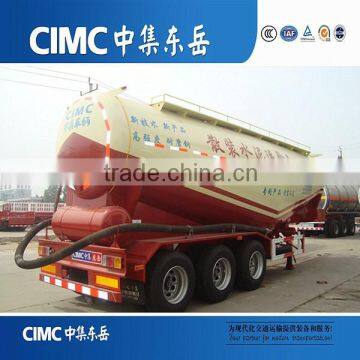

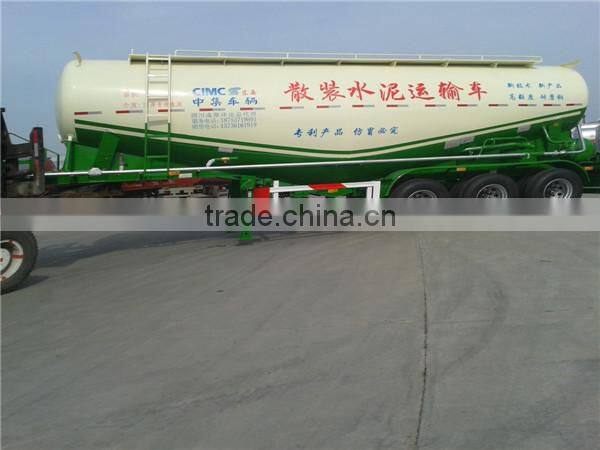

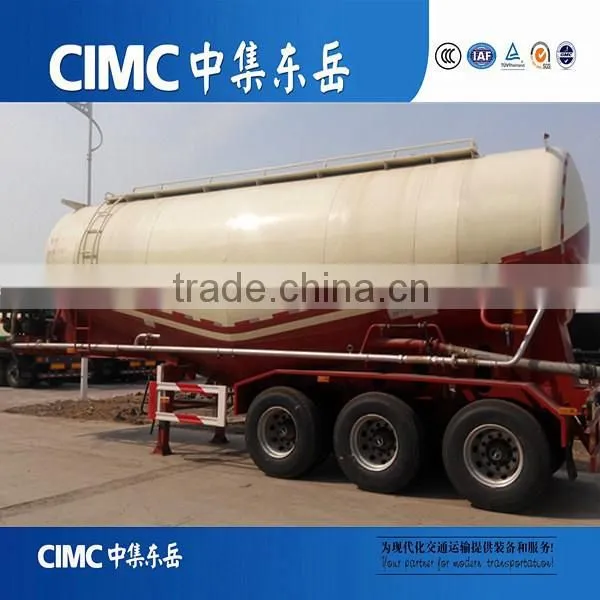

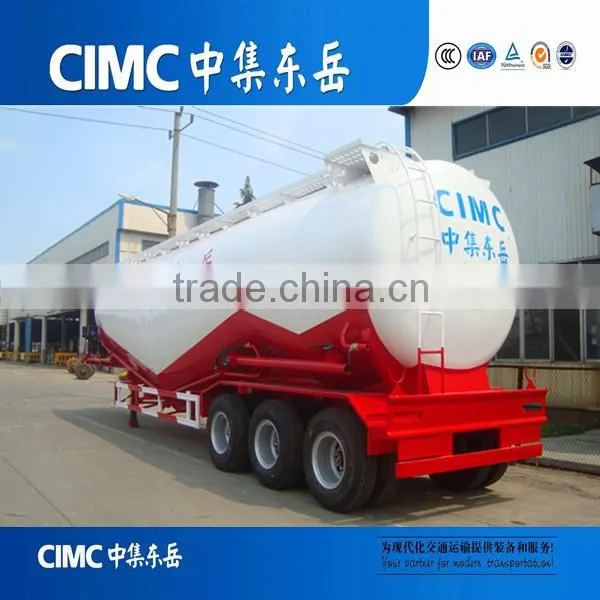

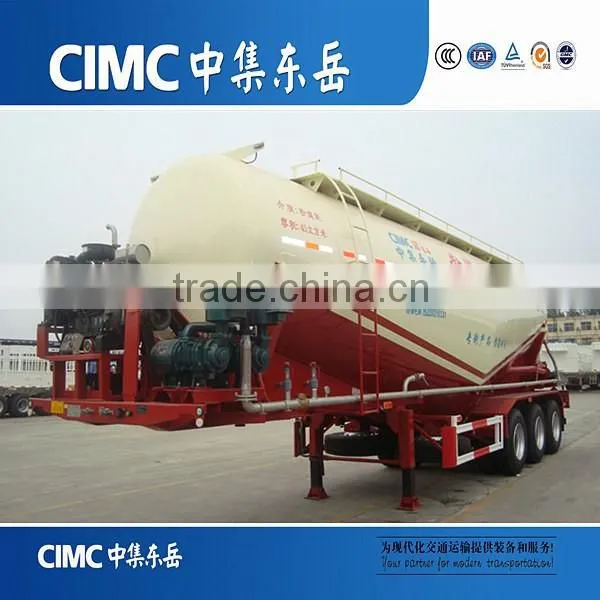

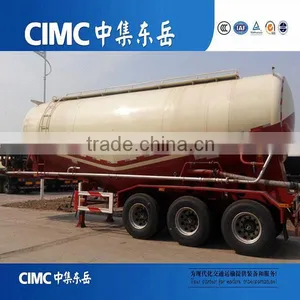

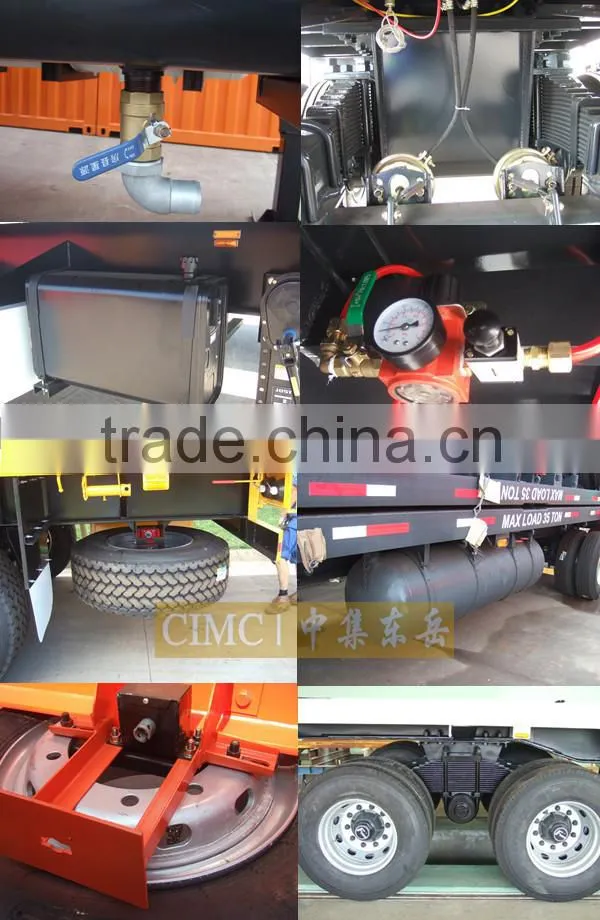

CIMC 3 Axles 50cbm Dry Bulk Cement Tanker Semi Trailer (V Type)
CIMC 3 Axles 50cbm Dry Bulk Cement Tanker Semi Trailer (V Type) ------ Specification
Overall information | |
Tare weight | 13500kg |
Loading volume | 50CBM for bulk cement |
Dimension | 12500*2500*3950mm |
Compartment | single compartments |
Tanker body | |
Material of Tank body | Q235A/4mm steel |
Material of End plate | Q235A/5mm |
Manhole cover | 500mm manhole cover 1 set |
Discharge valve | 4"disc valve |
Discharge pipe | 4"seamless steel tube |
Chassis | |
Axle | 13ton axles , 3 units Fuwa brand |
Suspension | China standard leaf spring suspension 10/10/10 |
Tire | 1100R20-16 Triangle brand 12units |
Kingpin | 2" or 3.5" for option |
Landing gear | jost 28ton type |
Braking system | 6 big chamber |
Others | |
Engine | 4120 type weichai brand |
Air compressor | 12cbm |
Air-charging system | 1.5"safe valve;0.4Mpa.gauge |
Painting | Sand blasting to clean rust, polish with lor will be according to customer’s demand. |
Accessories | |
Tool box | One piece |
Side guard | Two sides |
Electrical system | Standard 24v wire, 7 way input |
Quadratic blow | 1"diameter check valve |
Emergency valve | Wabco brand |
Outlet discharge pipe | 4"rubber hose .6m |

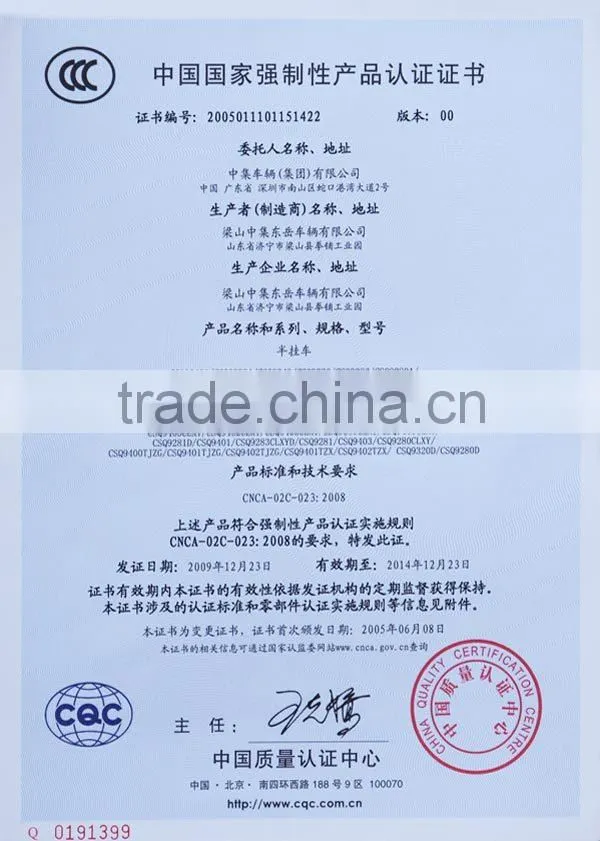

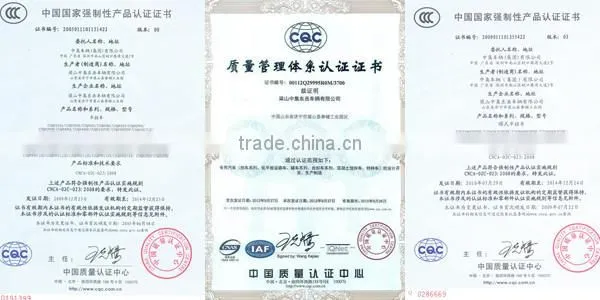

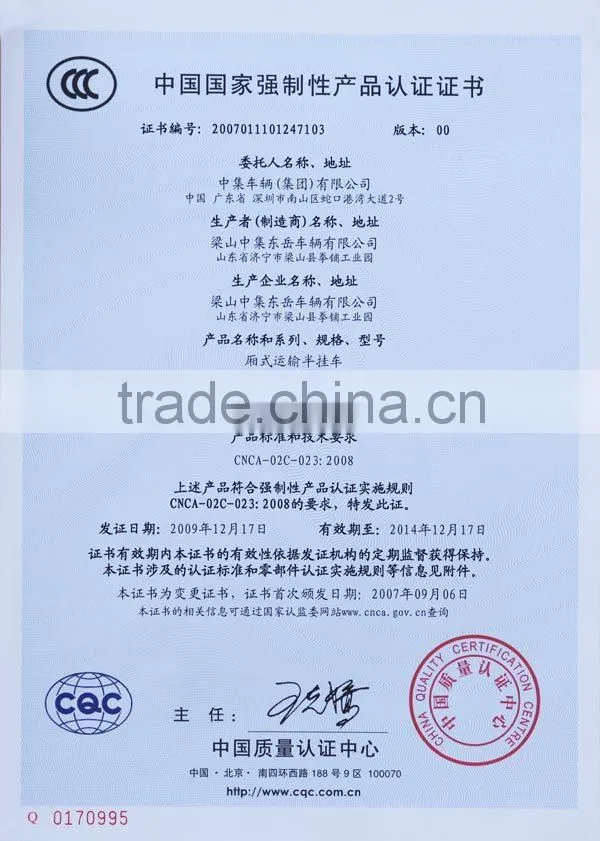

CIMC 3 Axles 50cbm Dry Bulk Cement Tanker Semi Trailer (V Type) ------ Certificates
CIMC 3 Axles 50cbm Dry Bulk Cement Tanker Semi Trailer (V Type) ------ Workshop
CIMC 3 Axles 50cbm Dry Bulk Cement Tanker Semi Trailer (V Type) ------ FAQ
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long- term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by CI MC group,
every node will be inspected strictly. Moreover, advanced equipment rather than only worker is bee n applied
during the whole producing process to ensure the welding quality.
Any question can call me or e-mail me directly.
Contact Person: Erin Chen
TEL: 0086-531-89605605
MOB:0086-150364036906
Skype: cimctrailer1
E-mail: erin.chen @
