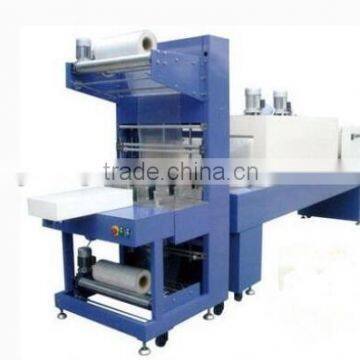

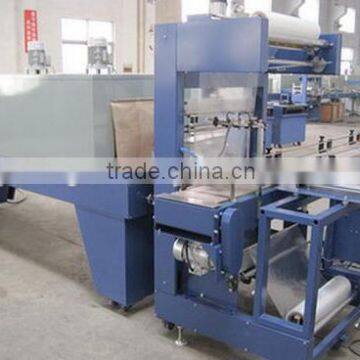

Zhangjiagang Good quality Automatic shrink wrapping machine/ bottle Shrink Packaging Machine

1). technical parameter

      facility typeWD-150A type

      facility external sizeL5050×W3300×H2100mm

      wrappage max sizeL600×W400×H350mm

      shrinkage film sizePEPVCPOF

      shrinkage thermo thickness: 0.03-0.15mm

       thermo shrinkage tunnel temperature: 160 - 260°can adjust at will.

       max output per minute8-12bag

       facility power:18Kw

       actual power:15Kw/h

       pressure requirement: 380/220V

       facility weight: 1.2T

       fan machine: 1.1Kw  2set 380V, 65W  4set  380V

2. technical condition and requirement:

     1.package type

        (1).350/500/550/600ML big bag4×6,4×5 ;small bag3×4,3×5 four type of package.

        (2).1L1.5L2L2.5L big bag3×3,3×4;small bag2×2,2×3 four type of package

      2. Regarding can, we suggest adopt to package with tray, pack steadily.

      3. package speed815bagmin

       et with pre-treatment filling speed of filling machine.

       (1) 350/500/550/600ML big bag4×6,4×5,(1200015000bhrsmall bag3×5,3×4,(800010000bhr.

       (2)1L1.5L2L big bag3×4,3×3(50006000b small bag2×3,2×230004000bhr.

     5.package material: PE thermo shrinkage film width200600mm,thickness0.080.12mm

  3. solution

         according production line, auto arrange, and combine our company WD-150A automatic

  sealing and cutting mature structure, as the machine fracture.

     the production line can match with any company filling device. For it stability, the production line

 main component all adopt to import, joint venture famous brand.

     if pre-treatment filling machine output is comparatively high, can divide two-way, auto seal and cut at the same time, to meet with output requirement, among WD-150A fracture has original creation, it is the highest-efficiency, highest economical collocate at the same time.

PE film adopt to flake, upper and down roll, auto seal and cut to roll type and   up to shrinkage efficiency,

4. production procedure

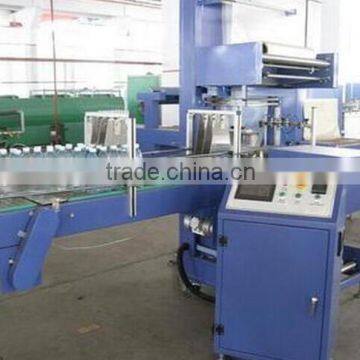

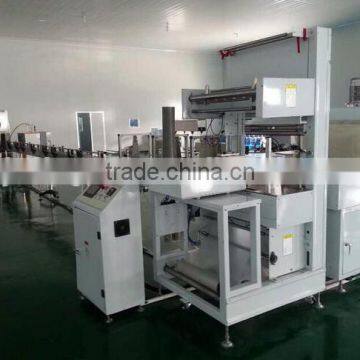

     Wrappage from single-line 90°change to multi-line  again divide 1234 line via bottle division board, via the front 1234 bottle separately reach photoelectric inspection, convey belt stop, place-limit gas-cylinder work, wrappage was conveyed to cutting and sealing machine to seal and cut, wrappage was conveyed to contraction machine to contract via convey device, again convey to stock rack via cooling convey belt, when the first bag convey to contraction machine, the second bag auto arrange, then conveyed to sealing and cutting machine via pushing cylinder, again repeat the first bag recycle procedure.

5. criterion collocation function three part

 1.WD-150A auto convey fracture; joint filling machine convey belt, divide two passage or one passage, control via frequency converter, speed adjust freely, can auto divide and sort bottles .

 2.WD-150A automatic film wrappage fracture, cam complete wrappage auto film covering and sealing, cutting function.

3.WD-150A auto thermo shrinkage cooling fracture, can auto contraction and cooling function after film covering.
