aseptic equipment/plant equipment/processing line/water filler line/water producing machine
- 10 Set / Sets per Month
- shanghai
- T/T
-
automatic machine/drink bottling plant/bottling plant/beverage machinery/bottling plant
-
small plant/pure water processing line/bottling plant/aseptic line/bottling plant
-
pure water machine/sealing equipment/filling water lines/water bottling line/water production line
-
bottling plant/manufacturing line/mineral water line/auto bottling line/automatic water filler
-
production machine/automatic making machine/bottle cap machine/filling bottle machinery
-
water bottling line/water plant line/automatic water filler/bottled water plant/bottled water
Product Details
| Condition: | New | Application: | Beverage | Packaging Type: | Other |
| Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 220V/380V/415V/440V | Power: | 5-15kw | Place of Origin: | Jiangsu, China |
| Brand Name: | kingwan | Model Number: | XGF | Dimension(L*W*H): | 2200X2100X2200MM |
| Weight: | 2000-5000kg | Certification: | CE SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden
Product Description
aseptic equipment/plant equipment/processing line/water filler line/water producing machine
Main Features
1. The water filling machine is automatic.It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.
2. Washing part in the bottle water machine is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
3. Filling part in the water filling machine is composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.
4. Capping part in this water filling machine is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Main Technical Parameters
Model | Washing heads | Filling heads | Capping heads | Capacity(b/h) 500ml | Motor power (KW) | Overall dimension (mm) |
CGF14-12-5 | 14 | 12 | 5 | 4000 | 1.5KW | 2100x1400x2500 |
CGF18-18-6 | 18 | 18 | 6 | 6000 | 2.2KW | 2460x1720x2650 |
CGF24-24-8 | 24 | 24 | 8 | 10000 | 3.5KW | 2700x2100x2650 |
CGF32-32-10 | 32 | 32 | 10 | 12000 | 5.5KW | 3200x2500x2650 |
CGF40-40-10 | 40 | 40 | 10 | 16000 | 7.5KW | 4300x1800x2650 |
CGF50-50-12 | 50 | 50 | 12 | 20000 | 9.5KW | 5200x4500x3400 |
CGF60-60-15 | 60 | 60 | 15 | 25000 | 12KW | 6200x4500x3400 |
Main Pictures

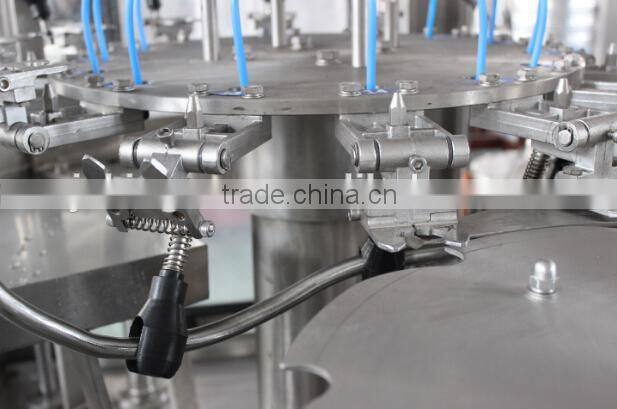

washing part

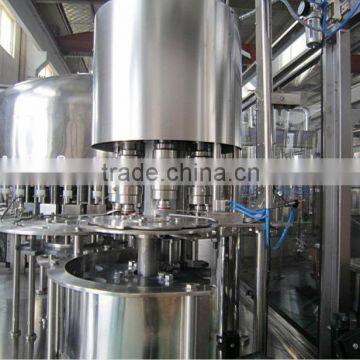

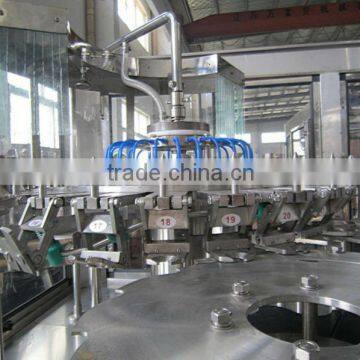

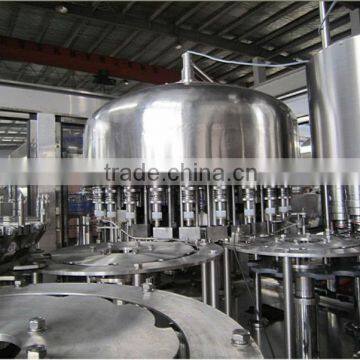

filling part

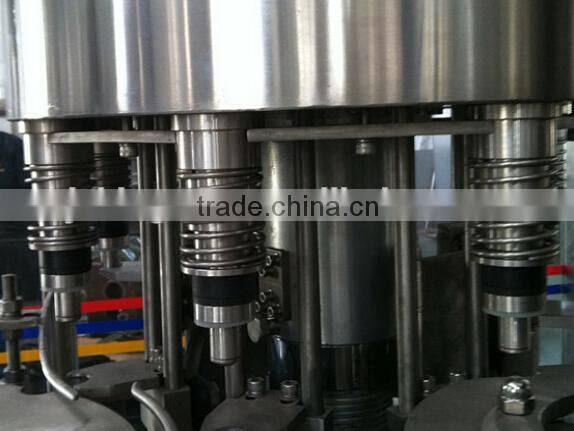

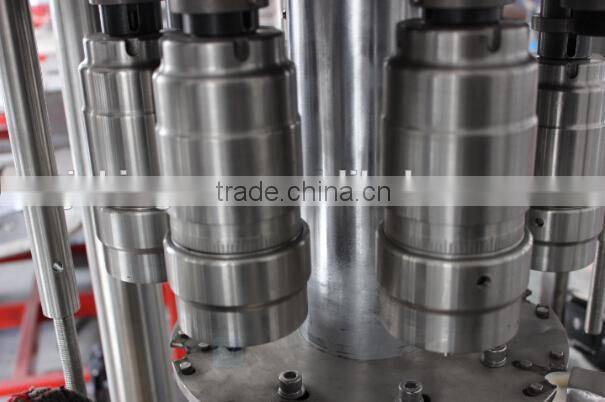

capping part
Our Service
One year warranty for the whole system .
Free equipment installation and debugging.
After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.
We can provide internship service and help you train the operator and mechanic.
Free production technology and process configuration.
We can help you to design the product line , workshop and provide turn-key project.
Contact information
Website:
WhatsApp/Tel:008613962267321
Skype:Kingwan8881
Alibaba TradeManager :cn1514722664vksi
water filling machine water filling machine water filling machine
water filling machine water filling machine
water filling machine water filling machine
water filling machine water filling machine
water filling machine water filling machine
Company Profile
Jiangsu kingwan Machinery Co., Ltd. is committed to the development of beverages, plastics machinery, hardware, electrical and mechanical equipment and other industries, specializing in concentrated beverage, plastics machinery and hardware, electrical and mechanical equipment research, development, manufacturing and sales, with the company's strong technical force and economic strength, and constantly develop new products with international advanced level of technology.
The company is headquartered in Zhangjiagang, service network throughout the country. The company implemented network management, relying on advanced computer-aided design system and computer management system, standardized operation, in the shortest possible time to provide users with high-quality products.
Companies in the technology leadership, first, customer-oriented principle to provide customers with satisfactory services.
jiangsu kingwan Machinery Co., Ltd., have Zhangjiagang City wanjin Machinery Co., Ltd. specializing in the production of beverage equipment research, production, manufacture, Zhangjiagang City Plastic Machinery Co., specialized in plastic machinery research, development, manufacture, also has engaged in Research hardware, mechanical and electrical equipment production and manufacturing.
Since its inception, proactive, innovative, with a good reputation, unique management style and strong marketing capabilities, has made one after another impressive performance. Over the years, rapid development of robust jiangsu kingWan Machinery Co., Ltd., inseparable from the industry's very best partners.
