"low investment . high output " -------
electric corn grinder machine
The effect of electric corn grinder machine
from corn to corn flour ,
from beans to bean flour
the working principle of electric corn grinder machine
It uses the disk activity and fixed means of relatively high-speed operation, make the shattered by the gear disk impact, friction and collision among the materials themselves and crushed. Material can be directly from the eduction in the grinding cavity, the discharging mouth, the general material after crushed through cotton bags to collect, shredded material collected in the bag, air from a bag of tiny hole to come out, will not be fine powder, thereby no waste, no pollution effect. By changing sieve in different mesh size.

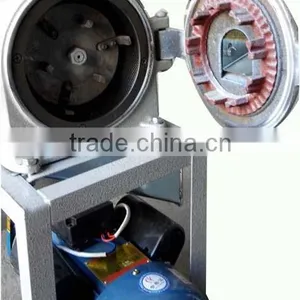

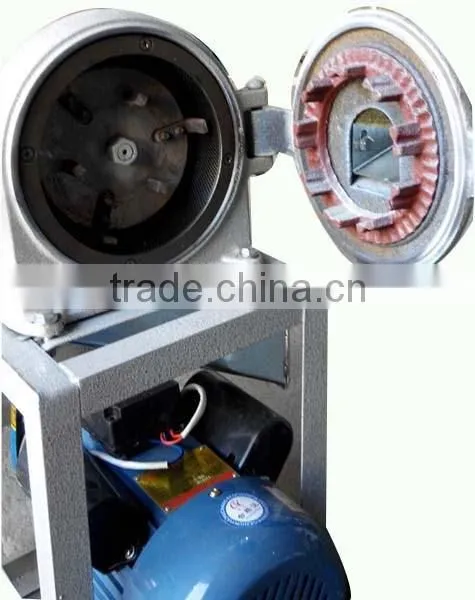

the details of electric corn grinder machine
the inlet
the tooth claws
the screen
(can be changed according the required mesh)
the outlet
the motor
Advantages
1. The new style design, the crushing is fine.
2. Energy saving, easy operation. Only one person can finish the crushing.
3. No dust, easy to clean.
the parameter of electric corn grinder machine
Model |
9FZ-15 |
rotational speed |
7200r/m |
rotor diameter |
150mm |
flat teeth number |
3 |
square teeth number |
3 |
Motor voltage |
220v 50HZ 1.1KW |
weight |
13kg |
|
capacity |
Corn:35-100kg/h Wheat: 35-80kg/h Green bean :18-30kg/h |
|
Packing size
|
540x420x410mm(the machine) 30x20x20cm(motor) |
|
Parameter
Model |
Capacity (kg/h) | Power(kw) | Weight(kg) | Size(mm) |
| 9FZ-35 | 600-800 | 7.5 | 200 | 1000X700X1100 |
| 9FZ-29 | 300-500 | 5.5 | 150 | 800X600X1000 |
| 9FZ-23 | 100-300 | 2.2 | 120 | 800X500X1000 |

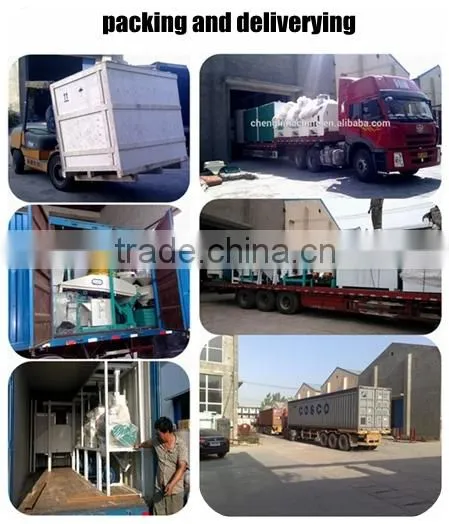

packing & delivering of electric corn grinder machine
We company, Henan Chengli Grain&Oil Machinery Co.,Ltd is a professional manufacturer of grain flour milling machines,established in 2008. In the past six years , we have made a long-term development relying on our solid techonogy, scientific management , advanced facilityas well as good after - sale service.we cooperation with Henan University of Technology which specialize in the grain processing field .
Our market: we not only have a ready market in China , but also export our products all around the world including Russia, Vietnam, the Philipines, Australia,Mexico, Bangladesh,India , Uganda, Ethiopia and so on .
·we have a group of technical person avaliable for our customers, who can be sent overseas to install the machine and train the local person to use it and maintain it.
we have one-year warrant for the machine and the parts.
if the machinery has anything problems our technical person will be available at the primal time.
Why choose us
"Actions speak louder than words"
More details about electric corn grinder machine , pls contact me !
