High pressure air blower is used to lift grains.
Low pressure air blower is used to remove light impurities.

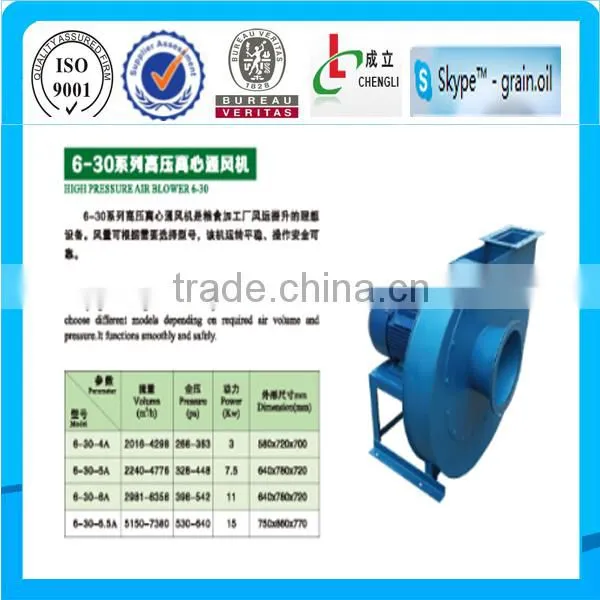

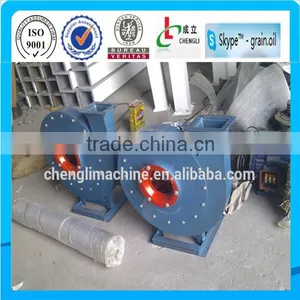

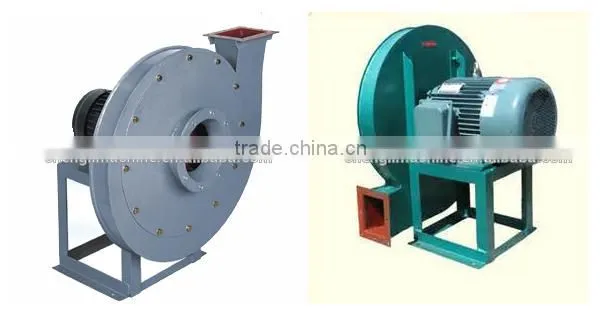

6-30 Series High Pressure Centrifugal Air Blower
Introduction:
6-30 Series high Pressure Centrifugal Air Blower is the suitable device of pneumatic conveying and lifting material in food industry and other field. You can choose different model depending on required air volume and pressure. It operates smoothly and safely.
The High Pressure Centrifugal Air Blower main model & Technical Parameter:
Parameter model | Air volume(m3/h)
| Pressure (Pa) | Power (KW) | Dimension (mm) |
6-30-4A | 2016-4298 | 266-363 | 4 | 580*720*700 |
6-30-5A | 2240-4776 | 328-448 | 7.5 | 640*780*720 |
6-30-6A | 2981-6356 | 396-542 | 11 | 640*780*720
|
6-30-6.5A | 5150-7380 | 530-640 | 15 | 750*860*770 |
Low Pressure centrifugal Air Blower
Introduction:
4-72 Series Low Pressre Centrifugal Air Blower is the suitable device for pneumatic conveying and lifting for grain plant, you can choose different model depending on required air volume and pressure. It functions smoothly and very safe.
The Low Pressre Centrifugal Air Blower main model & Technicial Parameter
Model | Volumnt(t/h) | Pressure(Pa) | Power(kw) | Dimension(mm) |
4-72-3.6A | 2664-5268 | 1578-989 | 3 | 580*720*700 |
4-72-4A | 4012-7419 | 2014-1320 | 4 | 640*780*720 |
4-72-4A | 4012-7419 | 2014-1320 | 5.5 | 640*780*720 |
4-72-4.5A | 5712-10562 | 2554-1673 | 7.5 | 750*860*770 |
Henan Chengli Grain & Oil Machinery Co., Ltd has decade years of researching, designing and producing experience, as a professional manufacturer specialized in producing grain processing machineries.CHENGLI is engaged specially in project design on grain processing factory of wheat flour and corn/maize flour. Our superior products are complete set of 30T-200T/D maize flour processing machine and wheat flour processing machine.
We are the professional manufacturer in China, We can supply the technology and service on complete set of Corn/Maize Deep-processing Machine, Maize/Wheat Flour Deep Milling machine, single Peeling machine, single Grinding machine, single Polishing machine, different kinds of Pulverizer, Separator, Classifier, Sieves and Plansifter, Centrifugal Ventilator, Pellet machine, Hammer Mill, Packing machine, Oil Refining production line, Oil Press and other machinery parts. We can supply the different designs with different cost to meet different buyer's request.
