Home > Products > High Efficiency Plansifter > 2014 FSFG Square Plansifter /flour mill equipment
2014 FSFG Square Plansifter /flour mill equipment
Negotiable
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- QingDao or as required
- T/T
You May Like
-
Low noise maize flour high square plansifter sieve FSFG in china
-
Capacity 3t-5t/h double-cabin plansifter sieve for feed flour mill in china
-
Low noise maize flour mill plansifter FSFG in china
-
Capacity 3t-5t/h double-cabin plansifter sieve for pepper flour mill in china
-
High efficiency 3t-5t/h double-cabin plansifter sieve for soybean flour mill in china
-
Factory direct supply capacity 3t-5t/h double-cabin plansifter sieve of corn flour in china
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | chengli or CL | Model Number | FSFG | |
| Production Capacity | 3-10t/h | Voltage | 380v | |
| Power(W) | 3-4kw | Weight | 1000-3500kg | |
| Dimension(L*W*H) | 1797*2400*1650mm | Certification | ISO 9001:2008 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

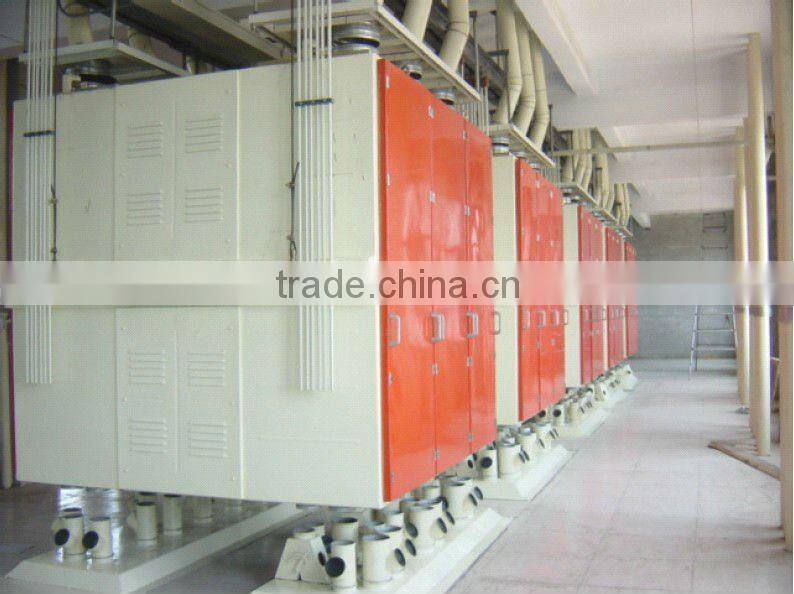

Square Plansifter
1. Principle
- The machine is driven by a motor which installed inside of the main frame and counter-balanced by a counterweight. Each machine has 4, or 6, or 8 sections sieves inside. Different material flows into the different section on its own route. According to individual design for different materials, the sieve sifts different granular material to different next passage in flour mills when the whole machine is running.
2. Features
- Sieve frame size: 640x640mm, 740mmx740mm
- Pressed steel plate framework. Internal box walls supplied with stainless steel. Adjustable counterweight mounted with SKF (Sweden) special double row roller bearings and self aligning type.
- Sieve frames are made by imported wooden coated inside and outside with plastic melamine lamination, demountable, interchangeable. Sieve frames are equipped with stainless steel trays. Each whole section is clamped by means of a metal frame and pressure micrometric screws from the top. Easy and quick changing of sifting scheme if necessary.
- Outlets for discharge of plansifter, including black plastic caps within gravity spouting scope.
- Sieve materials to be SEFAR mesh.
- Newly Nova style sieves are also available, aluminium inner sieve for more sanitation requirement.
3. Application
- Widely applied in modern flour mills and rice grinding mills.
- Mainly used for grinded wheat and middle material sifting, can also be used for flour check sifting.
- Different sieving design serves for different sifting passages and different middle materials.
4. Specification:
1. Principle
- The machine is driven by a motor which installed inside of the main frame and counter-balanced by a counterweight. Each machine has 4, or 6, or 8 sections sieves inside. Different material flows into the different section on its own route. According to individual design for different materials, the sieve sifts different granular material to different next passage in flour mills when the whole machine is running.
2. Features
- Sieve frame size: 640x640mm, 740mmx740mm
- Pressed steel plate framework. Internal box walls supplied with stainless steel. Adjustable counterweight mounted with SKF (Sweden) special double row roller bearings and self aligning type.
- Sieve frames are made by imported wooden coated inside and outside with plastic melamine lamination, demountable, interchangeable. Sieve frames are equipped with stainless steel trays. Each whole section is clamped by means of a metal frame and pressure micrometric screws from the top. Easy and quick changing of sifting scheme if necessary.
- Outlets for discharge of plansifter, including black plastic caps within gravity spouting scope.
- Sieve materials to be SEFAR mesh.
- Newly Nova style sieves are also available, aluminium inner sieve for more sanitation requirement.
3. Application
- Widely applied in modern flour mills and rice grinding mills.
- Mainly used for grinded wheat and middle material sifting, can also be used for flour check sifting.
- Different sieving design serves for different sifting passages and different middle materials.
4. Specification:
Main Technical Parameter:
Parameter
model | Output (t/h) | Power (kw) | Weight (kg) | Dimension (mm) |
FSFG4×18 | 3 | 2.2 | 1000 | 1797×2400×1650 |
FSFG6×18 | 5 | 2.2 | 1500 | 2563×2400×1650 |
FSFG4×24 | 8 | 3 | 2500 | 1797×2400×2200 |
FSFG6×24 | 10 | 4 | 3500 | 2563×2400×2200 |
