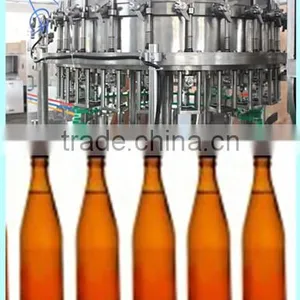

glass bottle bottling machine/custom glass beer bottles/machine to make glass
1.Rinsing machine
-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
2. Filling machine
-The starwheels drive the bottles always by the neck through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
- The filling valves are fully made of stainless steel with food grade, sterilization-resisting plastic gaskets. The valves are secured to the bowl and allow easy assembly and disassembly.
3. Capping machine
-Rotative capping turrent, suitable to the application of screw plastic caps on PET /glass bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam .

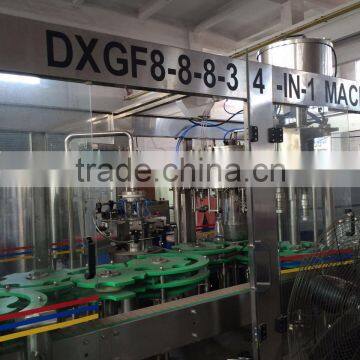

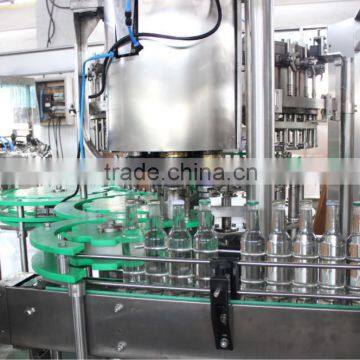

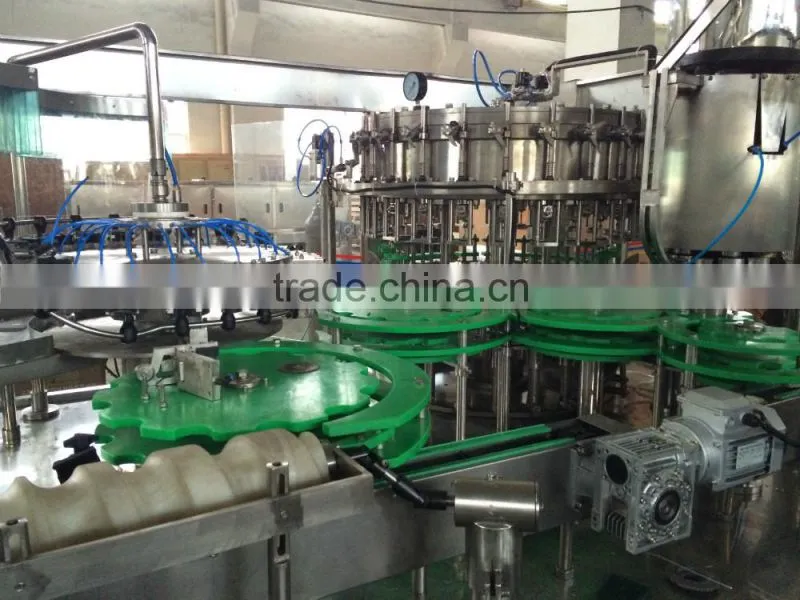

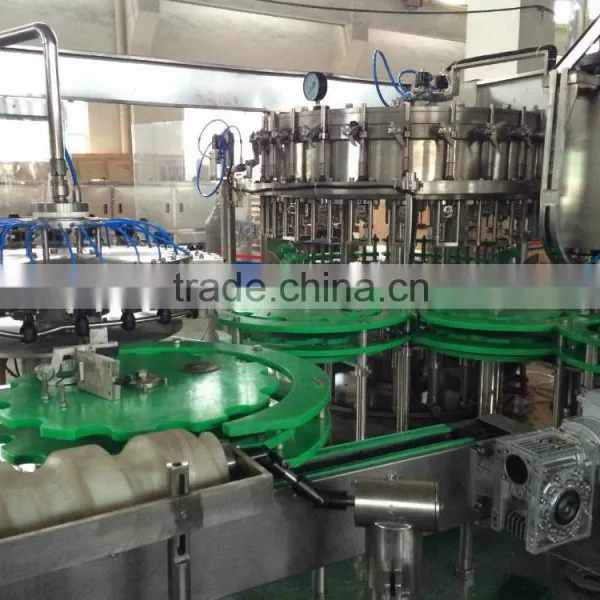

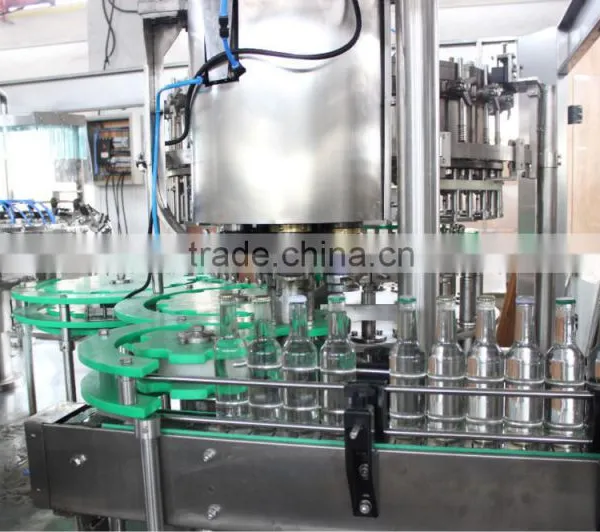

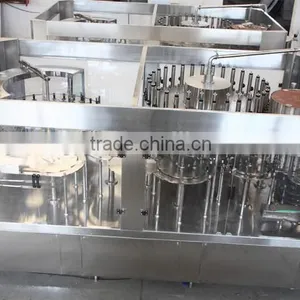

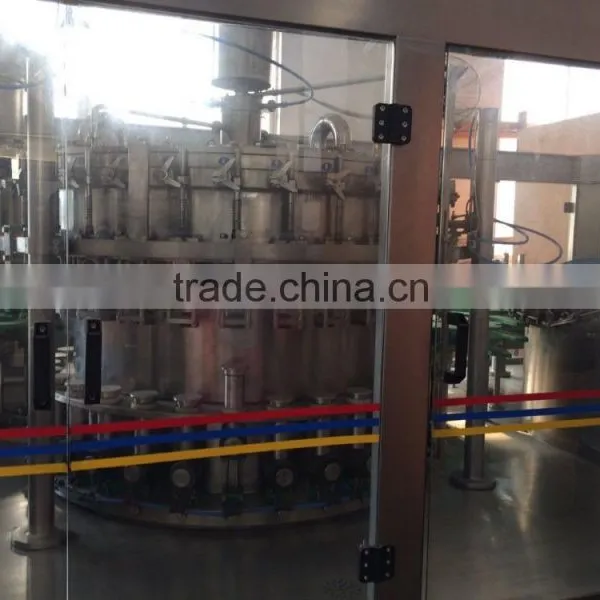

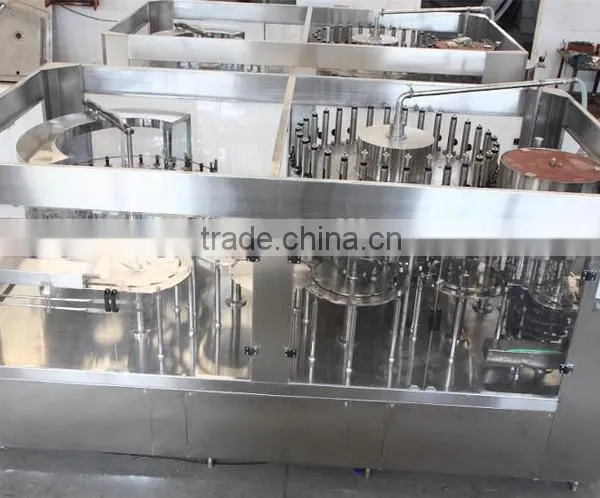

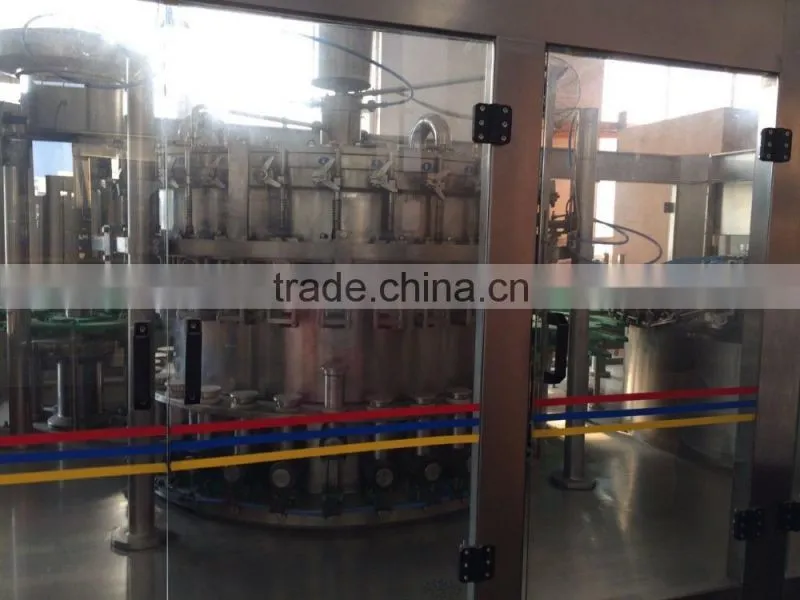

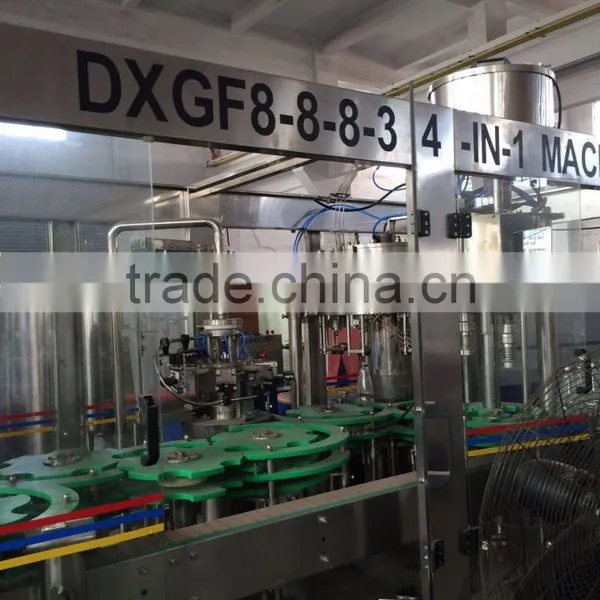

Product display
Product Parameters
| Model | DCGF 18186 |
DCGF 24248 |
DCGF 323212 |
DCGF 404015 |
DCGF 505018 |
DCGF 606020 |
| Head of washing, filling, sealing | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-18 | 60-60-20 |
| Production capacity (bottle/hour) | 3000-4000 | 5000-6000 | 7000-8000 | 9000-10000 | 11000-12000 | 15000 |
| Suitable bottle diameter(mm) | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml |
| Filling precision | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm |
| Motor power | 3.84kw | 4.1kw | 5.6kw | 7.5kw | 9kw | 11kw |
| Filling pressure | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
| Overall dimension (mm) | 2400×1900 ×2300 |
2800×2100 ×2300 |
4200×2300 ×2300 |
5000×2800 ×2400 |
5900×3100 ×2400 |
6500×3500 ×2400 |
| Weight(Kg) | 3000 | 4000 | 5000 | 7500 | 9000 | 11000 |

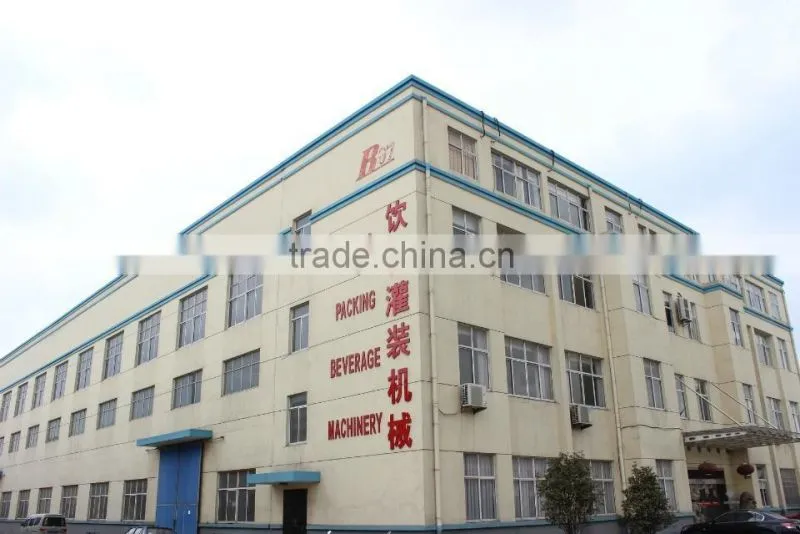

Company information
