FQFD Purifier for pure flour and less-pure flour the crafting
The FQFD Series Flour Purifier Machine is used to handle coarse and medium size stock of break systemm for plansifter, to take out pure endospem and send to the reduction system to produce highly refined flour with low ash content. It is completed with reasonable design and it adopts vibro-electrical transmission structure, offering advantages such as smooth operation, low noise, long working life, dust-free and low power consumption. Meanwhile, this machine is easy to maintenance.

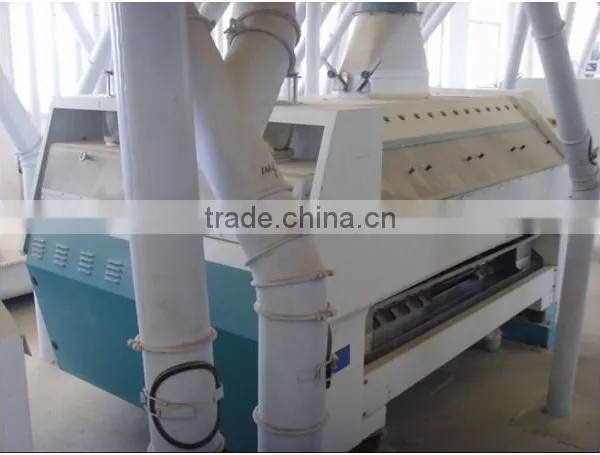

This machine is designed for separating pure endosperm granular from its mixture. It comprises two independent sieve-decks, each with three ranges of double superimposed sieves. The two sieve-decks are supported by four rubber spring bushes on a steel frame and vibrated by two vibration motor which installed at the end of the machine. Independent aspiration is connected on the top of the machine. The mixture flows into sieve decks and is classified by the interaction of vibration and suction while it’s flowing to the end of the machine. The materials then are separated to pure endosperm semolina, endosperm with barn fraction, pure bran fraction and then are sent to different next passage.
Flour Purifier MachineApplication:
The unit is used for high quality wheat flour producing by means of selecting out the pure endosperm granules, the bran with powder or the bran by the material's quality and size. It is useful for improving the flour output ratio and quality.
1. Widely applied in modern flour mills for high quality flour.
2. Successfully used for semolina flour in durum flour mills.
FQFD Series Flour Purifier Machinecharacter:
1. The flour cleaner is a new successful machine invented after adopting the most advanced international technology.
2. Advanced structure, full specification, new and beautiful outlook;
3. The machine is widely used in grain processing plants.
4. Impressive throughput capacity.
5. Reliable feeding and sieve cleaning for superior product quality.
6. The material fed to the machine at a uniform rate is distributed across the entire width of the sieve via a feed gate. This provides for a continuous process and thus reproducible product quality.
7. Dependable cleaning of the sieves makes all processes transparent – another guarantee for achieving consistently high product quality.
Main parameters of flour mill purifier machine:
|
Parameter model |
Output (t/h) |
Air volume (M3/min) |
Power (KW) |
Weight (Kg) |
Dimension (mm) |
FQFD49×2×3 |
0.6-2.8 |
40-70 |
2×0.18 |
1000 |
2700×1290×1700 |
FQFD60×2×3 |
0.75-3.37 |
50-85 |
2×0.25 |
1150 |
2750×1490×1830 |
Henan Chengli Grain & Oil Machinery Co., Ltd has decade years of researching, designing and producing experience, as a professional manufacturer specialized in producing grain processing machineries.CHENGLI is engaged specially in project design on grain processing factory of wheat flour and corn/maize flour. Our superior products are complete set of 30T-200T/D maize flour processing machine and wheat flour processing machine.

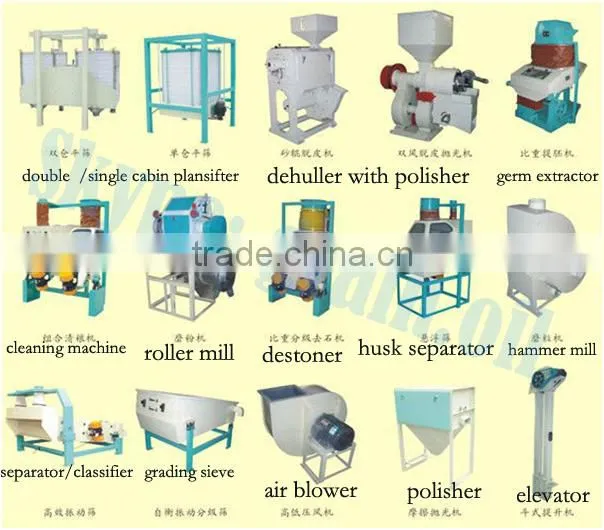

We are the professional manufacturer in China, We can supply the technology and service on complete set of Corn/Maize Deep-processing Machine, Maize/Wheat Flour Deep Milling machine, single Peeling machine, single Grinding machine, single Polishing machine, different kinds of Pulverizer, Separator, Classifier, Sieves and Plansifter, Centrifugal Ventilator, Pellet machine, Hammer Mill, Packing machine, Oil Refining production line, Oil Press and other machinery parts. We can supply the different designs with different cost to meet different buyer's request.
