Home > Products > Farm Machinery > 9FZ series feed grinder mill
9FZ series feed grinder mill
- 100 Set / Sets per Month
- CHINA MAIN PORT
- T/T L/C D/P D/A PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | CHENGLI |
Model Number: | FZ | Type: | Mill Machine | Voltage: | 220V/380V |
Power(W): | 2.2kw | Dimension(L*W*H): | According to the model | Weight: | 35 kg |
Certification: | ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

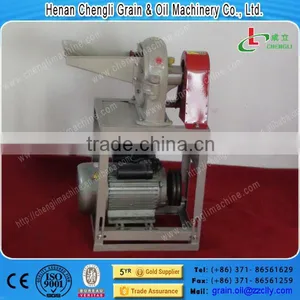

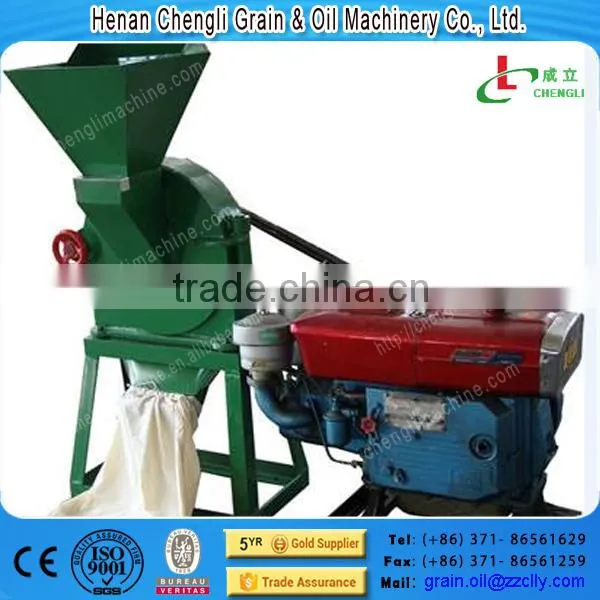

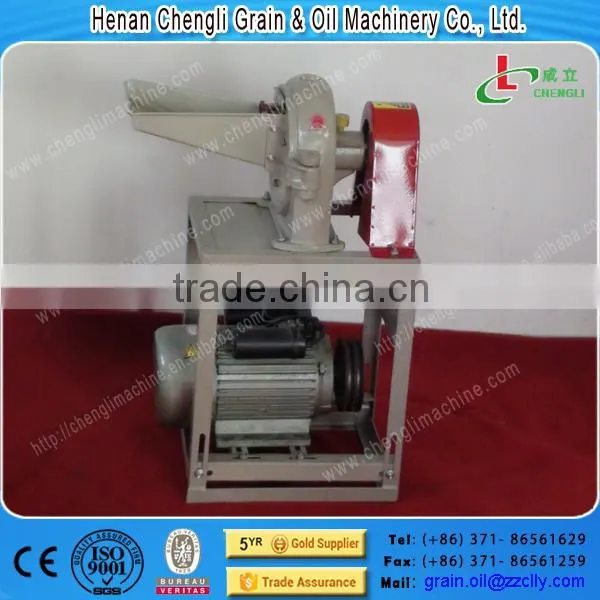

9FZ feed grinder mill
Introduction
This feed grinder mill can crush all kinds of raw materials, such as corn , sorghum , soybean, wheat , beans and other grains and coarse dry fodder like the broken cake for animal feed.
9FZ series , the main working parts is the installation of the vertical piece on the rotor blade . Crushed particles with a variety of materials, chopped grass , corn stalks and other forage is more widely used and economical grinding equipment ,which has a small size , light weight , installation, operation , maintenance is simple, many advantages of higher productivity.
Structure
The teeth claw crusher consists of the feeding hopper, the crushing room, the rotor, the outlet.
Working principle
The main part of the crusher is the rotor; the fixed gear is with the function of crushing. When the machine starts, need people to put the raw materials into the machine, after feeding into the crushing room, with the rotation of the rotor, the materials is crushed in the process of impacting with the rotor. Under the function of the self weight and airflow, the crushed materials are discharged.
Model | Motor(kw) | Weight(kg) | Dimension(mm) | Capacity(kg/h) |
9FZ-160 | 3kw | 25 | 350*700*500 | 50-100 |
9FZ-200 | 3kw | 35 | 400*550*550 | 100-150 |
9FZ-280 | 4 kw | 45 | 550*550*400 | 150-250 |
9FZ-300 | 4 kw | 50 | 550*580*400 | 200-300 |
9FZ-300 | 5.5kw | 65 | 850*550*1050 | 300-500 |
9FZ-320 | 7.5kw | 110 | 950*650*1050 | 500-1000 |
9FZ-360 | 11kw | 125 | 1050*750*1150 | 1000-2000 |
9FZ-400 | 18.5kw | 155 | 1250*750*1200 | 1500-3000 |
9FZ-450 | 22kw | 195 | 1350*850*1350 | 2000-5000 |
