Home > Products > 3&5 gallon filling line > automatic water filler/water sealing machine/5 gallon manufacturing plants for sale

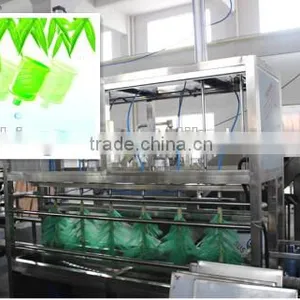

automatic water filler/water sealing machine/5 gallon manufacturing plants for sale

Name: automatic water filler/water sealing machine/5 gallon manufacturing plants for sale
Brand: kingwan
Availability: InStock

FOB Price

US$ 15,000 - 45,000 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage
Packaging Type	Other	Packaging Material	Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220V/380V/415V/440V	Power	4kw
Place of Origin	Jiangsu, China	Brand Name	kingwan
Model Number	QGF	Dimension(LWH)	2200X2100X2200MM
Weight	2000-5000kg	Certification	CE SGS
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

wooden

Product Description

automatic water filler/water sealing machine/5 gallon manufacturing plants for sale

Brief and useful self-introduction:

We are a professional liquid/beverage filling machine (such as: drinking water, beverage, wine, tea etc.) company located in Zhangjiagang City, Jiangsu Province, China. 2 hours driving from Shanghai.

Our machines are suitable for PET bottles, glass bottles, round, square and flat bottles, cans etc. The packaged liquid range among wine, fruit juice, tea, milk, soft drink, pure water, mineral water and so on.

Over 10 years development, we can now provide several complete filling assembly lines. A. Pure water or mineral water filling line B. Fruit juice hot filling line C. Carbonated beverage (soft drink) filling line D. Barreled water filling line E. Wine, alcohol and beer filling line F. Tea filling line

Introduction of D. Barreled water filling line

This unit includes the washer, dryer, filler and capper for production of 3~5 gallon barreled drinking water.

The washing process includes three parts: alkali, disinfectant, water inside and outside washing. Besides, the alkali and disinfectant can be recycled. And the whole line process controlled by PLC

The capacity on the basis of 5 gallon (18.9L) barreled water is from 120 barrel/h~1200 barrel/h

The whole line components:

1. automatic washing/rinsing line (inside and outside; alkali, disinfectant, water)

2. Main body of barreled water filling machine

3. Capper

4. Plastic bag cover

Technical features:

•The barreled water filling machine is made of stainless steel, corrosion resistant material and easy to be cleaned.

•The main electrical components and pneumatic components are all famous brand from home and abroad.

•Filling valve imports American technology.

Technical parameters:

Model	QGF-100	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	2	3	4	4	6	8
Volume(L)	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size(mm)	Φ270×490	Φ270×490	Φ270×490	Φ270×490	Φ270×490	Φ270×490	Φ270×490
Capability(b/n)	100	200	300	450	600	900	1200
Gas pressure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Gas consuption(m3/min)	0.37	0.37	0.6	0.8	1	1.5	1.8
Moto power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Rated Voltage(V)	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ

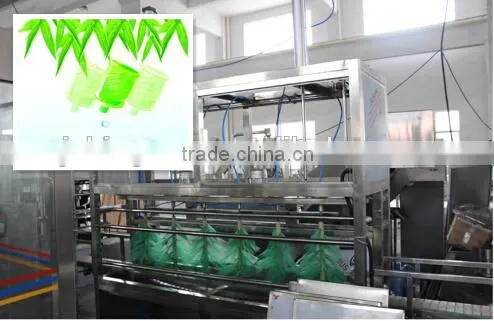

Main pictures
