liquid filler/5 gallon filling machine/beverage line/bottling equipment/5 gallon water filler

Name: liquid filler/5 gallon filling machine/beverage line/bottling equipment/5 gallon water filler
Brand: kingwan
Price: USD $15,000 - 45,000 / Set

FOB Price

USD $15,000 - $45,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Beverage	Packaging Type:	Other
Packaging Material:	Wood	Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	220V/380V/415V/440V	Power:	4kw	Place of Origin:	Jiangsu, China
Brand Name:	kingwan	Model Number:	QGF	Dimension(LWH):	2200X2100X2200MM
Weight:	2000-5000kg	Certification:	CE SGS	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

wooden

Product Description

liquid filler/5 gallon filling machine/beverage line/bottling equipment/5 gallon water filler

Brief and useful self-introduction:

We are a professional liquid/beverage filling machine (such as: drinking water, beverage, wine, tea etc.) company located in Zhangjiagang City, Jiangsu Province, China. 2 hours driving from Shanghai.

Our machines are suitable for PET bottles, glass bottles, round, square and flat bottles, cans etc. The packaged liquid range among wine, fruit juice, tea, milk, soft drink, pure water, mineral water and so on.

Over 10 years development, we can now provide several complete filling assembly lines. A. Pure water or mineral water filling line B. Fruit juice hot filling line C. Carbonated beverage (soft drink) filling line D. Barreled water filling line E. Wine, alcohol and beer filling line F. Tea filling line

Introduction of D. Barreled water filling line

This unit includes the washer, dryer, filler and capper for production of 3~5 gallon barreled drinking water.

The washing process includes three parts: alkali, disinfectant, water inside and outside washing. Besides, the alkali and disinfectant can be recycled. And the whole line process controlled by PLC

The capacity on the basis of 5 gallon (18.9L) barreled water is from 120 barrel/h~1200 barrel/h

The whole line components:

1. automatic washing/rinsing line (inside and outside; alkali, disinfectant, water)

2. Main body of barreled water filling machine

3. Capper

4. Plastic bag cover

Technical features:

•The barreled water filling machine is made of stainless steel, corrosion resistant material and easy to be cleaned.

•The main electrical components and pneumatic components are all famous brand from home and abroad.

•Filling valve imports American technology.

Technical parameters:

Model	QGF-100	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	2	3	4	4	6	8
Volume(L)	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size(mm)	Φ270×490	Φ270×490	Φ270×490	Φ270×490	Φ270×490	Φ270×490	Φ270×490
Capability(b/n)	100	200	300	450	600	900	1200
Gas pressure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Gas consuption(m3/min)	0.37	0.37	0.6	0.8	1	1.5	1.8
Moto power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Rated Voltage(V)	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ

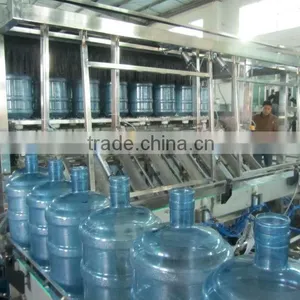

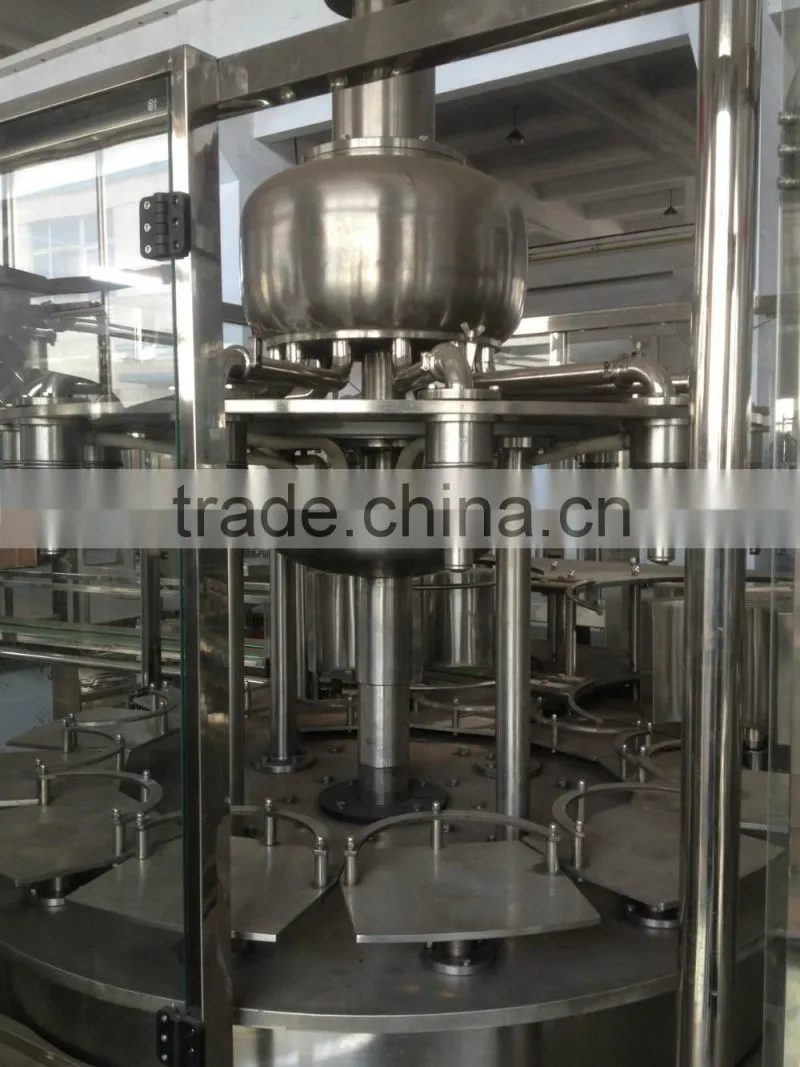

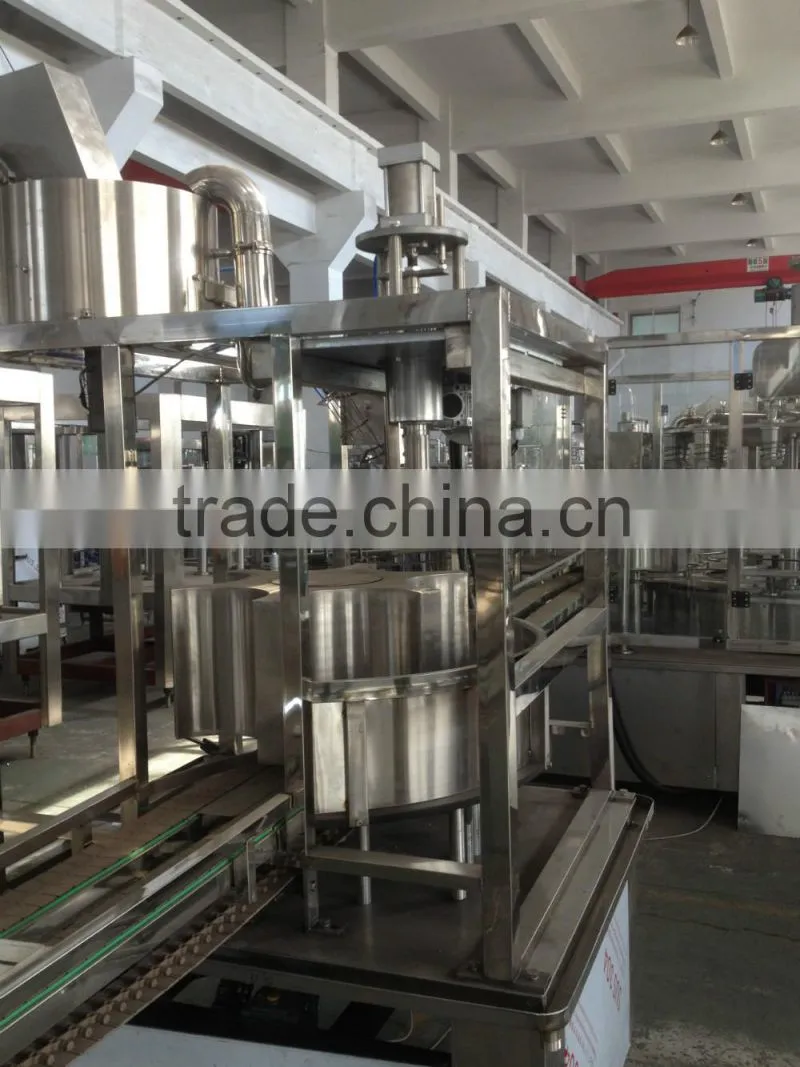

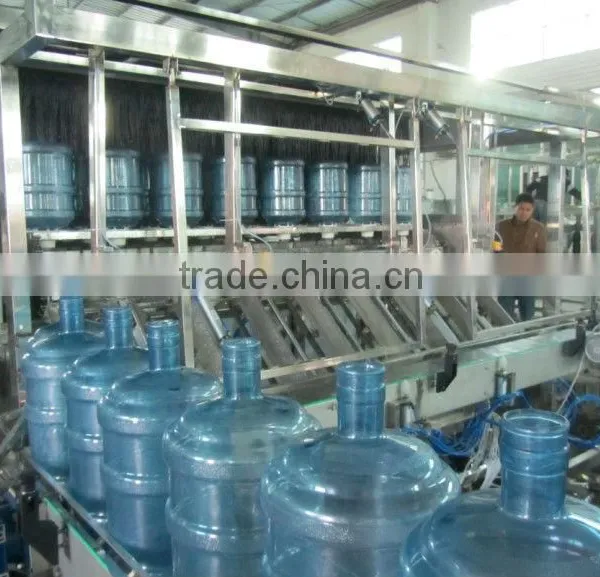

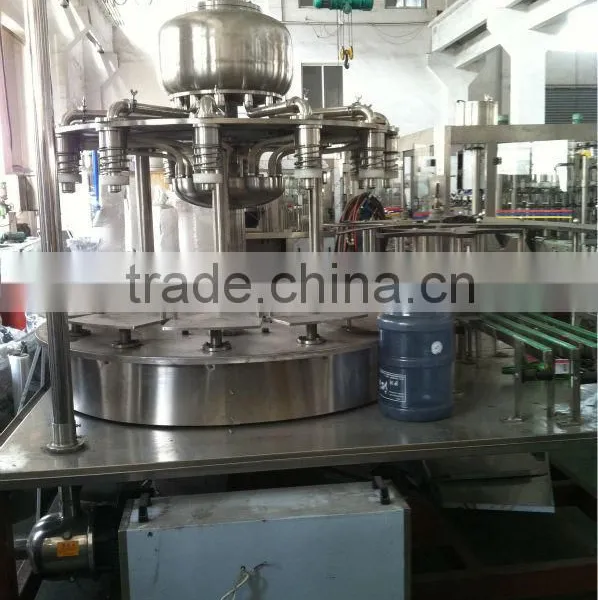

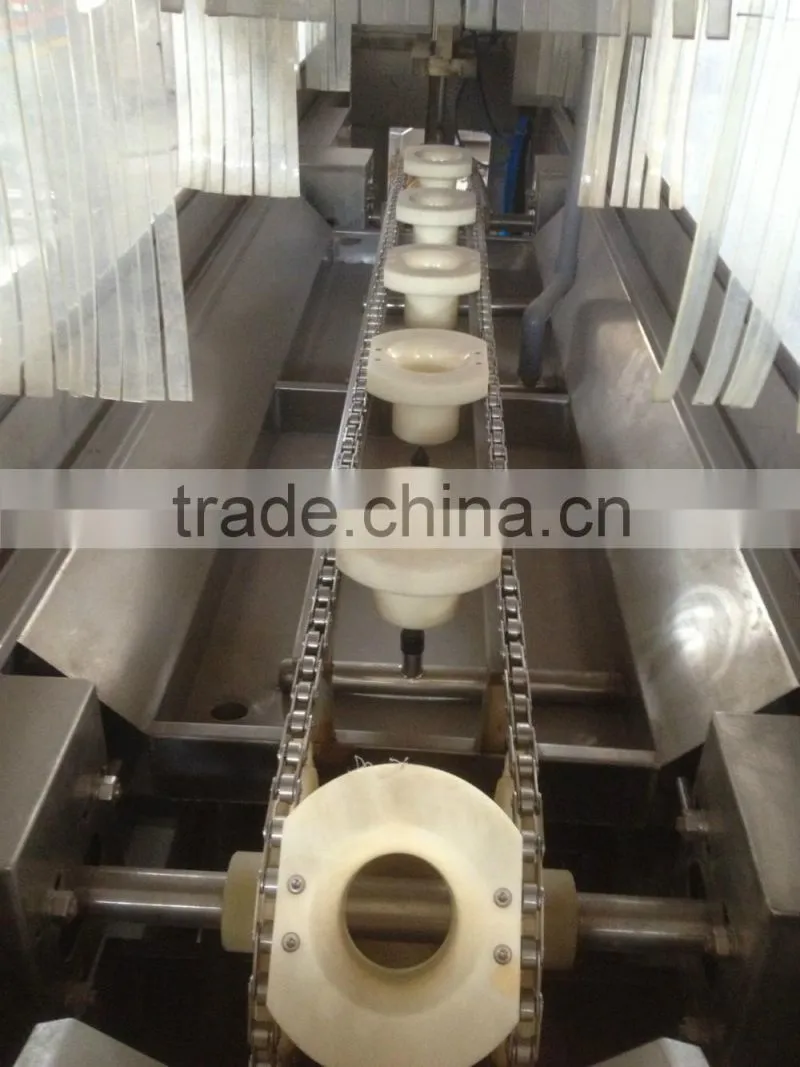

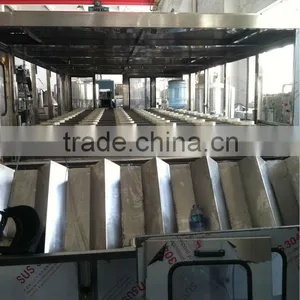

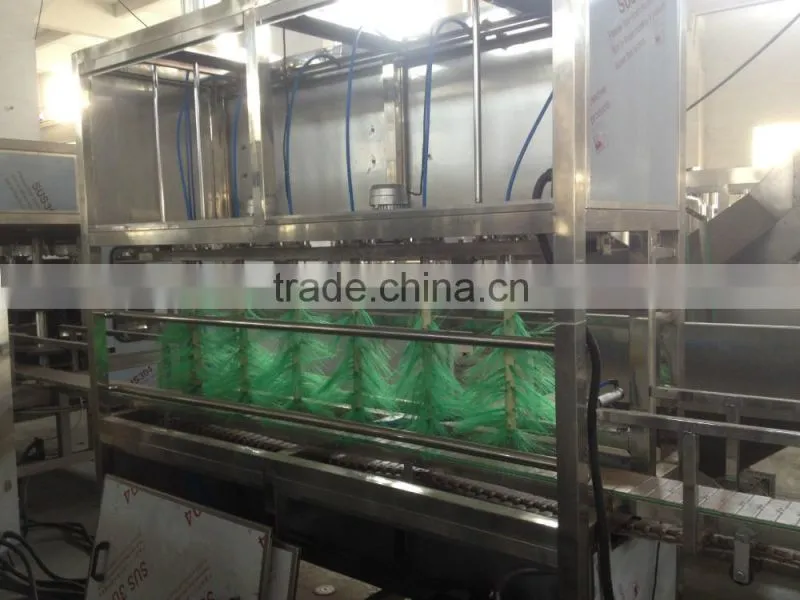

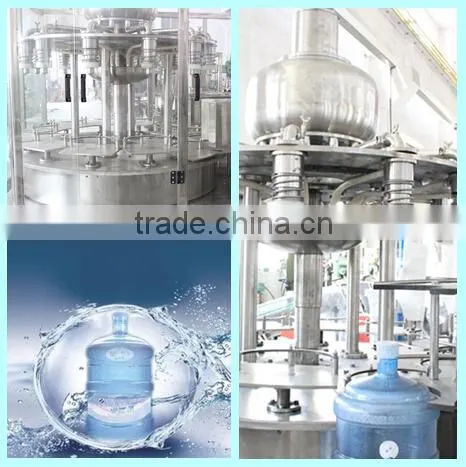

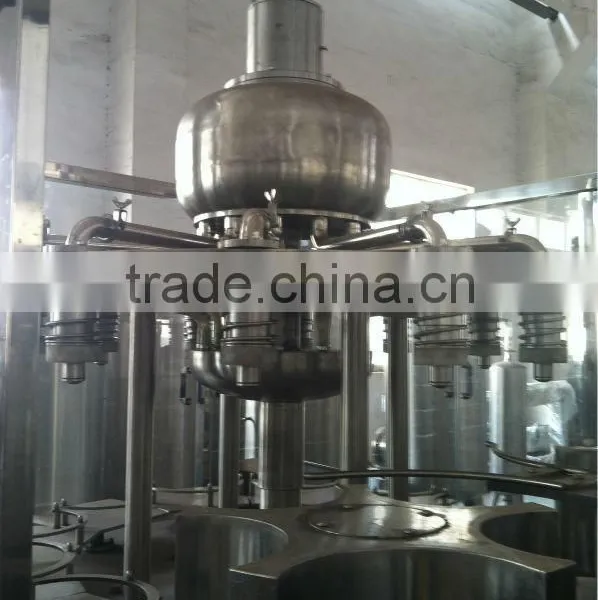

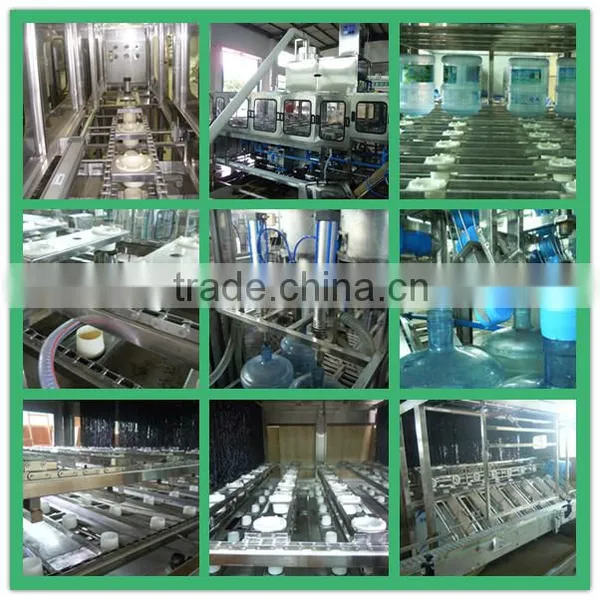

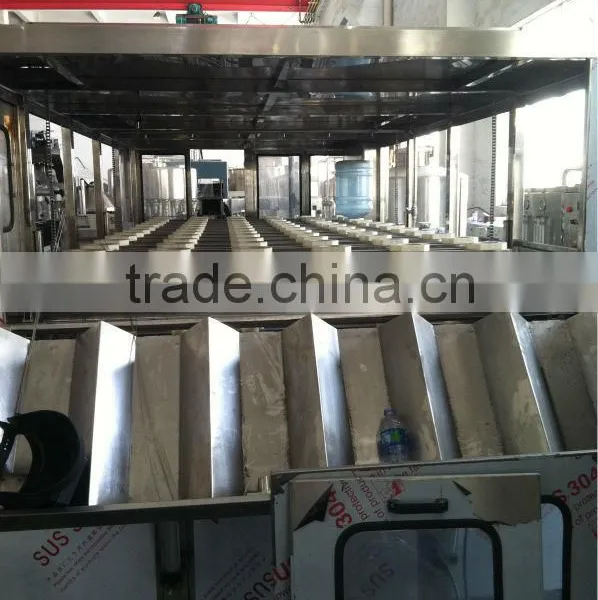

Main pictures

Company Profile

Jiangsu King Wan Machinery Co., Ltd.

Jiangsu kingwan Machinery Co., Ltd. is committed to the development of beverages, plastics machinery, hardware, electrical and mechanical equipment and other industries, specializing in concentrated beverage, plastics machinery and hardware, electrical and mechanical equipment research, development, manufacturing and sales, with the company's strong technical force and economic strength, and constantly develop new products with international advanced level of technology.

The company is headquartered in Zhangjiagang, service network throughout the country. The company implemented network management, relying on advanced computer-aided design system and computer management system, standardized operation, in the shortest possible time to provide users with high-quality products.

Companies in the technology leadership, first, customer-oriented principle to provide customers with satisfactory services.

jiangsu kingwan Machinery Co., Ltd., have Zhangjiagang City wanjin Machinery Co., Ltd. specializing in the production of beverage equipment research, production, manufacture, Zhangjiagang City Plastic Machinery Co., specialized in plastic machinery research, development, manufacture, also has engaged in Research hardware, mechanical and electrical equipment production and manufacturing.

Since its inception, proactive, innovative, with a good reputation, unique management style and strong marketing capabilities, has made one after another impressive performance. Over the years, rapid development of robust jiangsu kingWan Machinery Co., Ltd., inseparable from the industry's very best partners.

Contact Us

Jiangsu King Wan Machinery Co., Ltd.: Contact namestephen Qin; Phone0086-512-58536008; AddressB07, Jinfeng Technology Innovation Park
