Home > Products > Special Application Pressure Gauges > High Quality Bottom Mount Pressure Subsea Copper Alloy Manometer
High Quality Bottom Mount Pressure Subsea Copper Alloy Manometer
US$ 150 - 250
/ Piece
50 Pieces(Min. Order)
- Ningbo Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Quality Bottom Connection Bayonet Bezel Steam Copper Alloy Pressure Gauge
-
High Quality 63mm All Stainless Steel Back Mounting SF6 Gas Meter
-
High Quality 1.5 Inch Brass Back Connection Propane Manometer
-
High Quality 40mm 50mm Stainless Steel Case Mining Industrial Pressure Gauge
-
High Quality 4.5 Inch Bottom Mounting Polypropylene Case Process Pressure Meter
-
High Quality 1.5 Inch Brass Back Connection Propane Pressure Meter
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GC | |
| Model Number | copper alloy manometer |
Product Description

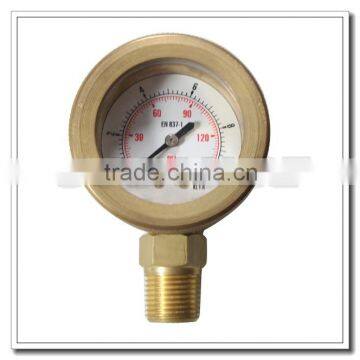

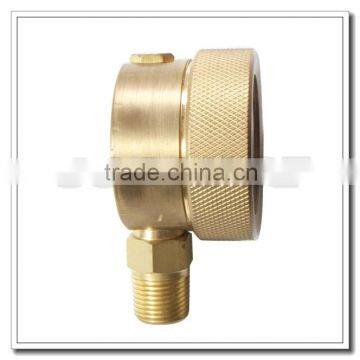

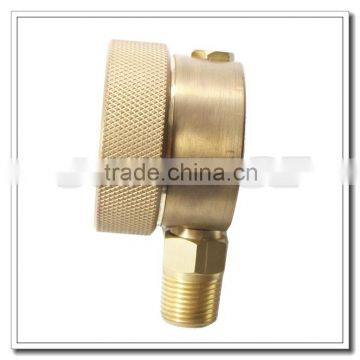

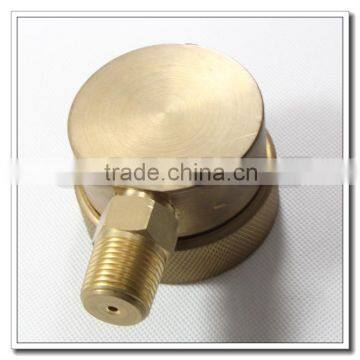

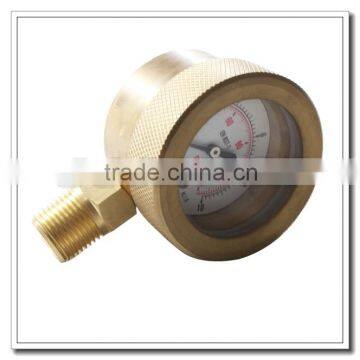

High quality bottom mount pressure subsea copper alloy manometer
Measurement range | From-1…to 0…600bar |
Accuracy | ±1.6% for P≥4bar and ±2% for P<4 bar |
Case | Brass Cu Zn 39 Pb 2-watertight-resistant to a 450m of sea water immersion |
Bezel ring | Brass material-screwed with rifle nut |
Mounting | Type G-Panel mounting |
Window | Plexiglas 9mm |
Threading | G1/4 or 1/4NPT |
Connection material | Stainless steel |
Sensing element | Soldered bronze or soldered stainless steel depending on pressure range |
Movement | Brass/stainless steel |
Blow-out disc | Watertight-Ejection for PI-PE≤2.5bar |
Specifications | Oxygen cleaned according to the ST004A specification Packing in individual plastic bags |
