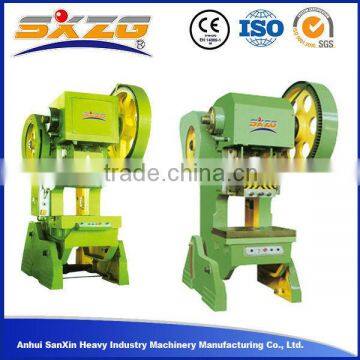

Stainless Steel Metal Sheet Punching Machine, Mechanical Power Press Machine
US$ 500 - 1,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Metal Sheet Punching Machine, 16 Ton Power Press for SaleUS$ 500 - 1,500MOQ: 1 Set -
China Factory Direct Sale Manual Punching Machine PriceUS$ 500 - 4,000MOQ: 1 Set
-
Made in China JB23-10T Manual Hole Punching Machine CostUS$ 500 - 4,000MOQ: 1 Set
-
Factory Direct Sale High Precision Mechnical Punching Machine PriceUS$ 500 - 4,000MOQ: 1 Set
-
CE Certification Manual Sheet Metal Punching Machine PriceUS$ 500 - 4,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Power Source
Mechanical
Place of Origin
Anhui, China
Brand Name
SXZG
Model Number
J23-16T
Voltage
380V/220V/415V
Power(W)
2.2KW
Weight
750KG
Dimension(L*W*H)
950*620*1700mm
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
stainless steel metal sheet punching machine, mechanical power press machine
1. Performance
1. J23 Series Presses is one of the new generation of plate process and developed by Anhui LVD CNC Machine Co., Ltd. ,The press is for cutting, punching, blanking, bending and light stretching work. |
| 2. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application. |
| 3. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful. |
| 4. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service. |
2. Technical Data
| Item | Unit | J23-10 | J23-16 | J23-25 | J23-40 | J23-63 | J23-80 | J23-100 | |
| Norminal capacity | KN | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | |
| Slide stroke | Times/min | 50 | 60 | 60 | 100 | 110 | 115 | 130 | |
| Slide strokes | mm | 150 | 140 | 100 | 50 | 50 | 45 | 45 | |
| Max closing height | mm | 200 | 245 | 300 | 350 | 380 | 385 | 400 | |
| Die height adjustment | mm | 30 | 50 | 70 | 75 | 80 | 80 | 100 | |
| Distance between slider center and machine | mm | 120 | 160 | 185 | 220 | 250 | 260 | 280 | |
| Workbench size | Front and back | mm | 230 | 280 | 320 | 400 | 450 | 490 | 553 |
| Left and right | mm | 370 | 455 | 540 | 650 | 700 | 760 | 830 | |
| Workbench diameter | mm | 100 | 130 | 130 | 140 | 170 | 170 | 190 | |
| Pole distance | mm | 215 | 215 | 200 | 245 | 310 | 310 | 365 | |
| Shank Hole Size | Diameter | mm | 30 | 35 | 38 | 40 | 60 | 60 | 60 |
| Depth | mm | 50 | 50 | 60 | 60 | 60 | 60 | 85 | |
| Pad thickness | mm | 40 | 50 | 55 | 70 | 85 | 95 | 95 | |
| Body tilting angle | ° | 30 | 20 | 20 | 20 | 20 | 20 | 20 | |
| Motor power | KW | 1.5 | 2.2 | 2.2 | 3 | 5.5 | 7.5 | 7.5 | |
| Dimension | Front and back | mm | 800 | 950 | 1100 | 1500 | 1700 | 1800 | 2000 |
| Left and right | mm | 600 | 620 | 800 | 1100 | 1200 | 1300 | 1500 | |
| Height | mm | 1550 | 1700 | 2000 | 2250 | 2500 | 2600 | 2800 | |
| Weight | KG | 450 | 750 | 1500 | 2500 | 4000 | 5000 | 6000 | |

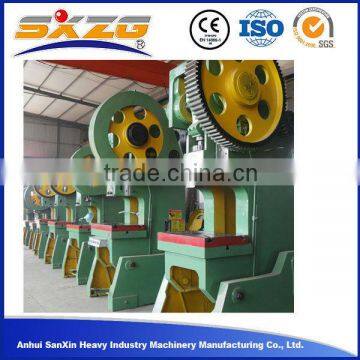

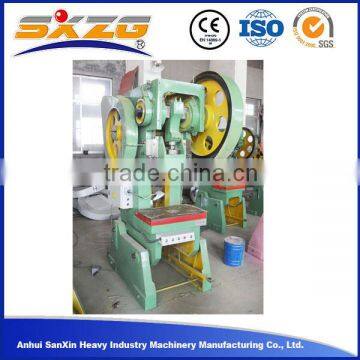

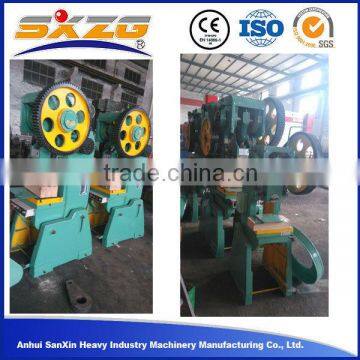

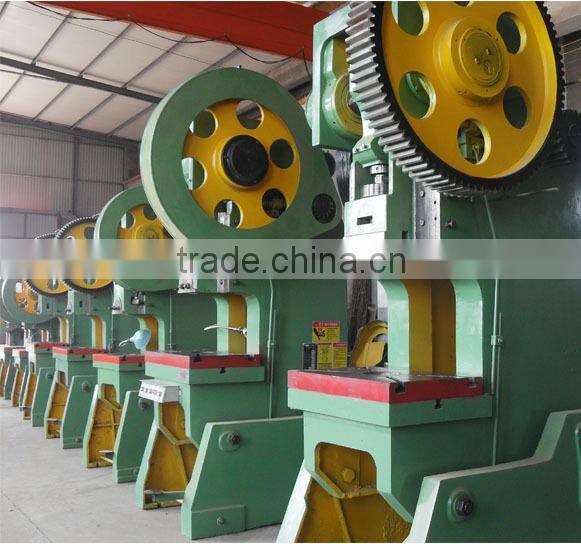

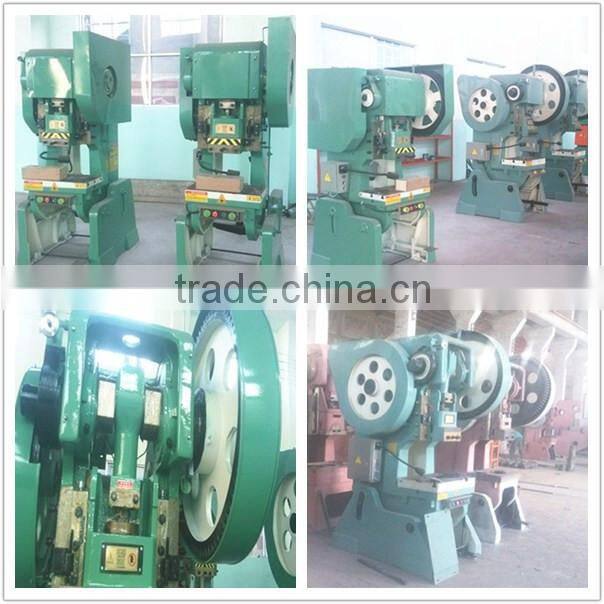

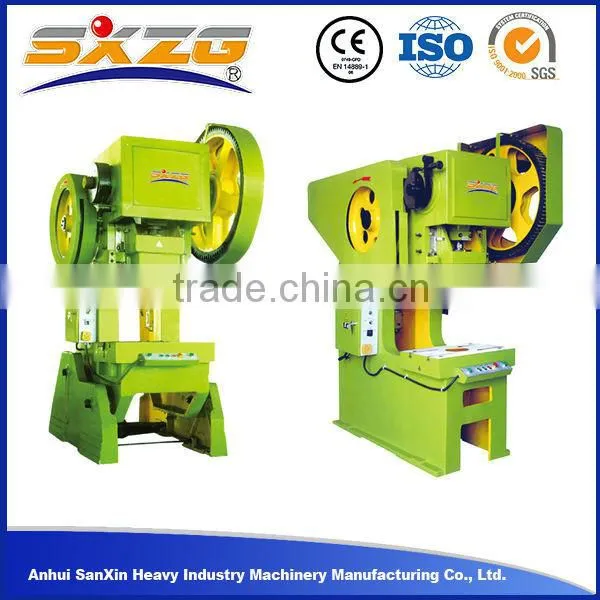

3. Punching Machine Photos
4. Our Service
| 1,quality Guarantee |
| We guarantee the quality of machine. |
| We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. |
| Machine is free to repair with 1years.We offer flexible extended warranties if needed. |
| 2,Installation and Training Service |
| Our factory can send our engineer to the customer’s factory install, commission and training freely. As well, you may send your engineers to our company to learn how to operate machines. |
| 3,Question about the products |
| Anything confulsed you about the products, please contact us. You can contact with us by WhatsApp, Skype, Alibaba, QQ, Wechat, Email. |
