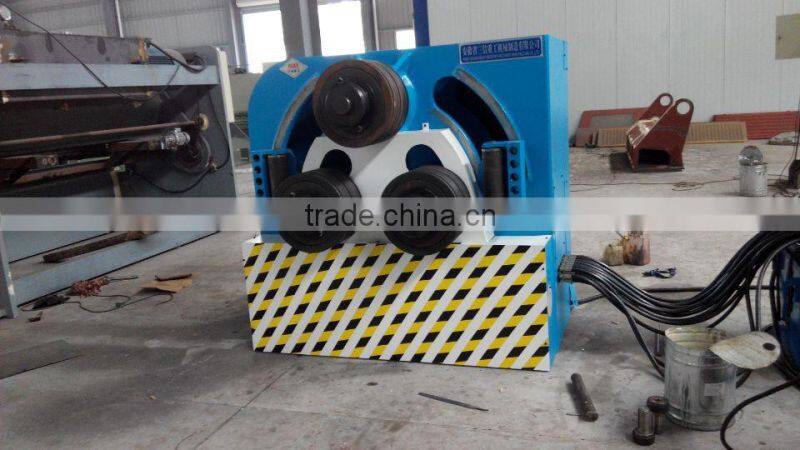

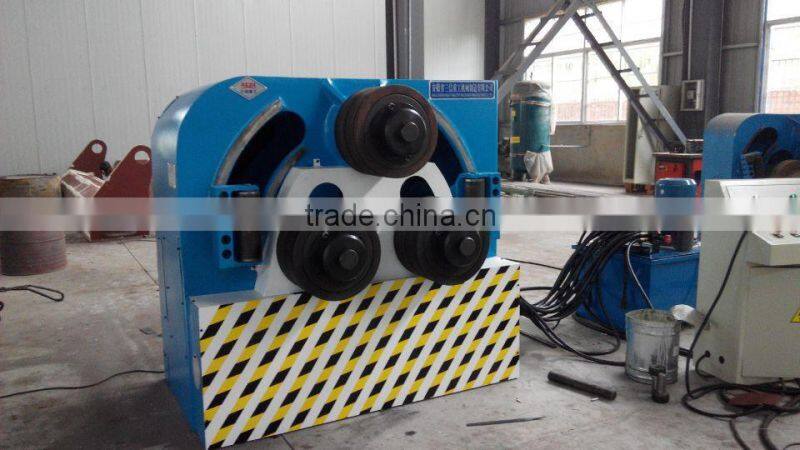

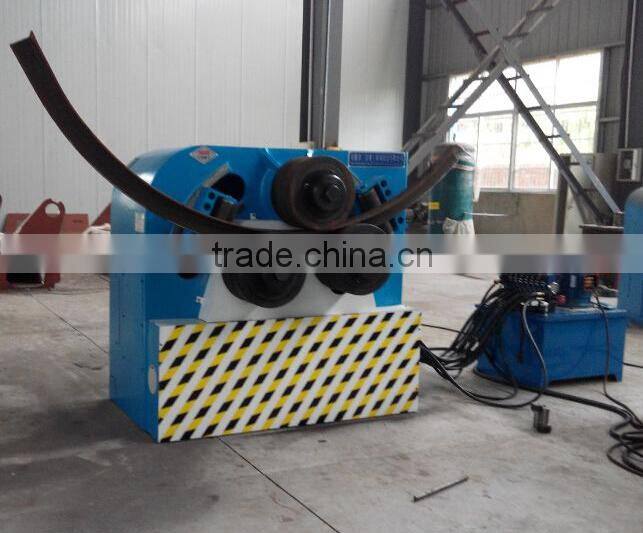

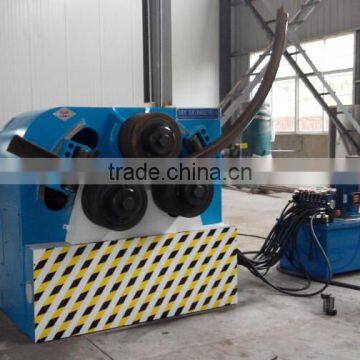

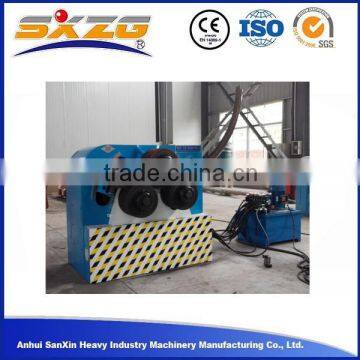

Angle steel profile bending machine for sale
Specifications
Flat steel bar roll bending machine
fessional manufacture;
2.High quality;
3.perfect service;
4.Good price
Advantages of machine:
a. The machine type is come from Europe, and we improve and make is for many years. The performance of is excellent

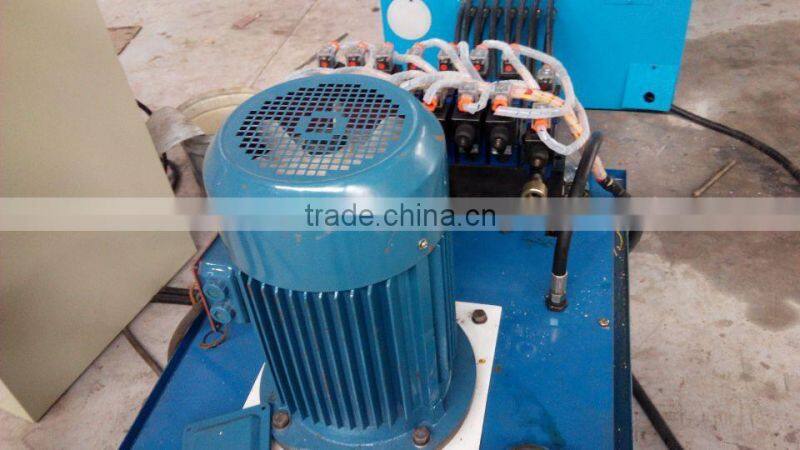

b.All movement is driven by hydraulic system. Operation is controlled by PLC system. Control is easy and accurate
c.Machine body is welding construct. It is rigidity, so bending precision is ensure.

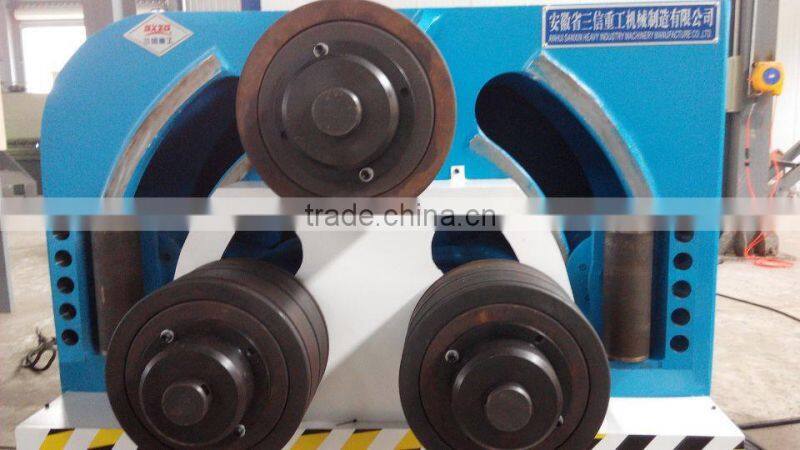

d.All die is driving rollers, so no “slip” occurs, and working capability is enough.
e.Once loading working piece, you can finish prebending, bending. Twice loading working is no necessary. It is general equipment for bending section iron.
f. Its rigidity is very good, center of gravity is lower, and all movements are safety.

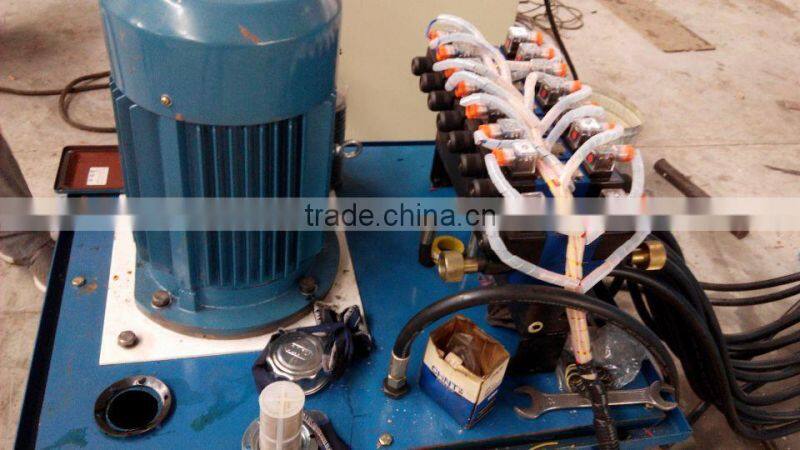

g.Almost valves are made of Northman. The quality is good, so hydraulic system is steady.
h.Electrical system is anti- interfere. Over electric current and over thermal protect unit are mounted. Safety interlock unit is installed on the machine.
i.All movement parts are covered by safety cover. But bending die is no cover.
Technical Parameters
Model |
W24S-16 |
|
Max. Anti-Winding Cass-Section Moulds (cm3) |
16 |
|
Winding Speed (m/min) |
3 |
|
Yield Strength (MPa) |
245 |
|
|
Angle Steel Internal Winding |
Max. Cross – Section(mm) |
70×8 |
Min. Winding Dia. (mm) |
1000 |
|
Min. Cross - Section(mm) |
30×3 |
|
Min. Winding Dia. (mm) |
550 |
|
|
Angle Steel Eternal Winding |
Max. Cross – Section(mm) |
75×10 |
Min. Winding Dia. (mm) |
1000 |
|
Min. Cross - Section(mm) |
30×3 |
|
Min. Winding Dia. (mm) |
550 |
|
|
Channel Steel Eternal Winding |
Model |
12 |
Min. Winding Dia. |
800 |
|
|
Channel Steel Internal Winding |
Model |
14 |
Min. Winding Dia. |
900 |
|
|
Flat Steel plane-bending |
Max. Cross - Section |
150×25 |
Min. Winding Dia. |
700 |
|
|
Flat Steel vertical bending |
Max. Cross - Section |
75×16 |
Min. Winding Dia. |
760 |
|
Motor Power |
KW |
5.5 |

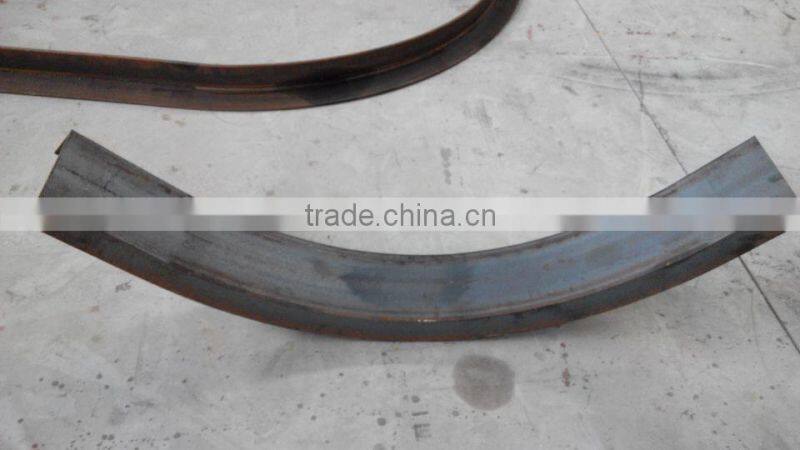

Producing Capacity
