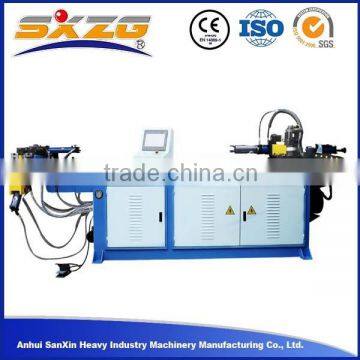

Single Head Series nc Hydraulic Stainless Steel Pipe Fabrication From China Factory
US$ 4,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
SXZG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Distributors Agents Required nc Ercolina Pipe Benders, Tube Bending MachineUS$ 4,000 - 10,000MOQ: 1 Set -
SB Series Single-head New Products Pipe Benders for Sale ukUS$ 4,000 - 10,000MOQ: 1 Set
-
nc Hydraulic Portable Pipe Bender Manufacturers From ChinaUS$ 4,000 - 10,000MOQ: 1 Set
-
Products You Can Import From China DW38NC nc Rolling Pipe BenderUS$ 4,000 - 10,000MOQ: 1 Set
-
Factory Price DW38NC Hydraulic Pipe Bending MachineUS$ 4,000 - 4,500MOQ: 1 Set
Condition
New
Place of Origin
Anhui, China
Brand Name
SXZG
Model Number
DW38NC
Machine Type
Pipe and Tube Bending Machine
Raw Material
Pipe
Material / Metal Processed
Carbon Steel
Power
Other, Hydraulic, 4KW
Automation
Automatic
Extra Services
End Forming
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
single head series nc hydraulic stainless steel pipe fabrication from China factory
Machine specification:
| No. | Name | Unite | Parameter | Note |
| 1 | Max bending capability | mm | Φ38 ×2 | |
| 2 | Max bending radius | mm | R260 | According to customer |
| 3 | Min bending radius | mm | According to diameter | |
| 4 | Max bending degree | Degree | 190 | |
| 5 | Max effective distance of mandrel | mm | 1600 | According to customer |
| 6 | Control system | NC Control | ||
| 7 | Max elbow bend pipe | 16 | ||
| 8 | Max storable sections | 16 ×16 | ||
| 9 | Motor power | Kw | 4 | |
| 10 | Max hydraulic pressure | Mpa | 12 | |
| 11 | hydraulic system control | Electromagnetic valve | Japan Yuken | |
| 12 | Oil tank capability | L | 110 | |
| 13 | Measurement | mm | 2600 ×600 ×1000 | |
| 14 | Weight of machine | Kg | 750 |
Machine peformance:
| 1. Automatic recognition of power in machine and work piece, the processing is both quick and good |
| 2. Slow returning core, boosted by barrow, imporving the apprearance of the angle. |
| 3. The whole operation is in the computer, simple, quick and correct |

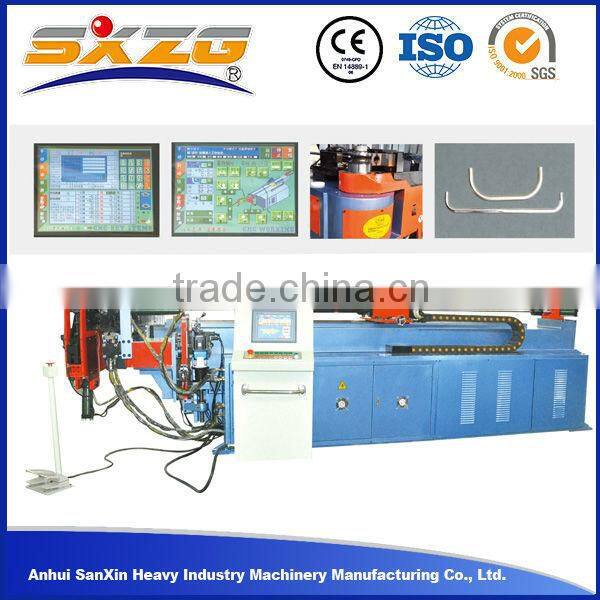

| 4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct |
| 5. Rebound test: comparison test on the features of lots of pipe materials |
| 6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies. |
| 7. Automatic drawing of the graphics of dies-clear help to develop new products |
| 8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles |
| 9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production |

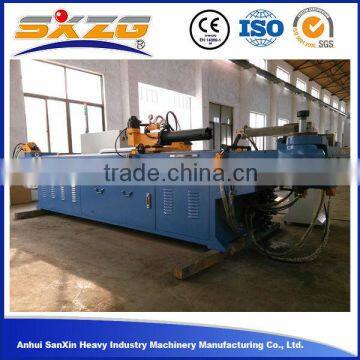

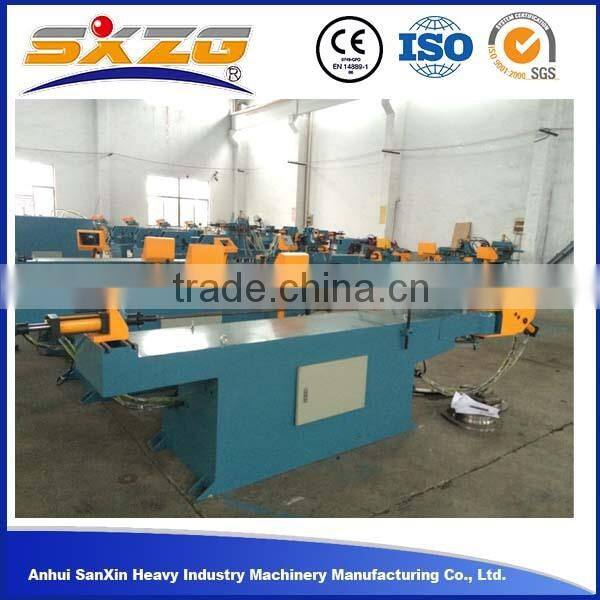

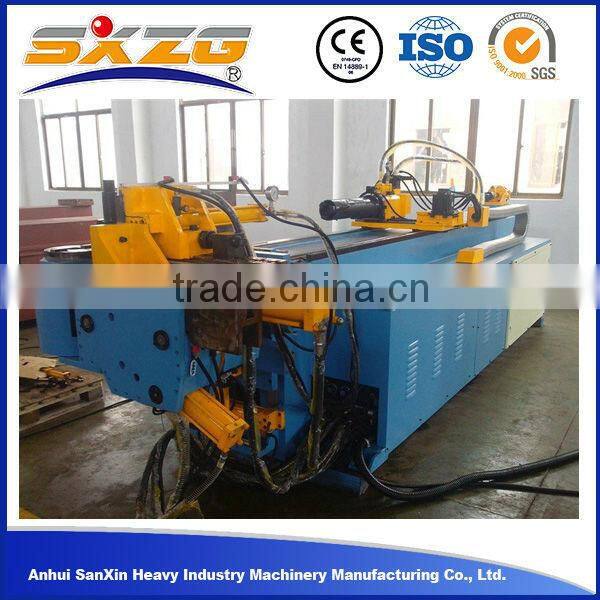

Machine details

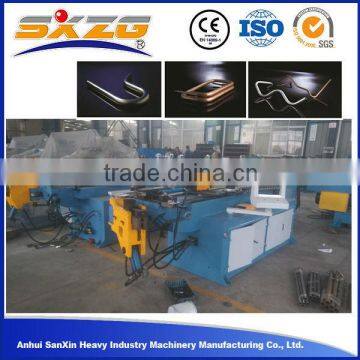

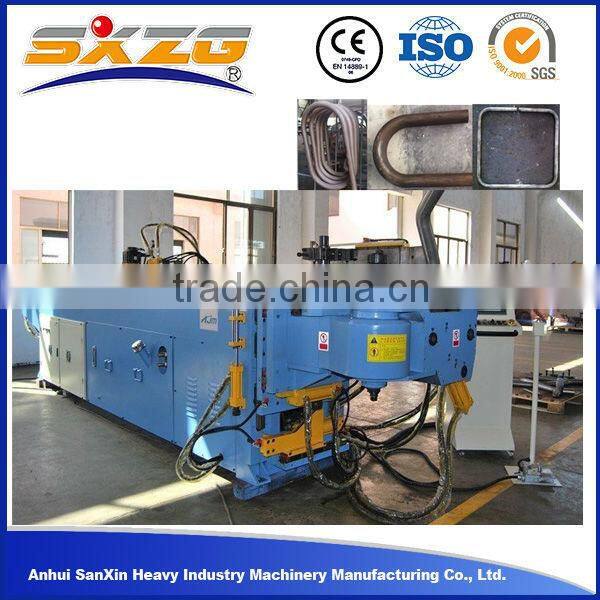

Bending samples
Our service
| 1. Quality Guarantee |
|
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making) Machine warranty is 2 year. We offer flexible extended warranties if needed. |
2. Installation and Training Service |
| Our engineer is available to your factory and offer installation and training service. As well, you may send your engineers to our company to learn how to operate machines. |
Any questions, free to contact us
| Factory information: |
| 1. Company name: Anhui Sanxin Heavy Industry Mechinery manufacturing Co.,ltd |
| 2. Brand: SXZG |
| 3. Address: Bowang Industril Park, Ma’anShan Anhui China |
| 4. Phone: +86-555-8358750 Tel: +86-15655560053 |
| 5. Email: Ann(at) |
| 6.Skype: annyshen5 QQ: 2860861986 |
| 7. Website: |
