Home > Products > New Products > plastic crusher produced by zhongmao machine

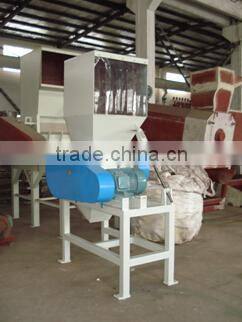

plastic crusher produced by zhongmao machine
- 100 Set / Sets per Month
- shanghai
- T/T
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | zhongmao |
Model Number: | PG500 | Use: | Waste Plastic Crusher | Plastic Type: | PET |
Shaft Design: | Double | Power: | 20-176 | Capacity: | 98% |
Voltage: | 380V-50HZ | Power(W): | 15-132 | Dimension(L*W*H): | 59*39*59IN |
Weight: | 495B | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden case and moisture proof package
Product Description
Specifications
crushers/grinde machine1.best quality&competitive
2.CE&ISO9001
3.perfessional services
4.on time delivery
Product Description:
1. Model: PG500
2. Motor power: 15KW
3. Feeding-Throat size: 500×450mm
4. Rotary knife quantity: 6pcs: 3groups*2pcs
5. Stationary knife quantity: 3pcs: 3groups*1pc
6. Knife gyration diameter: Φ500mm
7. Knife shaft length: 500mm
8. Knife material: Cr12MoV
9. Screen diameter: 12-80mm (can choose)
10. Bearing installation: bearing-rack lay outside.
11. Feeding mouth open method: by rotary pole
12. There is wool felt seal between the main shaft and chest.
13. Thickness for Side board of chest: 25mm
14. Knife shaft through dynamic balance test.
15.The capacity: 150-200Kg/h
Main parameter:
model | power | Feeding-Throat size | Rotary knife quantity | Stationary knife quantity | Knife shaft length | Screen diameter | capacity |
PG500 | 15KW | 500×450mm | 6pcs | 3pcs | 500mm | 12-80mm | 150-200Kg/h |
PG600 | 22KW | 600×450mm | 6pcs | 3pcs | 600mm | 12-80mm | 200-300Kg/h |
PG700 | 37KW | 720×580mm | 6 pcs | 6 pcs | 720mm | 12-80mm | 400-500Kg/h |
PG1000 | 75KW | 1000×680mm | 6pcs | 3pcs | 1000mm | 12-80mm | 600-800Kg/h |
PG1200 | 90KW | 1200×680mm | 6pcs | 3pcs | 1200mm | 12-80mm | 1000-1500Kg/h |
PG1500 | 132KW | 1500×1250mm | 12pcs | 12pcs | 1500mm | 12-80mm | 2000-3000 kg/h |
plastic shredder / plastic crusher / plastic crushing machine:
1. Fully airtight silent designed noise below 80db without 1m away from the machine,
avoids powder contamination;
2. Elegant designed with options available;
3. Installed with heat transmitting system, expel heat generated from the electric motor,
protection and safety without any problem for long hour's operation;
4. Stainless steel material storage tank easy for cleaning and remove, stainless steel
suction spout available upon require;
5. Installed with safety protection system and CE authenticated electrical appliances
meeting the European safety standard;
6. Installed with electrical phase controller and power isolator, safety operation and
simple maintenance;
7. Installed with power isolator, safety operation and simple maintenance;
8. Movable stainless steel multi-positional tray feed and closed for complete soundproof operation.
Company Profile
Zhangjiagang Zhongmao Machinery Co., Ltd. is one of national appointed production enterprises of plastic machinery. Our company is a key enterprise producing plastic machinery in domestic market, such as Waste Plastic Washing & Granulating Lines, PP PE Film Machines, PVC, PP, PE & PET Bottle Washing and Granulating Machines, Extruders for Pipes, Sheets and Profiles, Label Removers, Shredders & Crushers, Packing Machines/Balers, and Auxiliary Machines. The recycled & regenerated machines for waste, old and new plastic are the most professional ones.
In recent years, our company has continuously introduced advanced production technique and management methods and has obtained good comments from our customers. We can also provide customized non-standard items or items of special specifications based on the field status and customers' special requirements.
With advanced techniques, favorable prices and excellent service, we are dedicated to cooperating with friends worldwide. Please feel free to contact us for further information.
