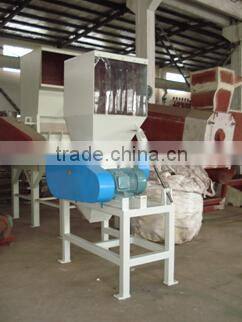

plastic shredder / plastic crusher / plastic crushing machine
1. Fully airtight silent designed noise below 80db without 1m away from the machine,
avoids powder contamination;
2. Elegant designed with options available;
3. Installed with heat transmitting system, expel heat generated from the electric motor,
protection and safety without any problem for long hour's operation;
4. Stainless steel material storage tank easy for cleaning and remove, stainless steel
suction spout available upon require;
5. Installed with safety protection system and CE authenticated electrical appliances
meeting the European safety standard;
6. Installed with electrical phase controller and power isolator, safety operation and
simple maintenance;
7. Installed with power isolator, safety operation and simple maintenance;
8. Movable stainless steel multi-positional tray feed and closed for complete soundproof
operation.
Main parameter:
model |
power |
Feeding-Throat size |
Rotary knife quantity |
Stationary knife quantity |
Knife shaft length |
Screen diameter |
capacity |
PG500 |
15KW |
500×450mm |
6pcs |
3pcs |
500mm |
12-80mm |
150-200Kg/h |
PG600 |
22KW |
600×450mm |
6pcs |
3pcs |
600mm |
12-80mm |
200-300Kg/h |
PG700 |
37KW |
720×580mm |
6 pcs |
6 pcs |
720mm |
12-80mm |
400-500Kg/h |
PG1000 |
75KW |
1000×680mm |
6pcs |
3pcs |
1000mm |
12-80mm |
600-800Kg/h |
PG1200 |
90KW |
1200×680mm |
6pcs |
3pcs |
1200mm |
12-80mm |
1000-1500Kg/h |
PG1500 |
132KW |
1500×1250mm |
12pcs |
12pcs |
1500mm |
12-80mm |
2000-3000 kg/h |
After-sales service
(1) If customer has any question, we will help them to solve immediately.
(2) We offer one year warranty, if the machine has any problem, you will
get the feedback fromus immediately. We will provide technical support
for free
Product Description:
PG500 Crusher Unit Price: USD 5,000.00
1. Model: PG500
2. Motor power: 15KW
3. Feeding-Throat size: 500×450mm
4. Rotary knife quantity: 6pcs: 3groups*2pcs
5. Stationary knife quantity: 3pcs: 3groups*1pc
6. Knife gyration diameter: Φ500mm
7. Knife shaft length: 500mm
8. Knife material: Cr12MoV
9. Screen diameter: 12-80mm (can choose)
10. Bearing installation: bearing-rack lay outside.
11. Feeding mouth open method: by rotary pole
12. There is wool felt seal between the main shaft and chest.
13. Thickness for Side board of chest: 25mm
14. Knife shaft through dynamic balance test.
15.The capacity: 150-200Kg/h
16. The price of blades: USD 620.00/Sets
Remarks:
1) Lead-time: 20 working days after order confirmed.
2) Guarantee period: 14 monthes after shipping.
3) Payment term: 30% of total amount should be pre-paid by T/T. After this amout is paid, the contract becomes effective. 70% of the total amount should be paid by T/T after inspection and before delivery.
4) All the price is FOB SHANGHAI
