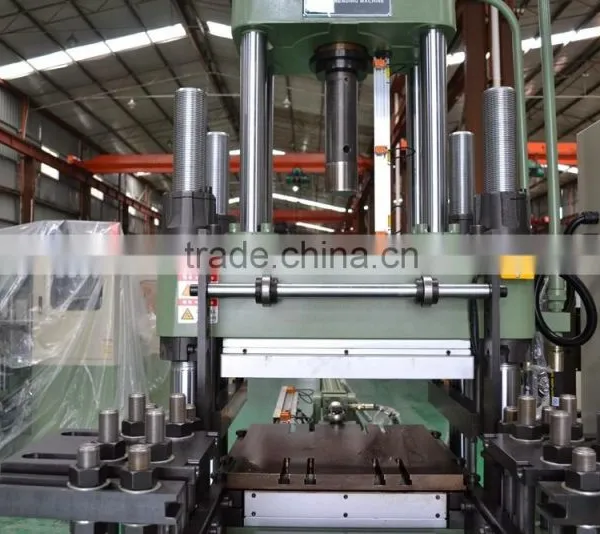

100 Ton Vertical Rubber Injection Moulding Machine
Model: S-Z-100-4RT-1-PCD
Please contact
Name: Tammy Yan
Mobile and WhatsApp: +86 18329021230
Wechat: YQY932570502
Technical Parameter:
Model: S-Z-100-4RT-1-PCD
Type: four column, single station
Clamping force: 100 ton
Piston diameter: 250mm
Feeder cylinder diameter: 80mm
Injection capacity: 1400cc
Injection pressure: 110mpa
Piston stroke: 300mm
Injection stroke: 435mm
Space of heating plates: 180-430mm
Size of upper heating plate :500x500mm
Quantity of heating plate: upper and lower
Type of mold opening: 4RT
Heating method: electric heating tube
Parts List:
| Name | Brand |
| PLC | Omron |
| Touch panel | Monitouch |
| Vacuum pump | Elmo Rietschle |
| Pressure gauge | FTB |
| Proportional valve | Yuken |
| Direction valve | Yuken |
| Main electric elements | Schneider |
| Heating control system | Schneider |
| Temperature control system | Omron |
Rubber Injection Moulding Machine Feature

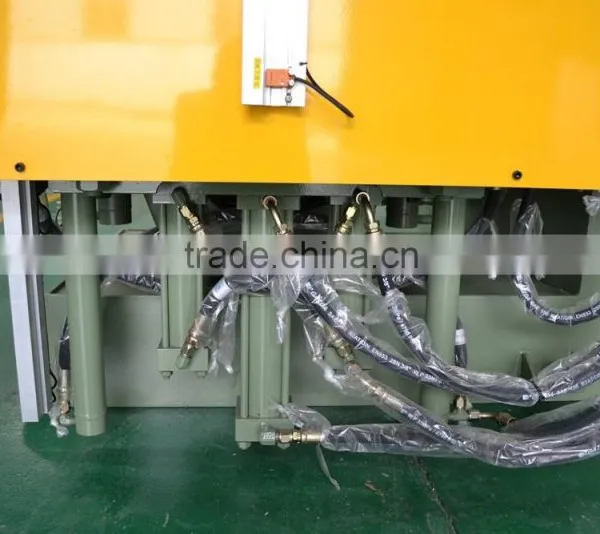

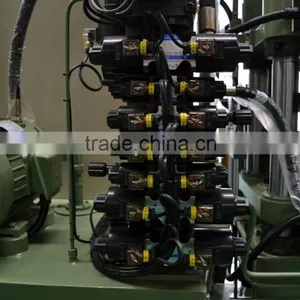

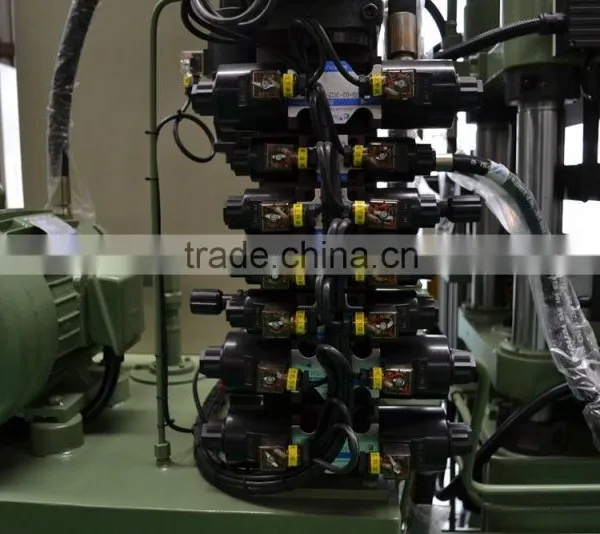

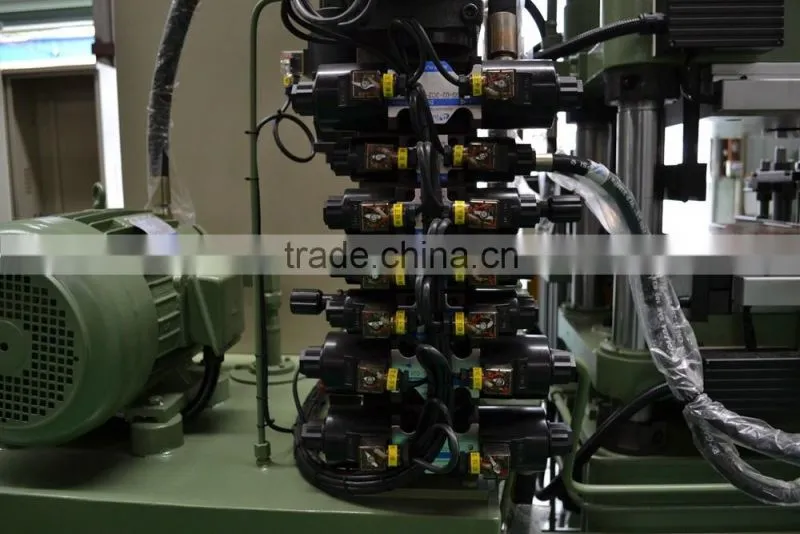

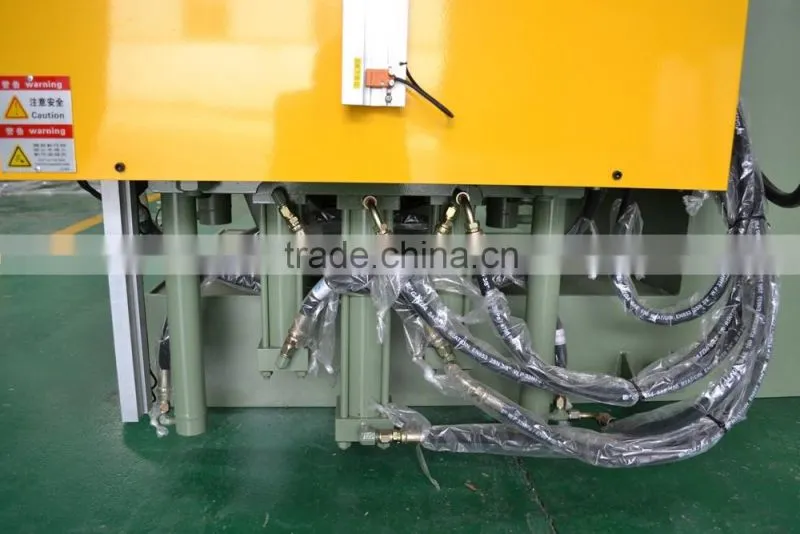

Hydraulic System
- Efficent, stable, durable, energy-effcient
- The Japanese Yuken quantitative variable pump is used as the oil pump
- Energy- effcient and durable
- Import cartridge valve
- Import seal ring

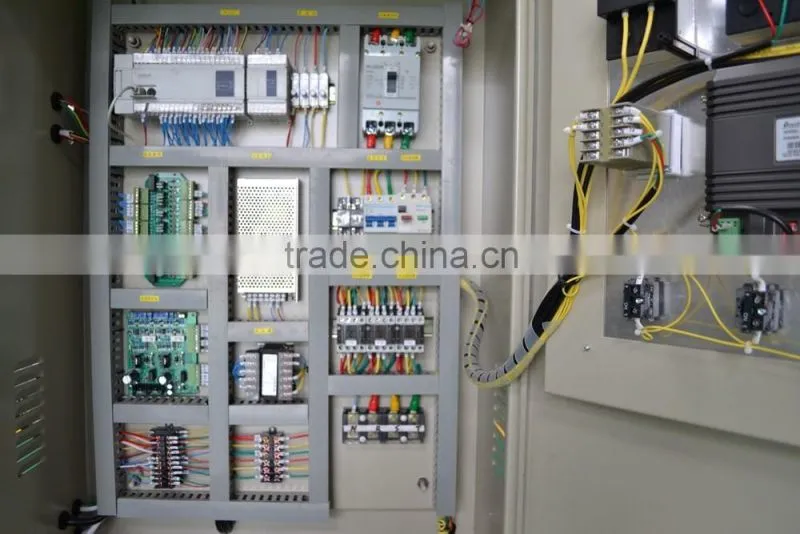

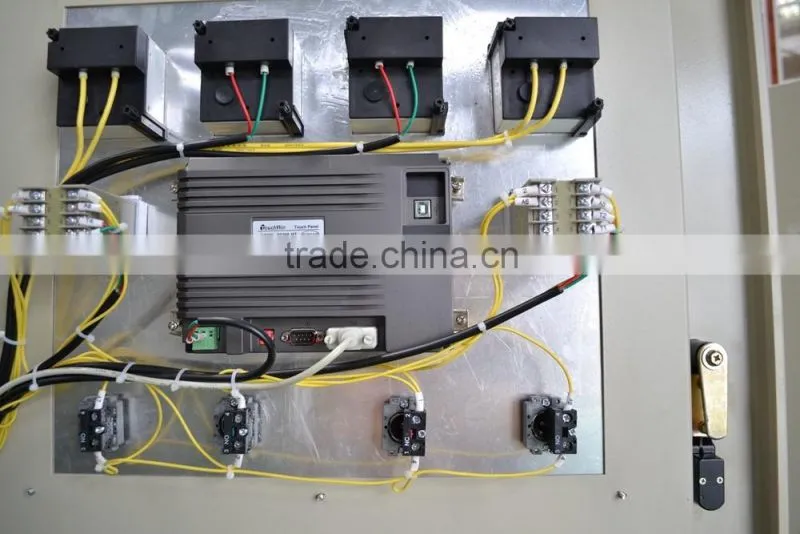

Control System
- Imported control components
- It can be flexibly chosen through functional control
- Input and display through touch screen
- Memory module for mold parameter
- Safety action interlock, protective design
The weight of our machine is 5 ton, 1 ton heavier than other supplier's.
The diameter of our column is 1cm bigger than other supplier's.
Auxiliary Machine:
We can also provide molds, internal mixer, open mixing mill, rubber strip cutting machine, de-flashing machine, rubber preforming machine, rubber separator, rubber slitting machine and so on. So we can provide rubber solution for you if you interested!

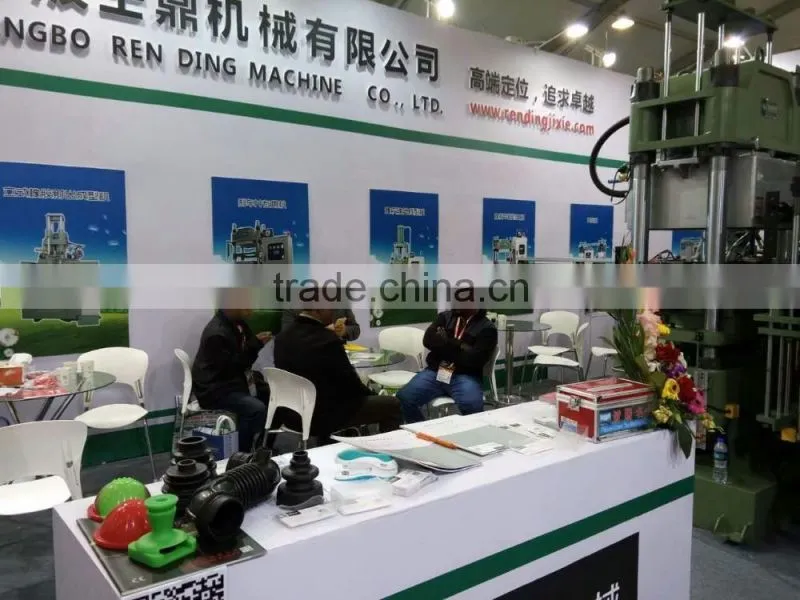

2016 Shanghai China Plastic:
100Ton Rubber And Silicone Injection Moulding Machine Show:

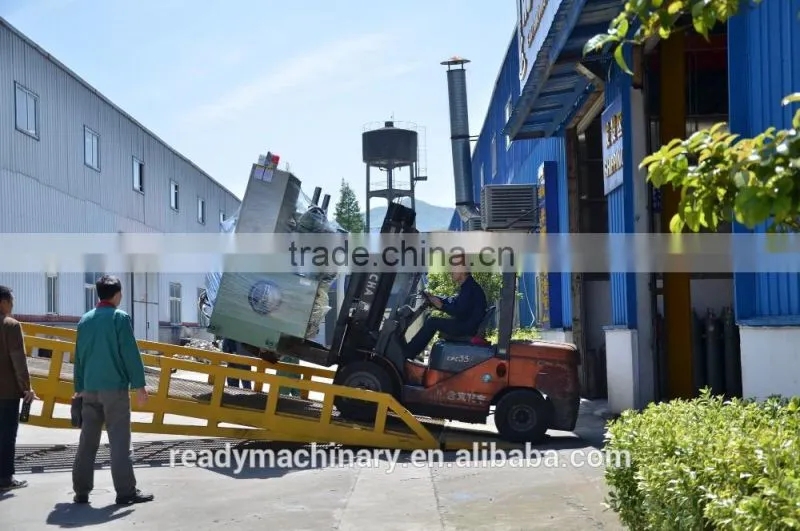

Packaging:
FCL: plastic film
LCL: wooden case

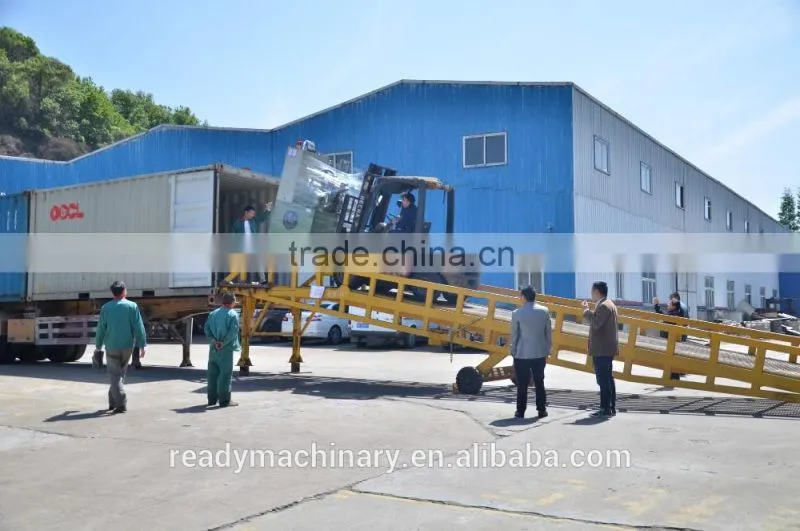

Shipping
30 days after deposit
1. Rending will provide the contact information of responsible person, and we will provide 24 hours after sales service consultation the whole year.
2. Free debugging for newly purchased equipemnt, provide free teachnical and guidance.
3. During the warranty period, the seller can provide home repair service, and a small amount of labor and parts expenses will be changed in accordance with the specific situation.
4. Rending will keep maintenance for each shipped equipment for regular tracking and return visit.
Ningbo Rending Machinery CO.,Ltd. is created by a team with rich rubber machinery manufacturing experiences, which provides forming machinery manufacturing of rubber products that combines R&D(research and development), production and sales. By introducing advanced foreign manufacturing technology and using first-rate parts and components, with high-end positioning, we pursue excellence, and we have won trust and good opinion from our massive customer's with thoughtful service.
If you interested or have any problem, please give me enquiry, thanks!!!
Contact:Tammy Yan
Wechat: YQY932570502
Tel/ WhatsAPP: +008618329021230
