37kw 50hp screw type silent electric air compressor

Name: 37kw 50hp screw type silent electric air compressor
Brand: Tuowei
Price: USD $3,300 - 4,000 / Piece

FOB Price

USD $3,300 - $4,000 / Piece

1 Piece(Min.Order)

Supply Ability 30 Set / Sets per Month
Port GUANGZHOU
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

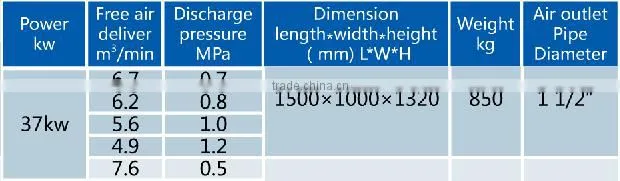

Condition:	New	Type:	Screw	Configuration:	Stationary
Power Source:	AC Power	Lubrication Style:	Lubricated	Mute:	Yes
Place of Origin:	Fujian, China	Brand Name:	Tuowei	Model Number:	SG37
Voltage:	380v/3ph/50hz(or Customized)	Dimension(LWH):	150010001320mm	Weight:	850kg
Certification:	ISO,CE	Warranty:	2 Years	After-sales Service Provided:	No overseas service provided

Product Description

37kw 50hp screw type silent electric air compressor

Technical details :

stationary screw

Company Information

Fuzhou Tuowei Mechanical&Electrical Equipment Co.,Ltd is a high-tech industry equipment. Our company professional supply rotary screw air compressor, diesel portable compressor, oil free compressor ,drilling rig,dryer and parts. We had established a supply-and-distribution network that consists of well-know dealer and manufacturers in the air compressor business. The equipment is widely implemented in industry such as textile, steel, mining, railway and municipal engineering.

Screw Air compressor Technical Specifications:

Model		SG08	SG11	SG15	SG18	SG22	SGD22	SG30	SGD30
Capacity / Pressure (m³/min / Mpa)		1.2/0.7	1.7/0.7	2.4/0.7	3.1/0.7	3.8/0.7	3.8/0.7	5.2/0.7	5.2/0.7
		1.1/0.8	1.6/0.8	2.2/0.8	2.9/0.8	3.5/0.8	3.5/0.8	5.0/0.8	5.0/0.8
		0.95/1.0	1.4/1.0	2.0/1.0	2.7/1.0	3.2/1.0	3.2/1.0	4.3/1.0	4.3/1.0
		0.8/1.3	1.2/1.3	1.7/1.3	2.2/1.3	2.9/1.3	2.9/1.3	3.7/1.3	3.7/1.3
Motor	Power (KW)	7.5	11	15	18.5	22	22	30	30
Motor	Horsepower	10	15	20	25	30	30	40	40
Noise dB(A)		65±2	68±2	68±2	69±2	69±2	69±2	69±2	69±2
Air Outlet Pipe Diameter		G3/4	G3/4	G3/4	G1 1/4	G1 1/4	G1 1/4	G1 1/4	G1 1/4
Weight (kg)		200	335	350	500	500	520	560	650
Housing dimension	L(mm)	750	950	930	1100	1100	1300	1100	1500
	W(mm)	650	770	770	850	850	850	850	1000
	H(mm)	830	1100	1100	1300	1300	1150	1300	1300
Cooling air Flow ( m³.min)		23	91	91	100	100	100	100	100

Model		SG37	SGD37	SG45	SGD45	SG55	SGD55	SG75
Capacity / Pressure (m³.min/Mpa)		6.4/0.7	6.4/0.7	8.0/0.7	8.0/0.7	10.5/0.7	10.5/0.7	13.6/0.7
		6.1/0.8	6.1/0.8	7.7/0.8	7.7/0.8	9.8/0.8	9.8/0.8	13.3/0.8
		5.7/1.0	5.7/1.0	7.0/1.0	7.0/1.0	8.7/1.0	8.7/1.0	11.6/1.0
		5.1/1.3	5.1/1.3	5.8/1.3	5.8/1.3	7.5/1.3	7.5/1.3	9.8/1.3
Motor	Power (KW)	37	37	45	45	55	55	75
Motor	Horsepower	50	50	60	60	75	75	100
Noise dB(A)		70±2	70±2	72±2	72±2	73±2	73±2	75±2
Air Outlet Pipe Diameter		G1 1/2	G1 1/2	G1 1/2	G1 1/2	G2	G2	G2
Weight (kg)		700	720	700	900	1230	1350	1350
Housing dimension	L(mm)	1200	1500	1200	1500	1500	1650	1550
	W(mm)	1000	1000	1000	1000	1150	1170	1270
	H(mm)	1420	1300	1420	1300	1500	1440	1500
Cooling air Flow ( m³.min)		180	180	191	191	320	320	330
Water Cool	T/H Water Flow	-	-	3	3	5	5	5
Water Cool	m³/min Air Flow	-	-	23	23	23	23	23

Warranty

Two years for air end,one year for whole machine.

Contact details

FUZHOU TUOWEI MECHANICAL & ELECTRIAL EQUIPMENT CO., LTD

Add:#1401-1402 No.14Building ,Haixibaiyuecheng, No.120 Fuxia Road,Cangshan District,Fuzhou,Fujian,China
Tel:86-591-83753886
Fax:86-591-83790287
Mobile:86-13599041824

Whatsapp:+86-13599041824

Skype: hajarliu

Contact Us

Fuzhou Tuowei Mechanical & Electrical Equipment Co., Ltd.: Contact nameSindy Zheng; Phone86-591-83753886; Address14F 14BUILDING HAIXIBAIYUANCHENG 10#SHEYUAN ROAD LUOZHOU TOWN CHANGSHAN DISTRICT FUZHOU CHINA Fuzhou,Fujian
