Vertical 4RT Rubber Transfer Type Molding Machine
Please contact
Name: Spring
Mobile and WhatsApp: +86 13567193083
Wechat: 13567193083
Technical Parameter
Model: S-Z-100-4RT-1-PCD
Type: four column, single station
Clamping force: 100 ton
Piston diameter: 250mm
Feeder cylinder diameter: 80mm
Injection capacity: 1400cc
Injection pressure: 110mpa
Piston stroke: 300mm
Injection stroke: 435mm
Space of heating plates: 180-430mm
Size of upper heating plate :500x500mm
Quantity of heating plate: upper and lower
Type of mold opening: 4RT
Heating method: electric heating tube
Main Configuration
PLC: Xin Je
Touch panel: TouchWin
Direction valve: Dan Xin
Proportional: Northman
Heating control system: Schneider
Machine Feature
1. The weight of our machine is 5 ton, 1 ton heavier than other supplier's.
2. The diameter of our column is 1cm bigger than other supplier's.
Applicable Products
auto parts, o ring, seal ring, key, bottle stopper, rubber packing, medical rubber, etc.
Matched Machine
We can also provide molds, internal mixer, open mixing mill, rubber strip cutting machine, de-flashing machine, rubber preforming machine, rubber separator, rubber slitting machine and so on.
So we can provide rubber solution for you.
We attended ChinaPlas2016 in Shanghai from 25th, Apr to 28th, Apr.

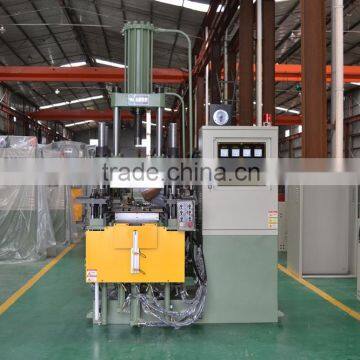

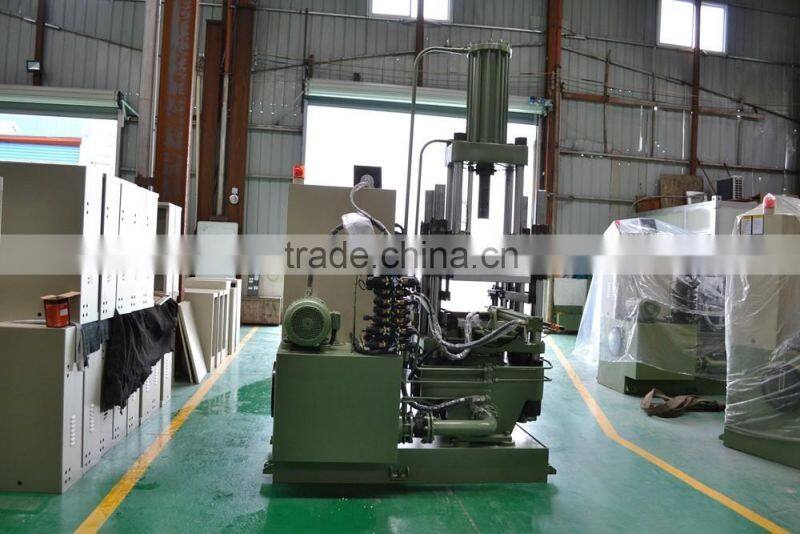

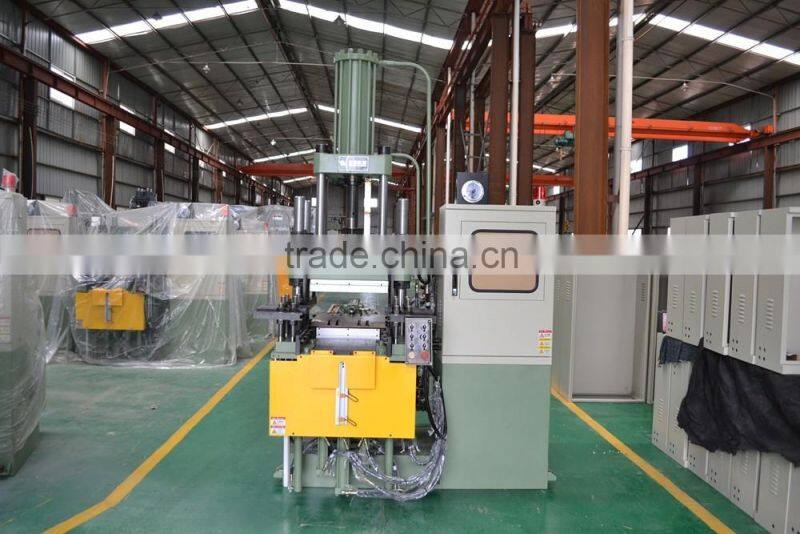

Whole machine picture
Machine detailed picture

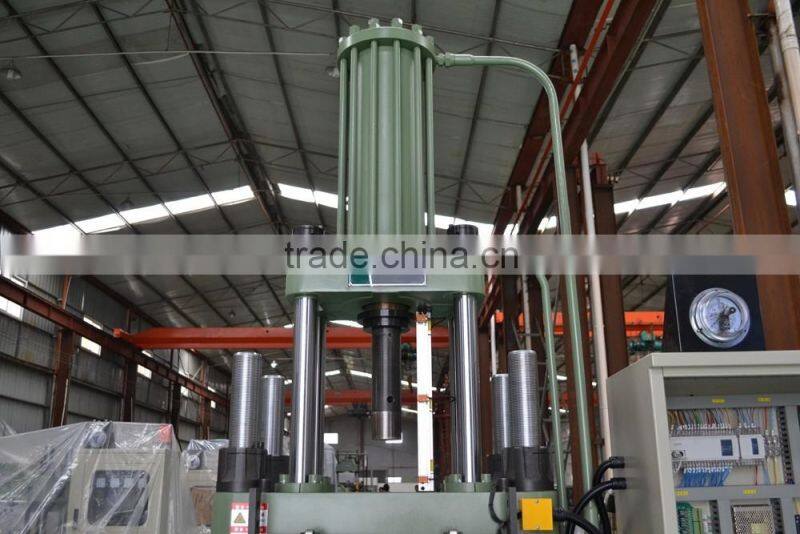

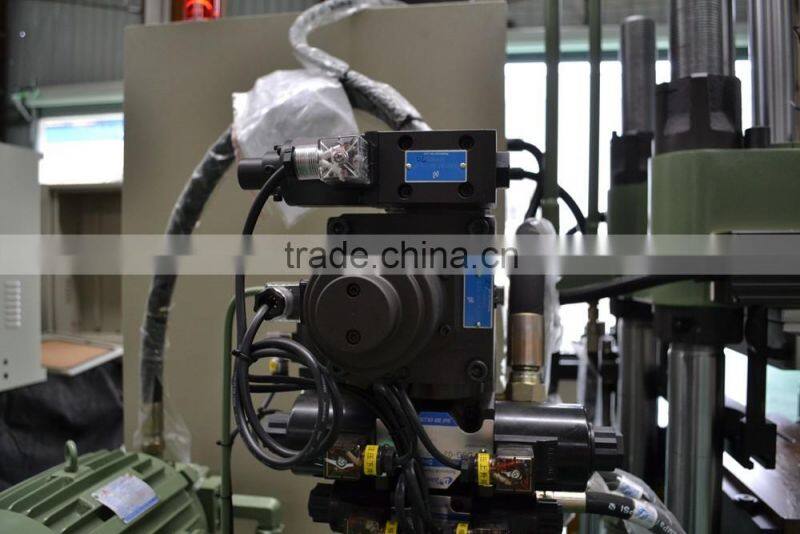

injection parts

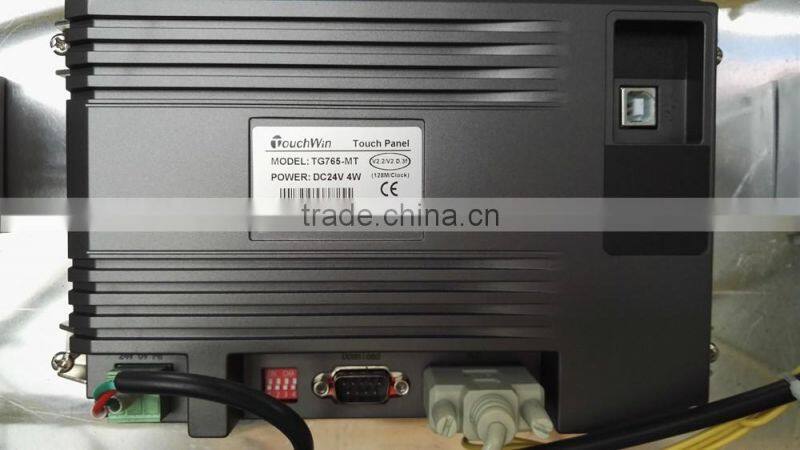

touch screen

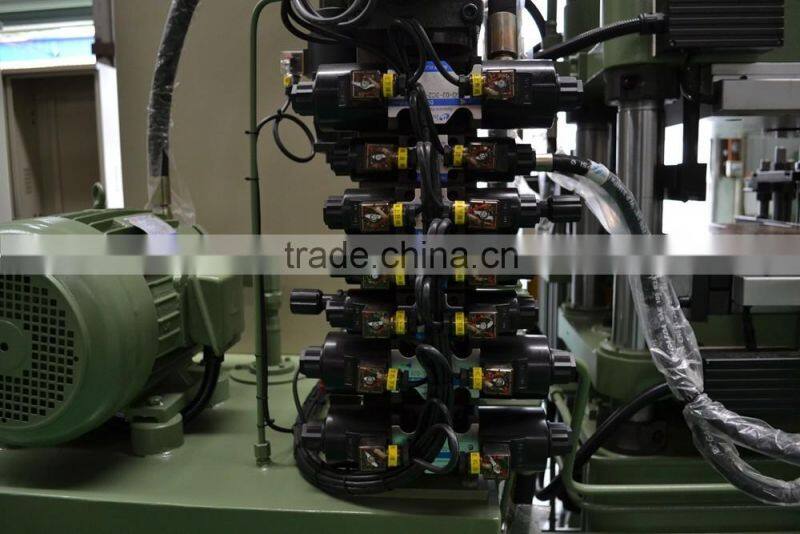

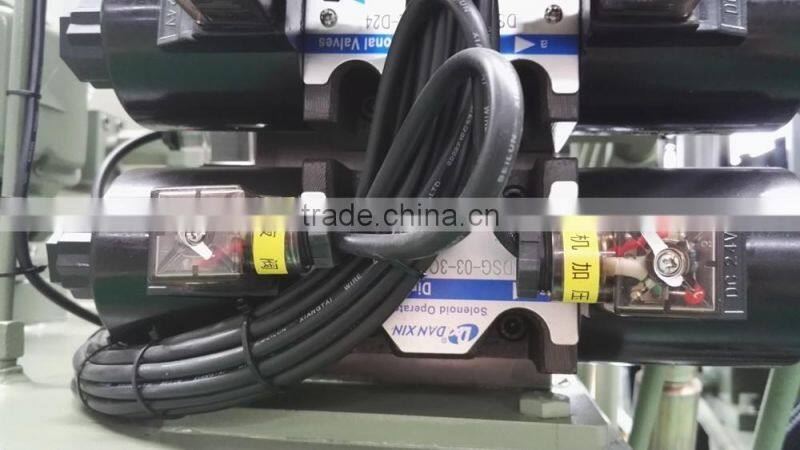

direction valve

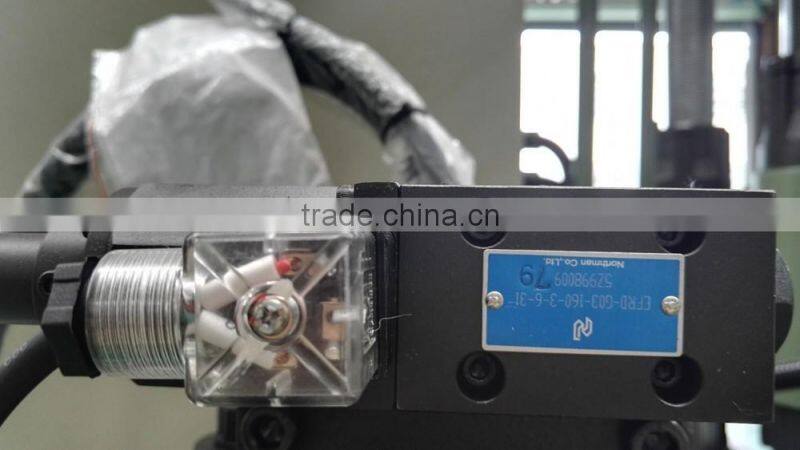

proportional valve

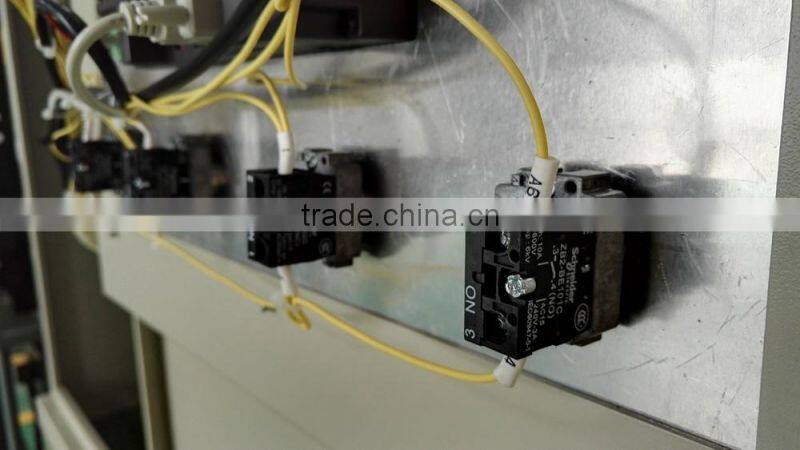

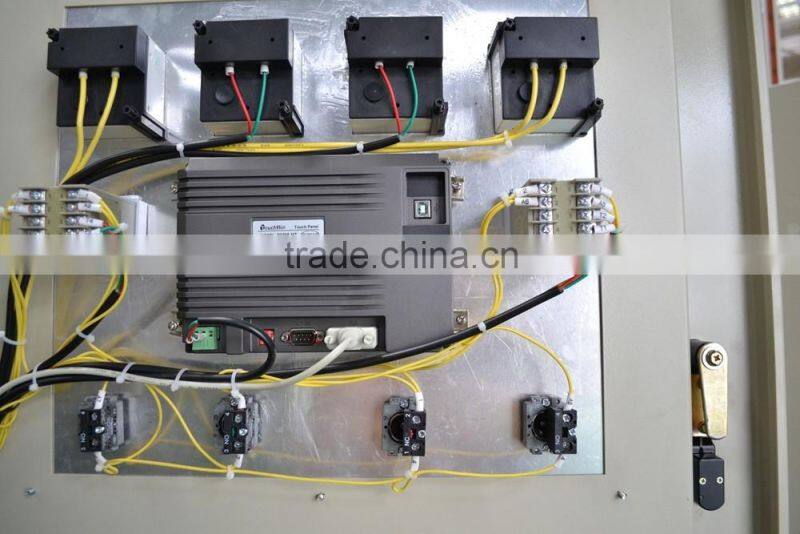

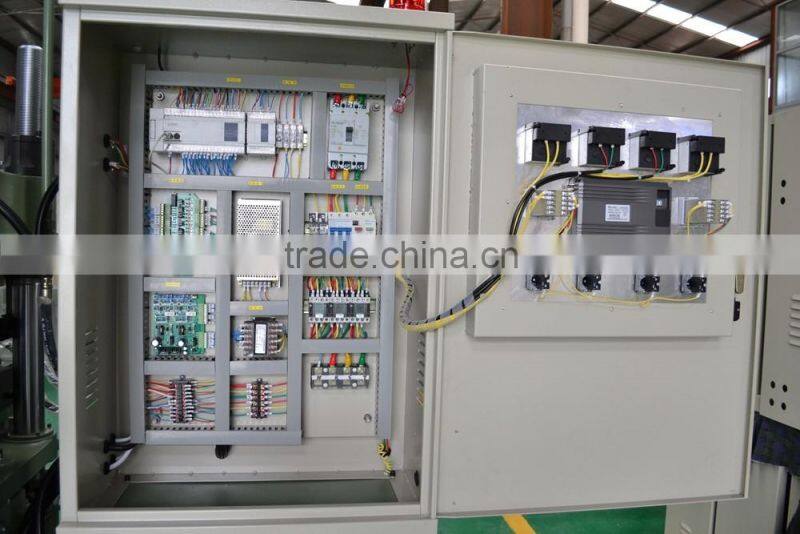

electric control box

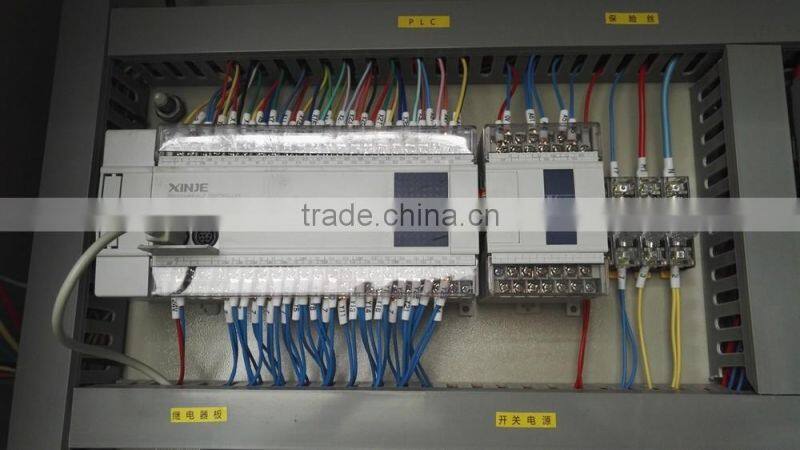

PLC

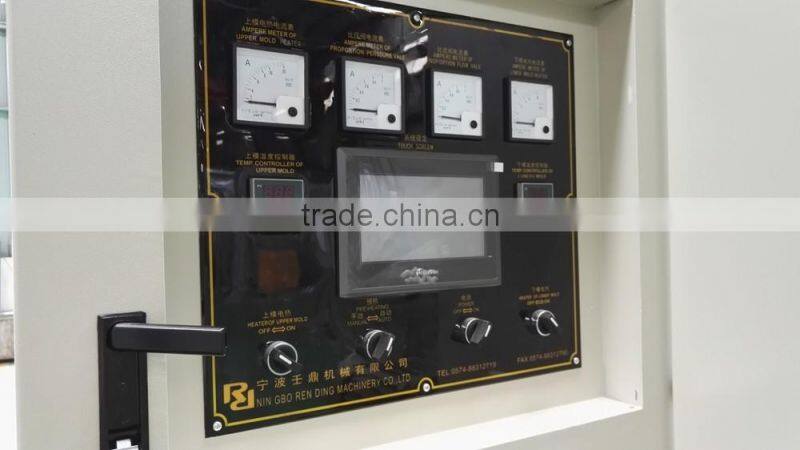

heating control
Container Loading
