Automatic 3D GluIing Robot/ Heterotype/ glue spray machine suitable for producing speaker, receiver, amplifier, buzzer

FOB Price

USD $800 - $1,000 / Piece

1 Piece(Min.Order)

Supply Ability 500 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Jiahong
Model Number	JH802

Product Description

Specifications

20years professional experience
Advanced microchip control
Self-designed software
digital timer control
3D heterotyoe

Automatic Round GluIing Robot single glue syringe /

speaker, receiver, amplifier, buzzer

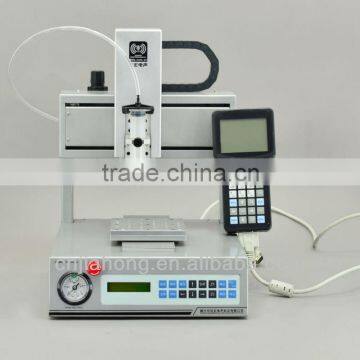

Item: Automatic 3D Glue Robot( Single glue syringe)
Item No.JH802A
Size : 360*300*440mm(base included)

Performance Parameter

JH802	Dimension	300mm×360mm×440mm
	Work Route	Standard 120mm×120mm Operating platform Max Support 200mm×200mm Max Processing axis:X,Y,Z:200mm×200mm×50mm
	Repeat Positioning Accuracy	0.01mm
	Operating Resolution	0.01mm
	Max Operating Speed	700mm/s
	Programmer	Hand-held Guide Programer
	Task Memory Capacity	99(robot),999(programmer)
	Cooling Way	Fan
	Working Temperature	15-90°C
	Input Voltage	220V±10%,50/60Hz
	Power	240W

Introduction

JH802 series glue robots, of 3D working route, are specially designed for glue dispensing, glue spreading and welding of electro-acoustic device, small and medium electronic components.
After Structure optimization design, JH802 is the most compact glue robot of similar structure and function worldwide.
Super convenient ergonomical production line arrangement raise assembly efficiency sharply.
Independent digital display makes operation simple
Apply the most advanced hand-held programmer , lead-free stepper motor driving control system and special and easy operating JH80X glue dispensing software.
JH802 is with whole programming function, with same memory capacity as other large JH80X glue robot, with all exist characteristics as other more expensive auto glue robots.
Apply industry’s leading software: directed by hand-held guide programmer, operator can complete complicated glue spreading programming in minutes

Application

H802 series are applicable to all kinds of small & medium heterotype (include round) electro-acoustic devices, or other single/double liquid heterotype (include round) trace glue sealing and welding,such as speakers, receivers, sounders, buzzers, etc.

Optical Models(According to operation mold)

Item No.

Glue tank

Applicable

Operation Mold

JH802

Single glue tank

Normal glue tank apply to large daily use and High viscosity glue.

Off-center glue tank apply to large daily use and low viscosity glue

Single point

JH802A

Single syringe

Apply to little daily use or high viscosity glues

Single point

JH802plus

Single glue tank(Straight extrusion)

Normal glue tank apply to large daily use and highviscosity glue

Single point

JH802-D

Double glue tank

Normal glue tank apply to large daily use and High viscosity glue.

Off-center glue tank apply to large daily use and low viscosity glue

AB mixed
Dual-point

JH802A-D	Double syringe	Apply to little daily use or high viscosity glues	AB mixed Dual-point
JH802-M	Multi-syringe/tank		Multi-point

Selectable Configuration

1. JH60B01 Glue syringe

2. JH60B02 Geneal glue tan

3. JH60B03 Off-center glue syringe
