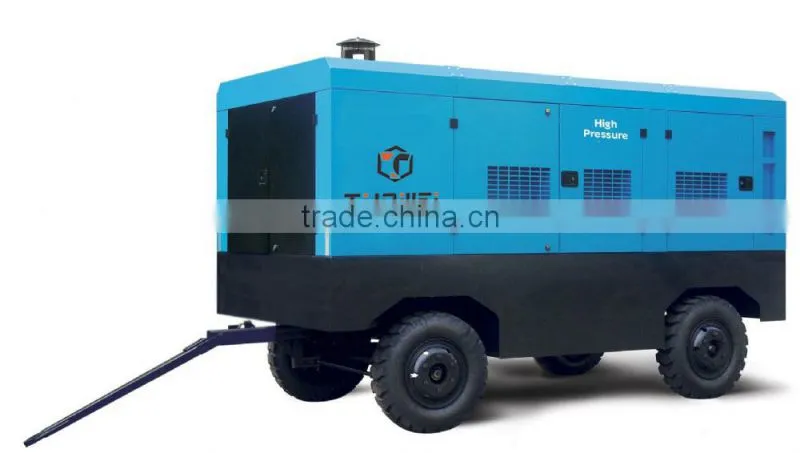

Mobile diesel rotary screw cement trailer compressor
We are a professional compressor supplier diesel portable compressor, stationary electric drive compressor and oil free compressor. With 35engineers,3000sets output per month, famous compressor vendor for China High Speed Rail Way Project.
You can see product details as below:

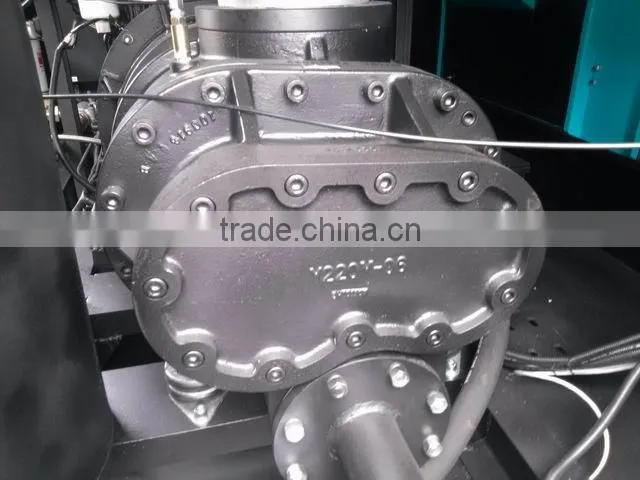

1. Air end:Patented line of large-diameter rotor design.Airend and diesel is directly connected through high-elastic coupling without increasing gear. Speed of air end is consistent with the diesel engine which make it higher efficiency, better reliability and longer life.

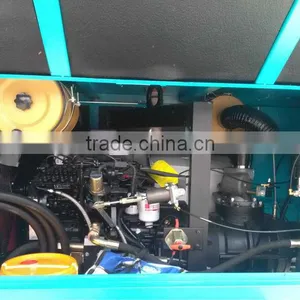

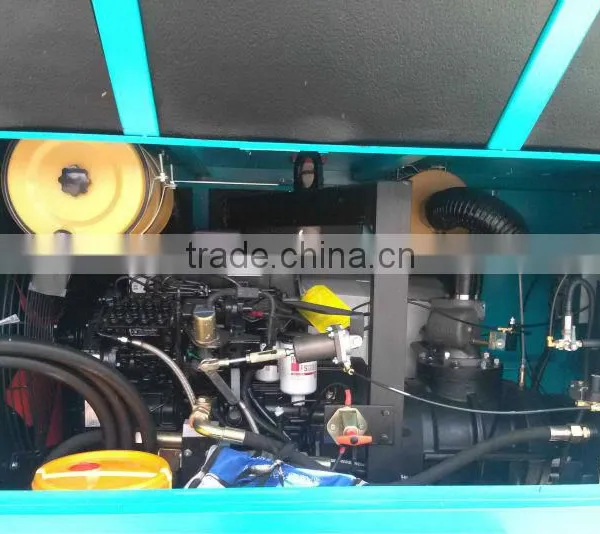

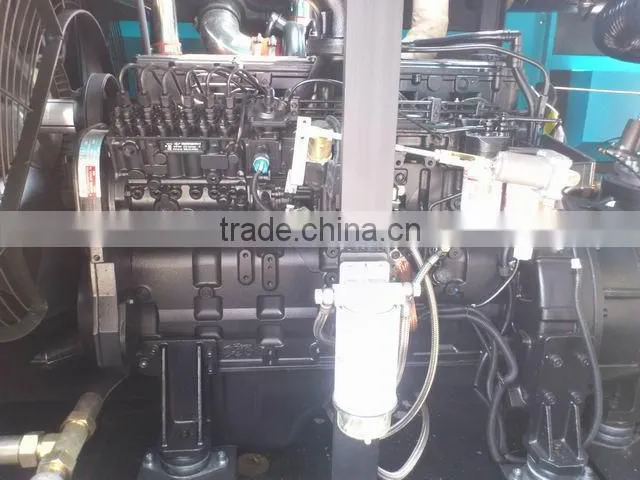

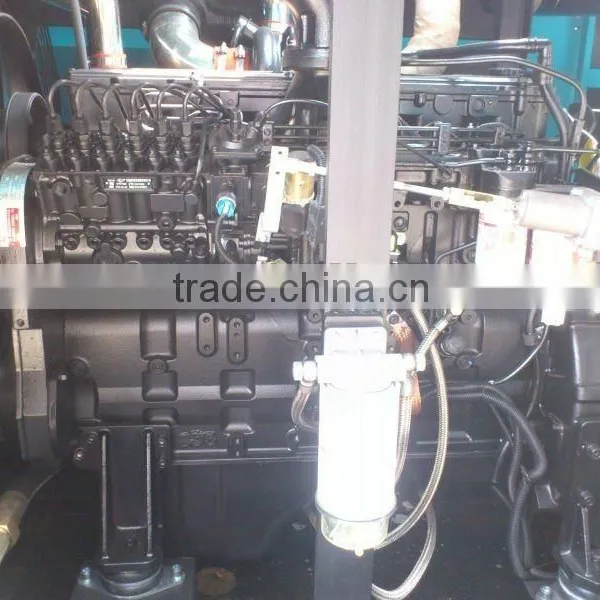

2.Diesel Engine :Using the famous diesel engine, like the Steyr, Yuchai and so on. Strong power, reliable operation, fuel saving and low-level emissions and noise.
3.The air control system is simple and reliable. Inlet rate from 0 to 100% and be adjusted automatically depending on the gas consumption.Automatically adjust the engine throttle to save diesel fuel.

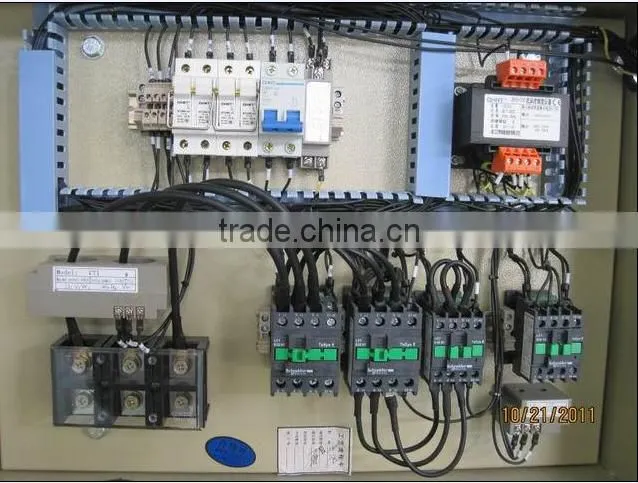

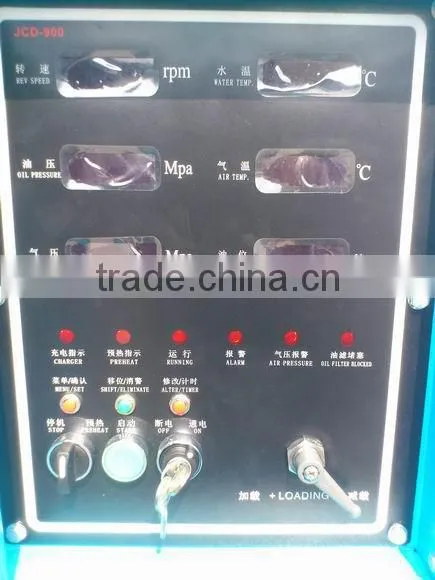

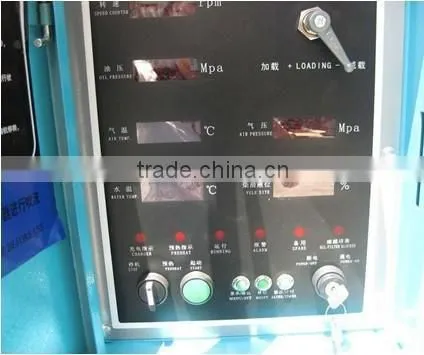

4.Microcomputer intelligent control air compressor discharge pressure, exhaust gas temperature, engine speed, oil pressure, water temperature and fuel tank level operating parameters with automatic alarm and shutdown protection.

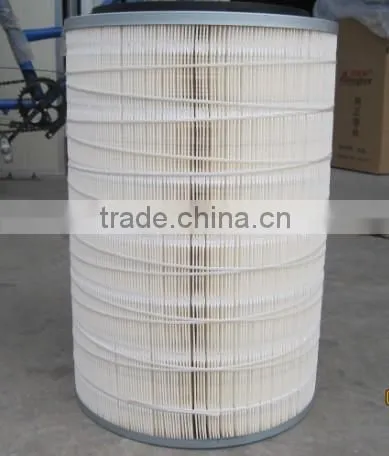

5. Multi-stage air filter, suitable for dusty work environment; multi-stage fuel filter; large oil-water cooler, suitable for high temperature, high altitude environment.

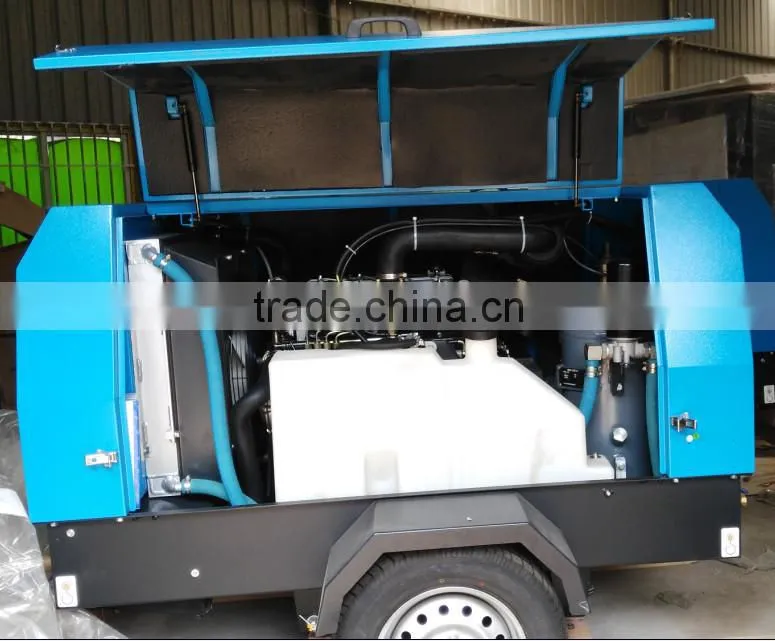

6.Spacious maintenance doors, parts and components to be maintained within the accessible range, the maintenance of air filters, oil filters, fuel tanks, batteries and oil coolers are convenient and easily which reducing downtime.
7.Easy to move in rough terrain conditions can still be mobile and flexible. Each compressor configuration rings for safe hoisting and transportation.
Applicant:
Factory Information
Catalogue
| Portable Diesel Screw Compressor | ||||||
| Style No. | Capacity | Pressure | Diesel Brand | Diesel | Weight | Dimension |
| cfm | Psi | kg | mm×mm×mm | |||
| SYC-3.6/7 | 127 | 102 | YTO | YND485G,22KW | 652 | 2630X1318X1280 |
| SYC-5/7 | 177 | 102 | YTO | YSD490G,32KW | 880 | 2821X1470X1361 |
| SYC-6/7 | 212 | 102 | YUCHAI | YCD4B22-95,70kW | 1400 | 3750×1920×1700 |
| SYC-7.5/7 | 265 | 102 | YUCHAI | YC4D80-K11,58kW | 1850 | 3900×1920×1700 |
| SYC-8.5/14 | 300 | 203 | CUMMINS | 4BTA3.9-C125,93kW | 1900 | 3750×1920×1900 |
| SYC-9/7 | 318 | 102 | YUCHAI | YC4D95Z-K20Y,70kW | 1850 | 3900×1920×1700 |
| SYC-9/14.5 | 318 | 210 | YUCHAI | YC6B150Z-K20,110kW | 2380 | 4080×1980×2350 |
| SYC-10/7 | 353 | 102 | YUCHAI | YC4D95Z-K20,70kW | 1900 | 3900×1920×1700 |
| SYC-10/10 | 353 | 145 | CUMMINS | 4BTA3.9-C125,93kW | 1900 | 3900×1920×1900 |
| SYC-10/13 | 353 | 189 | YUCHAI | YC6B150Z-K20,110kW | 2050 | 4080×1980×2350 |
| SYC-12/7 | 424 | 102 | CUMMINS | 4BTA3.9-C125,93kW | 2050 | 3900×1980×1900 |
| SYC-12/10 | 424 | 145 | YUCHAI | YC6B150Z-K20,110kW | 2380 | 4080×1980×2350 |
| SYC-12/12 | 424 | 174 | CUMMINS | EQ6BT5.9-C160,118kW | 2380 | 4080×1980×2350 |
| SYC-12/13 | 424 | 189 | CUMMINS | 6BTA5.9-C180,132kW | 2750 | 3450×1520×2350 |
| SYC-13/13 | 459 | 189 | CUMMINS | 6BTA5.9-C180,132kW | 2750 | 3350×1520×2220 |
| SYC-15/13 | 530 | 189 | STEYR | WD415.23,166kW | 3350 | 3380×1650×2500 |
| SYC-22/8 | 777 | 116 | CUMMINS | 6CTA8.3-C260,194kW | 4000 | 4580×1950×2600 |
| SYC-22/13 | 777 | 189 | YUCHAI | YC6M340L-K20 250kW | 4500 | 4580×1950×2600 |

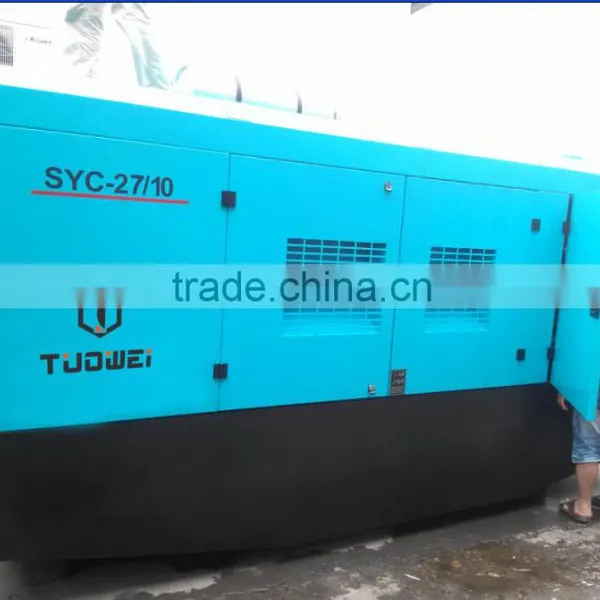

| SYC-27/10 | 953 | 145 | YUCHAI | YC6M340L-K20 250KW | 5000 | 4600×1950×2600 |
| SYC-32/10 | 1130 | 145 | YUCHAI | YC6M395L-K20 288KW | 5000 | 4600×1950×2600 |
| Diesel Portable Screw Two Stages compression | ||||||
| SYC-19.5/19 | 688 | 275 | CUMMINS | 6CTA8.3-C260,194kW | 3700 | 3650×1800×2500 |
| SYC-22/20 | 777 | 290 | YUCHAI | YC6M395L-K20,288kW | 4850 | 4450×1950×2650 |
| SYC-22/20K | 777 | 290 | CUMMINS | 6LTAA8.9-C360,265kW | 4500 | 4600×1950×2850 |
| SYC-26/20 | 918 | 290 | CUMMINS | 6LTAA8.9-C360,265kW | 4850 | 4600×1950×2850 |
| SYC-33/35 | 1165 | 507 | 5500 | 4700×2100×2500 | ||
Warranty
Two years for air end,one year for whole machine.
Contact details
Ms.Sindy Zheng
Tel:86-591-83753886
Mobile:86-13705064277
Skype:sindyz08
