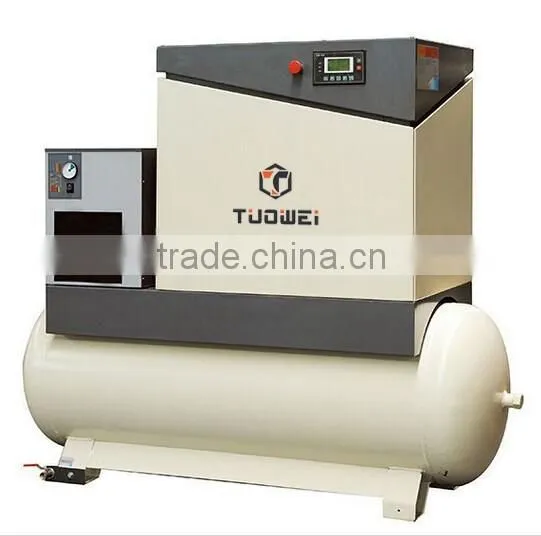

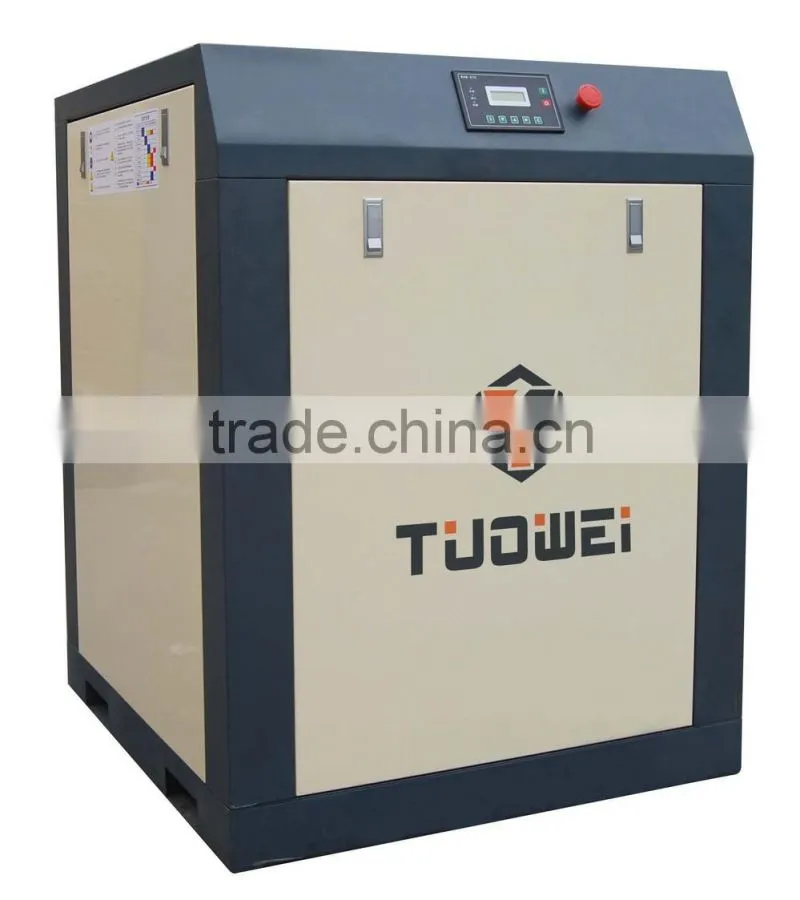

Compressed air receiver tank

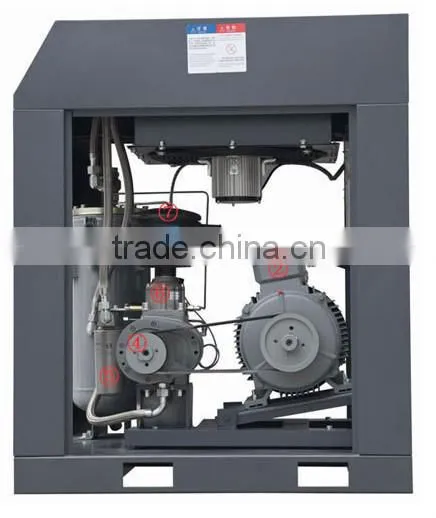

1.Air end:By using the most advanced 3rd generation 5:6 rotors and the optimized rotor profile
from Europe, our air end are the best-in-class with low noise, low energy consumption, low maintenance cost, and long reliable service life.
2.Motor :With the tailor-made low RPM motor and the isolation rate F SKF bearings, our
compressor are ensure to operate reliably and are 3%-5% more efficient than competing machines.
3.Oil Filter:Adopting the aerospace design revolving oil filter with superior materials,our oil
filter show a better filtering result than other oil filters and effectively extend the service life of air end.
4.Oil-Air Separator:With the super high volume tank, the superior quality separator
components, and the advanced design thrice oil-air separator, our compressor can ensure the high quality of the compressed air which contains less than 3ppm oil.
5. Air Filter:By using the large dust holding and low flow resistance design, our air filters can filter the micro articles in the air to ensure every components of the system works normally and efficiently.
6.Air Inlet Valve:With the advanced design, the inlet valve can be adjusted between 0 to 100%. By using the volume adjustment valve, the compressors will loss press and have longer service life.
7.Superior electronic control operating system:By using the intelligent microcomputer control system, the unit with a powerful fault diagnosis and protective function which can work last for 24 hours without watch.
Detailed Images

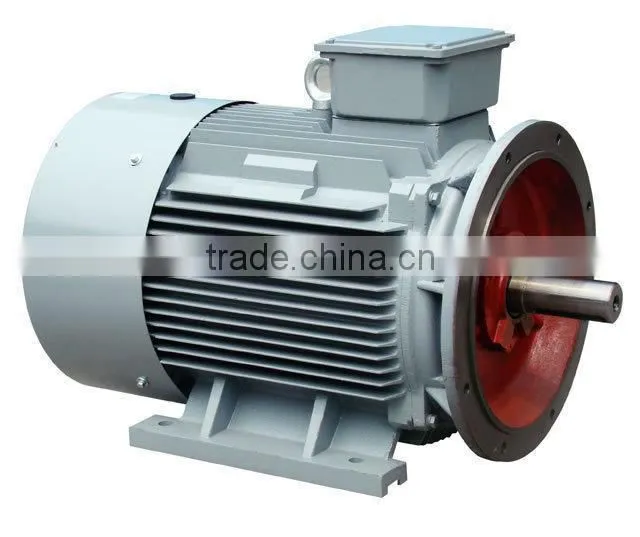

Air end Motor Oil/air separator

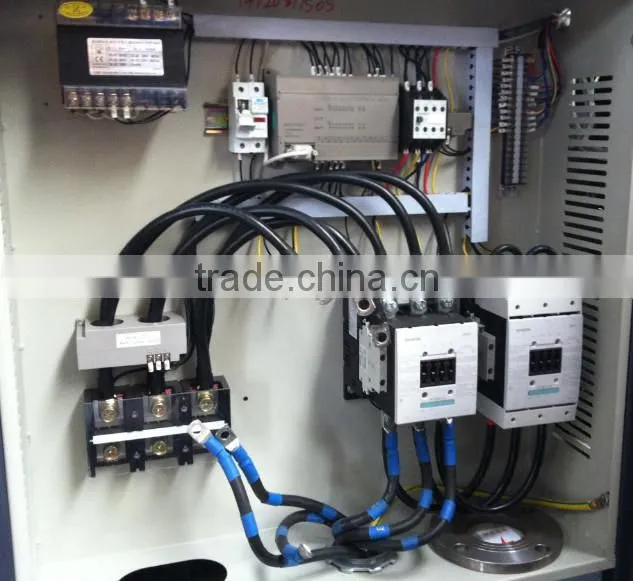

Microcomputer intelligent control Panel

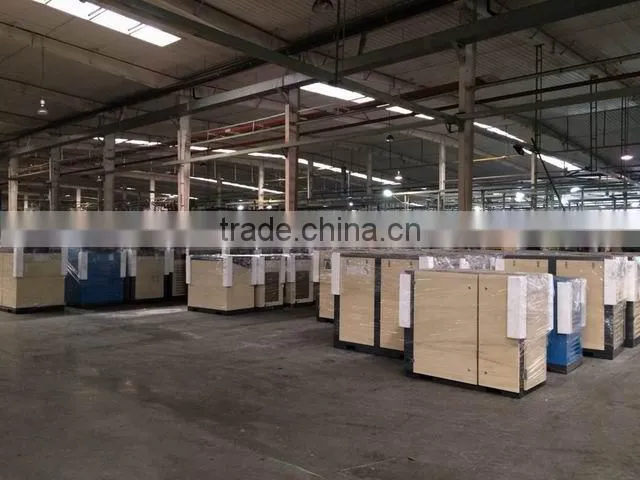

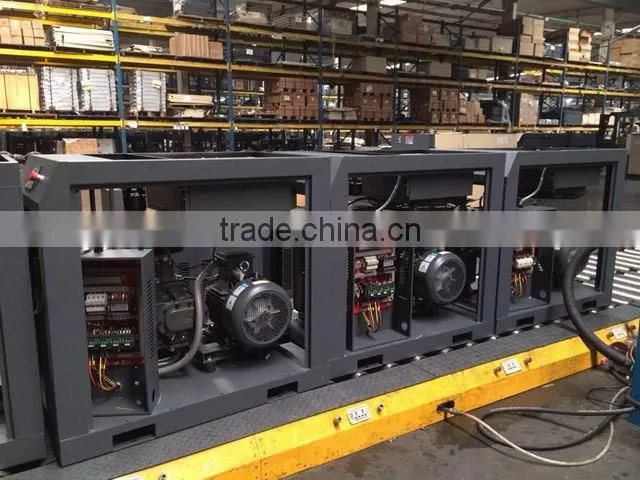

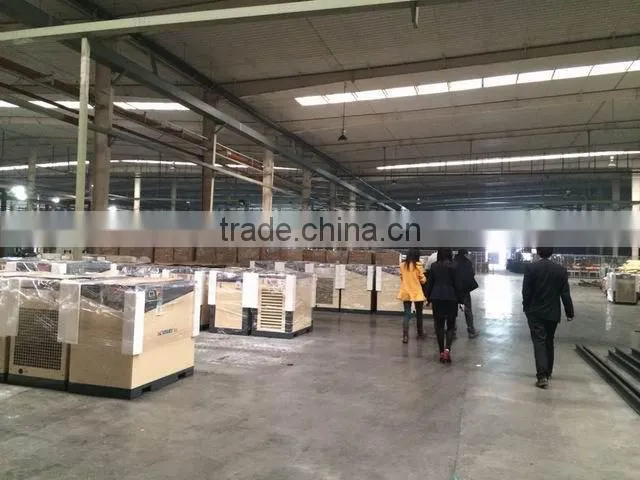

Factory Information
Product List
Model |
SG08 |
SG11 |
SG15 |
SG18 |
SG22 |
SGD22 |
SG30 |
SGD30 |
|
Capacity / Pressure |
1.2/0.7 |
1.7/0.7 |
2.4/0.7 |
3.1/0.7 |
3.8/0.7 |
3.8/0.7 |
5.2/0.7 |
5.2/0.7 |
|
1.1/0.8 |
1.6/0.8 |
2.2/0.8 |
2.9/0.8 |
3.5/0.8 |
3.5/0.8 |
5.0/0.8 |
5.0/0.8 |
||
0.95/1.0 |
1.4/1.0 |
2.0/1.0 |
2.7/1.0 |
3.2/1.0 |
3.2/1.0 |
4.3/1.0 |
4.3/1.0 |
||
0.8/1.3 |
1.2/1.3 |
1.7/1.3 |
2.2/1.3 |
2.9/1.3 |
2.9/1.3 |
3.7/1.3 |
3.7/1.3 |
||
Motor |
Power (KW) |
7.5 |
11 |
15 |
18.5 |
22 |
22 |
30 |
30 |
Horsepower |
10 |
15 |
20 |
25 |
30 |
30 |
40 |
40 |
|
Noise dB(A) |
65±2 |
68±2 |
68±2 |
69±2 |
69±2 |
69±2 |
69±2 |
69±2 |
|
Air Outlet |
G3/4 |
G3/4 |
G3/4 |
G1 1/4 |
G1 1/4 |
G1 1/4 |
G1 1/4 |
G1 1/4 |
|
Weight (kg) |
200 |
335 |
350 |
500 |
500 |
520 |
560 |
650 |
|
Housing dimension |
L(mm) |
750 |
950 |
930 |
1100 |
1100 |
1300 |
1100 |
1500 |
W(mm) |
650 |
770 |
770 |
850 |
850 |
850 |
850 |
1000 |
|
H(mm) |
830 |
1100 |
1100 |
1300 |
1300 |
1150 |
1300 |
1300 |
|
Cooling air Flow |
23 |
91 |
91 |
100 |
100 |
100 |
100 |
100 |
|
Warranty
Two years for air end,one year for whole machine.
