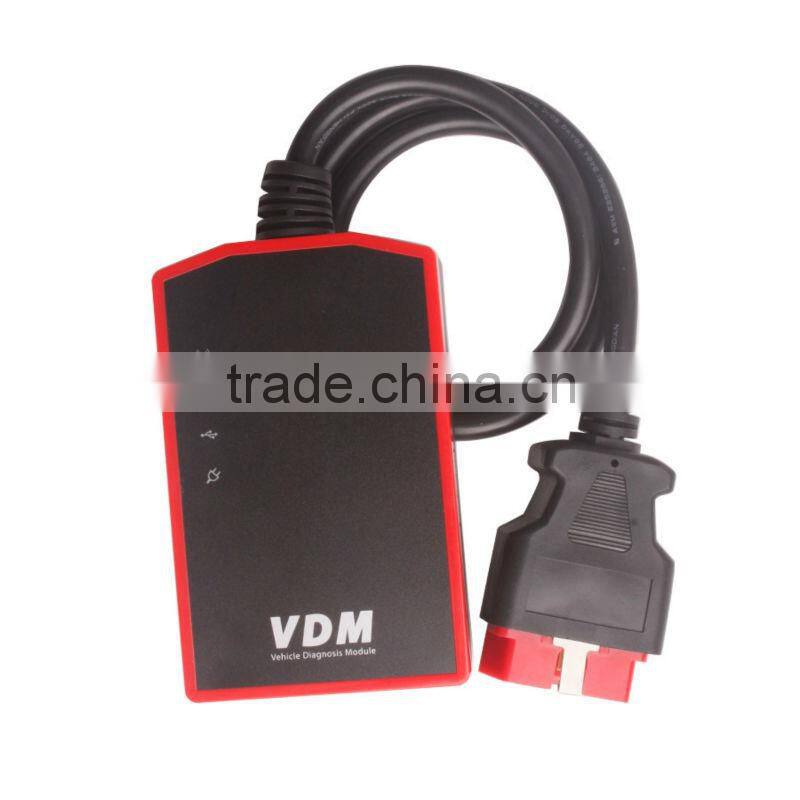

VDM UCANDAS WIFI Full System Automotive Diagnostic Tool(Better than Autocom)

Specifications

VDM UCANDAS WIFI Full System Automotive Diagnostic Tool(Better than Autocom)

VDM UCANDAS WIFI Full System Automotive Diagnostic Tool(Better than Autocom)covers 45 car models  and Windows XP, Windows 7, Windows 8 three systems supported.

Two ways for your free choice: cable diagnosis or wireless diagnosis ( WIFI provided)

Kindly note that this product provides WIFI and the distance for it can be within 50 meters.

Languages: Chinese/English

You can update on line,and the web link is:/

1. Product Introduction

The state-of-art UCANDAS VDM is delicately engineered and built by P&T Electronic Technology Co., a scan tool R&D company based in China. Established in 2009, P&T is now recognized by the automotive aftermarket industry as one of the fastest growing scan tool companies providing the most extensive and best price-performance ratio OEM-level diagnostic products and first-class customer support in the world. The UCANDAS Diagnostic System is ingeniously designed to recreate the functionality of the OEM tools used by automotive manufacturers’ dealers, empowering independent garage shops to provide complete servicing in their own shops, including data stream, reading and clearing of diagnostic trouble codes, component activation and immobilizer key coding, etc.

2. Product Features

*Supporting ISO 9141-2, K/L line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, ISO15765-4 protocols.
*High-speed, medium speed and low speed CAN-BUS, Single CAN-BUS diagnosis protocols is supported.
*Can check out the year and model of the vehicles automatically and quickly.
*All inclusive software coverage - European, American, Asian and Australian prevalent vehicles.
*OBDII diagnostic connector has a wide compatibility, which don’t need to replace other connector, during the testing.
*Hardware architecture uses new design with multiple protection, interference and stability. Built-in overvoltage protection module is applied, in order to protect scanner and vehicle against accidental damage during checking.
*Can work stably in high and low temperature environment, and work well.

3. Specifications

MCU:  ARM7 processor, 66MHz
Input Voltage:  DC 8-18V
Communication Mode:  USB and WIFI
Storage Temperature:  -30°C to 120°C(-22°F to 248°F), Relative Humidity: <90%
Operating Temperature:  -30°C to 120°C(-22°F to 248°F), Relative Humidity: <90%
Dimension:  137mm*175mm*63mm
Unit Weight: 469g (GW)

VDM UCANDAS Supported Vehicle list:

European car models: Audi, Benz, BMW, Citroen, Fiat, Ford EU, Jaguar, Lancia, LandRover, MINI, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Vauxhall, Volvo, VW.

USA car models: Chrysler, Ford, GM.

Asia car models: Acura, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Perodua, Proton, Subaru, Suzuki, Toyota

Australia car models: Ford AU, Holden

China car models: Chery, Geely, GWM

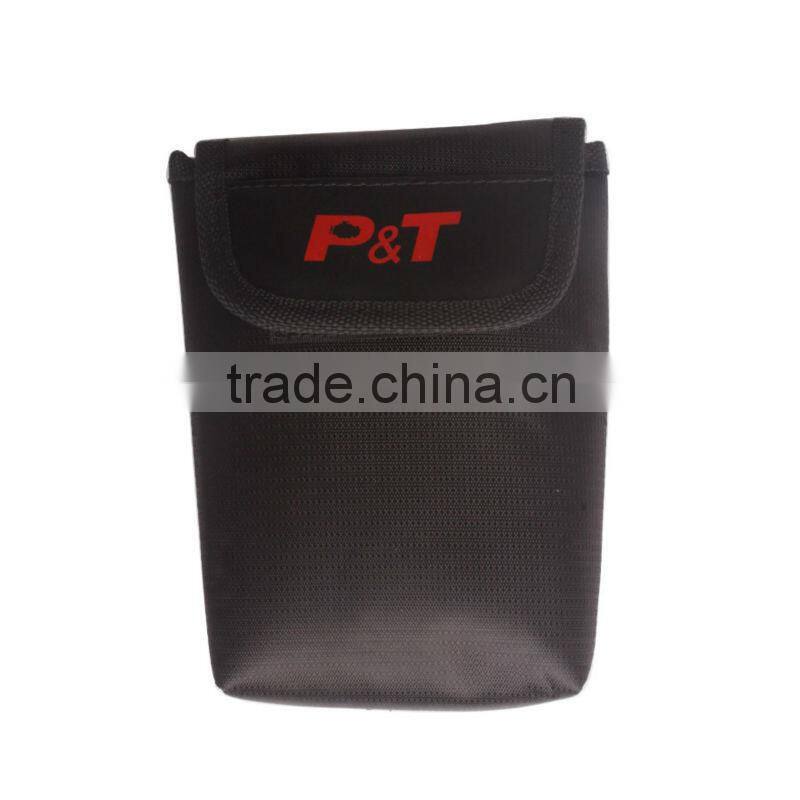

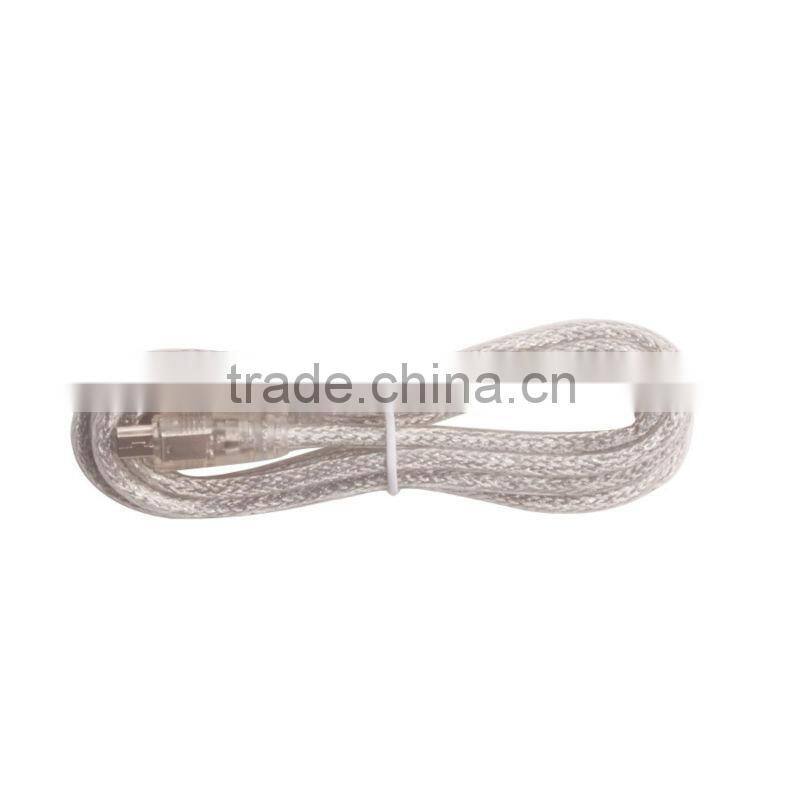

VDM UCANDAS Package including:
