Specifications
Video borescope endoscope inspection cameraBuilt in 4pcs white LED light
Waterproof
CE, EMC, IP67 & ROHS approved
9.8 m
Detailed Product Description
Video borescope endoscope inspection camera
Built in 4pcs white LED light
Waterproof
CE, EMC, IP67 & ROHS approved
9.8 mm dia
Video borescope endoscope inspection camera
Brief Description

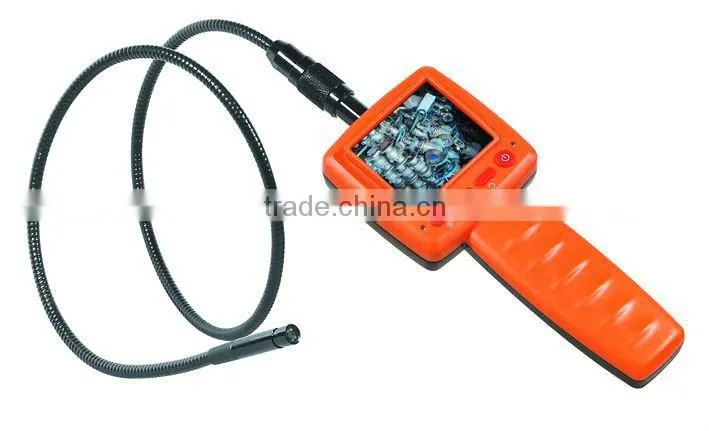

This 2.5" Color LCD Video Inspection Camera use optoelectronic technology to investigate hard-to-reach area. It helps you to diagnose broken part, weld point and released parts easily to save time and increase productivity.
It has built-in LED light (with Brightness Control) on camera head to illuminate the inspection area. The 1 m (3.3 feets) Flexible tube is Waterproof with 10 mm diameter so that you can inspect area under water, gaps and holes. Optional Cable (2m / 3m / 5m) allows you to extend the vision of inspection point.
The tool set also comes with accessory hook, magnet and mini mirror to attach to the camera head for picking up small objects, viewing and hooking to identify the problem conveniently.
This inspection camera has many applications including HVAC inspection, vent pipe, machine equipment, engine, cable routing, automotive / boat / aircraft inspection.
Features:
2.5" TFT Color LCD Monitor with 640 x 480 pixels
Clear image and stable performance
Flexible and Detachable 1000 mm Camera Probe (Can be extended with Optional Cable up to 5 metres)
Fully waterproof camera head (9.8 mm )
Adjustable Brightness of 4pcs LED Light
Magnet, Hook and Mirror Tips included
Fit for hard to reach distant inspection
4pcs Alkaline Batteries operated
Specifications:
LCD Display: 2.5" inch (8.9 cm) TFT LCD
Resolution: 640 x 480 pixels
Recommend Indoor use
Viewable angle: 54°
Focal length: 30-100 mm
Viewable distance: 2.5 ~ 30 cm
Diameter of camera head: 9.8 mm
Accessories: Magnet Tip, Hook Tip and Mirror Tip
Probe Length: 1000 mm
Probe Diameter: 6.8 mm
Probe and camera head protection: IP67 waterproof
Light source: High brightness LED
Power supply: 4 x AA Alkaline battery (excluded)
Estimated battery life: more than 3 hours
Operating temperature: 0 ~ 65 °C
Storage temperature: -20 ~ 60 °C
Dimension: approx. 208 (L) x 156 (W) x 60(D) mm
Weight: approx. 256 g (9.03 oz) (Battery and Probe excluded)
One Set Included
1 x 2.5" LCD Inspection Camera
1 x Flexible Camera Head
1 x Magnet Tip
1 x Hook Tip
1 x Mirror Tip
1 x Instruction Manual

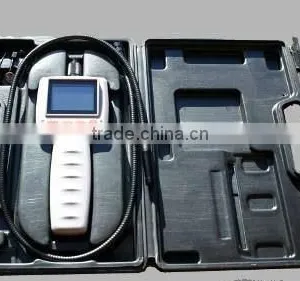

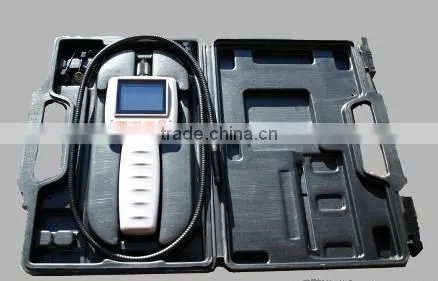

Standard Factory Package by tool box
