CNC-602A Injector Cleaner & Tester

CNC-602A Injector Cleaner & Tester photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Engine Analyzer
Voltage:
110v OR 220V
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Type Engine Analyzer
Voltage 110v OR 220V
Certification CE
Place of Origin Guangdong, China
Brand Name Launch CNC-602a
Model Number Launch CNC-602a

Specifications

CNC-602A injector cleaner & tester
1 Advanced electromechanics
2 Clean and test injectors
3.CE certification

CNC-602A injector cleaner & tester

CNC-602A injector cleaner & testerCNC-602A injector cleaner & testerCNC-602A injector cleaner & testerCNC-602A injector cleaner & testerCNC-602A injector cleaner & testerCNC-602A injector cleaner & tester

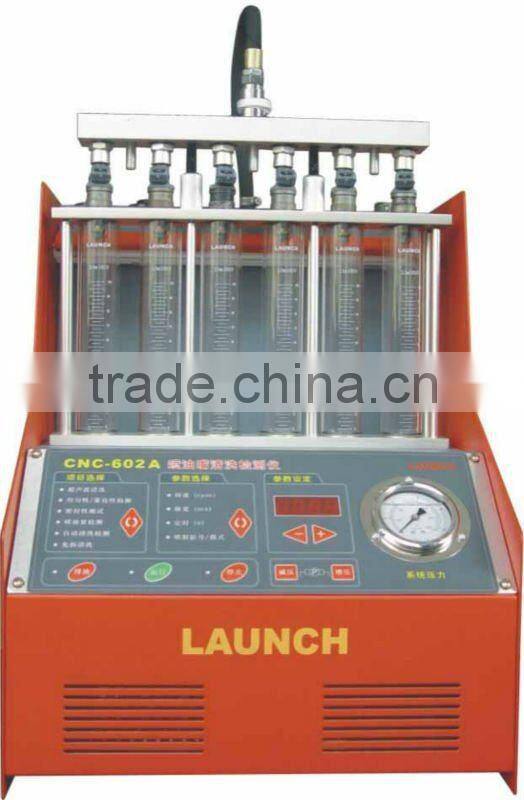

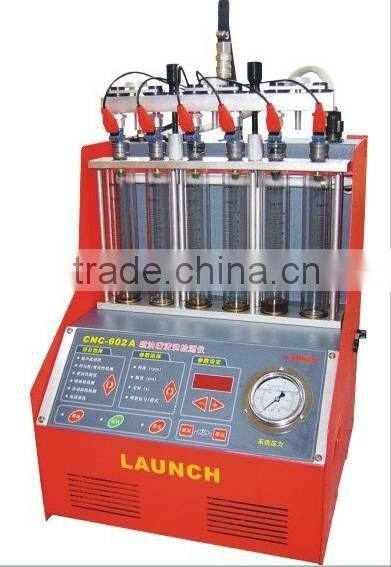

CNC-602A is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.


Launch CNC602A car washing test an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle
Feature
* Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely
* Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
* Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
* Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection. .
* Auto. test: To test injectors by simulating different working conditions.
* On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.
Specification..

* Power supply: AC220V±10%, 50/60Hz;AC110V±10%, 50/60Hz...

* Input power: 250W;

* Ultrasonic cleaner power: 100W;

* Simulated RPM range: 109990rpm; step: 10rpm;

* Time range: 19999s; * Pulse width: 0.525ms; step 0.1 ms;

* Fuel tank capacity: 4700ml;

* Dimensions: 385mm×410mm×500mm.

* Weight: About 48kg,

CNC-602A injector cleaner & testerCNC-602A injector cleaner & testerCNC-602A injector cleaner & testerCNC-602A injector cleaner & testerCNC-602A injector cleaner & testerCNC-602A injector cleaner & tester
