Help CenterPolyurethane Spray Foam Machine JHPK-F2008A Manufactrue
Related Products
-
Ployurethane Foam Insulation JHPK-F2008A ManufactrueUS$ 6,500 - 7,000MOQ: 1 Set -
Insulating Spray Foam JHPK-F2008AUS$ 6,500 - 7,000MOQ: 1 Set
-
Spray Foam EquipmentUS$ 4,300 - 4,900MOQ: 1 Set
-
Hot Sale Portable Polyurea Spray Foam Equipment for SaleUS$ 16,000 - 18,000MOQ: 1 Set
-
Polyurethane FoamUS$ 6,500 - 7,000MOQ: 1 Set

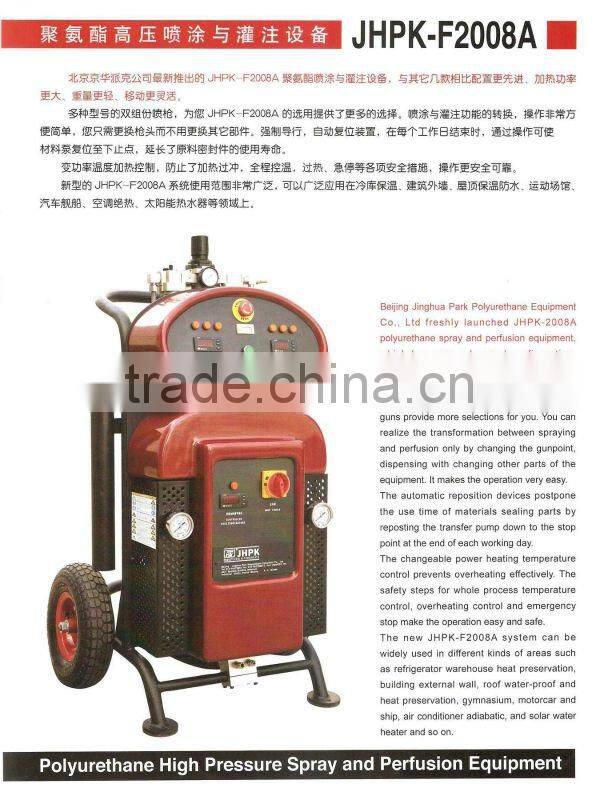

Beijing Jinghua Park Polyurethane Equipment Co., Ltd freshly launched , which Various types of double-component spray guns provide more selections for you. You can realize the transformation between spraying and perfusion only by changing the gunpoint, dispensing with changing other parts of the equipment. It makes the operation very easy.The respective 3000w heaters foe the double-component materials reduce the viscosity of the material more effectively to assure the optimal blending effectiveness.The automatic reposition devices postpone the use time of materials sealing parts by reposting the transfer pump down to the stop point at the end of each working day.The changeable power heating temperature control prevents overheating effectively. The safety steps for whole process temperature control, overheating control and emergency stop make the operation easy and safe.The new JHPK-F2008A system can be widely used in different kinds of areas such as refrigerator warehouse heat preservation, building external wall, roof water-proof and heat preservation, gymnasium, motorcar and ship, air conditioner adiabatic, and solar water heater and so on.

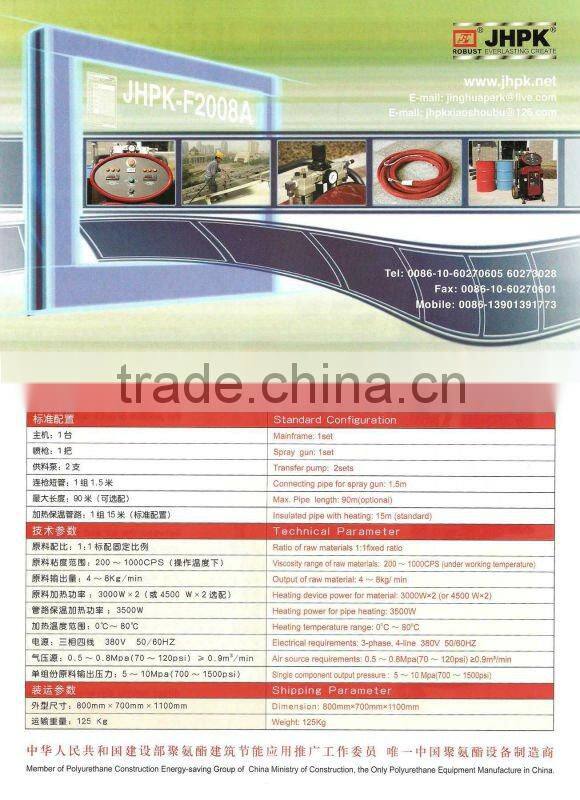

Standard Configuration
Mainframe: 1 set
Spray gun: 1 set
Heating and preserved pipe: 15m
Connecting pipe for spray gun: 1.5m
Max. Pipe length: 90m
Transfer pump: 2 sets
Technical Parameter:
Electrical requirements:
Air source requirements:0.5~0.8Mpa(70~120psi) ≥ 0.9m3/min
Output: 4~8kg/min
Heating device power for material: 3000w x2(or 4500w x2)
Heating power for pipe heating: 3500w
Single component output pressure: 5~10Mpa (700~1500psi)
Shipping Parameter:
Volume: 800x700x1250(mm)
Weight: 125kg
Send Inquiry to This Supplier
