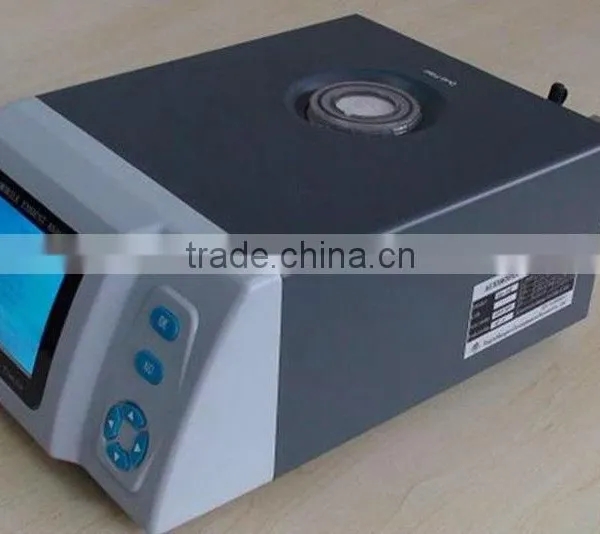

Help CenterOriginal SV-5Q Gas Analyzer
Related Products
-
SV-2LZ Full Automatic Smoke MeterNegotiableMOQ: 1 Piece -
SV-5Y Smoke Meter & Opacimeter Automobile Exhaust Gas AnalyzerNegotiableMOQ: 1 Set
-
SV-YQ Car Emission Tester (gasoline and Diesel )NegotiableMOQ: 1 Set
-
SV-YQ Dual-use Petrol and Diesel Exhaust Testing Gas AnalyzerNegotiableMOQ: 1 Set
-
Portable Gas DetectorSV-5Y Smoke MeterNegotiableMOQ: 1 Set
Specifications
Used to measure the concentration of HC, CO, CO2,O2, NOx in the Automobile Exhaust Gas
Main Function:
Used to measure the concentration of HC, CO, CO2,
O2, NOx in the Automobile Exhaust Gas
Two kinds of Test Function: General and Two-speed idle
Full English Menu Operation
LCD (Liquid crystal) screen display
Auto-zeroing
Automatic calculation and show the air-fuel ratio
Equipped with RS232 digital serial communication interface to facilitate networking
Optional function: rotate speed and oil temperature
Measurement
Equipped with functions of plate number and time display
Can store and search 500 groups of data, built-in printer
Measurable with Liquefied Petroleum Gas(LPG),Compressed Natural Gas(CNG),and gasoline and other alternative fuel vehicles
Environment conditions:
Temperature: -5~40°C humidity: ≤95%
Atmosphere pressure: 670~106kps
Power supply:AC220V ±10%; 50Hz ±1Hz
Measurement range:
HC: 0~10000 10-6(ppm) vol
CO: 0~10.0 10-2 (%)vol
CO2: 0~20.0 10-2(%)vol
O2:0~25.0 10-2 (%) vol
NOx:0~5000 10-6(ppm)vol
Rotate speed: 0~10000rpm
Oil temperature: 0~120 °C
Response Time:
CO, HC, CO2≤10S ; NOx, O2≤15S
Indication Error:
CO: ±5% (relative error: 0-10%)
CO2: ±5% (relative error: 0-20%)
HC:±5% (relative error: 0-2000ppm vol Hexane equivalent)
±10% (relative error:2001-9999ppm vol Hexane equivalent)
O2: ±5% (relative error: 0-20.9%)
NOx: ±4% ( relative error)
