ZM-05 Aluminum Alloy Single Point 10kg 20kg Load Cell Sensor

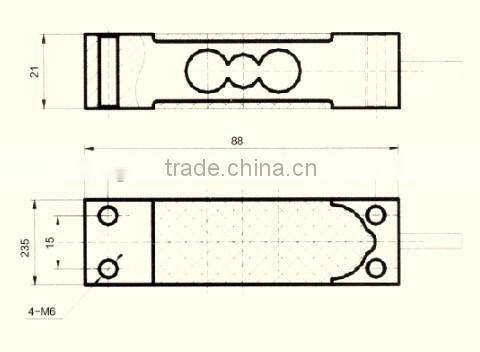

ZM-05 Aluminum Alloy Single Point 10kg 20kg Load Cell Sensor thumbnail-1
ZM-05 Aluminum Alloy Single Point 10kg 20kg Load Cell Sensor thumbnail-2

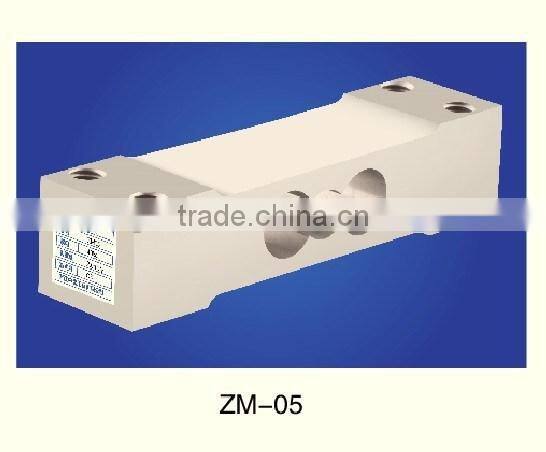

ZM-05 Aluminum Alloy Single Point 10kg 20kg Load Cell Sensor photo-1

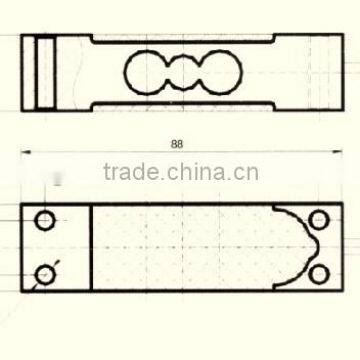

ZM-05 Aluminum Alloy Single Point 10kg 20kg Load Cell Sensor photo-2
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ZM
Model Number:
ZM-05
Contact Supplier Request Quote Chat Now
Yongkang Xianghai Weighing Instruments Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ZM
Model Number ZM-05
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor

ZM-05 Aluminum Alloy Single Point 10kg 20kg  30kg 40kg Load Cell Sensor



 ZM-05 Aluminum Alloy Single Point 10kg 20kg Load Cell SensorZM-05 Aluminum Alloy Single Point 10kg 20kg Load Cell Sensor





Technical Parameter

Application

Platform Scale

Model

ZM-05

Capacity                             kg

10kg 20kg 30kg 40kg

Rated Output                      mv/v

2.0±0.2

Accuracy Class

 C3

Comprehensive Error                 %F.S

±0.020

Non-Linearity                      %F.S

±0.020

Repeatability                       %F.S

0.015

Hysterisis                          %F.S

0.02

Creep                       %F.S/30min

0.02

Temperature effect on output        %F.S/℃

0.0016

Temperature effect on zero         %F.S/℃

0.002

Zero Balance                       % F.S

±1.0

Input Resistance                     Ω

400±15

Output Resistance                    Ω

350±3

Insulation Resistance           MΩ(50V)

5000

Recommended Excitation Voltage       V

12~18

Compensated Temperature Range       ℃

-10~55

Operating Temperature Range         ℃

-20~75

Safe Overload                    % F.S

150

Ultimate Overload                 % F.S

200

Load cell material

Aluminum

Connecting Stable

400mm-3m

Method of connecting wire

Excitation (+): Red  Signal (+): Green

Excitation (-): Black  Signal (-): White
