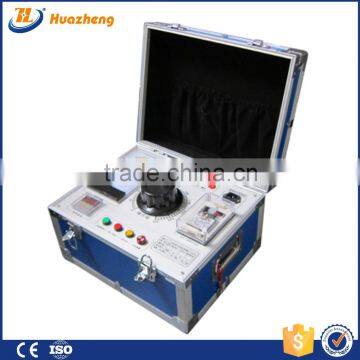

testing machine AC DC Hipot Test Set/ high voltage generator ac with low price
testing transformer classification:
There are four kinds of high voltage testing transformer according to the medium points:
1. Oil-immersed high voltage transformer test: large capacity, cheap, convenient maintenance, mainstream products.
2. Inflatable high voltage test transformer : interrupter resistance, and light weight.
3. Dry typehigh voltage testing transformer: light weight, light volume, can run backward, price expensive.
4.Series type high voltage testing transformer: small volume, low voltage, light weight, easy to transport and install.
ac and dc hipot
high voltage generator

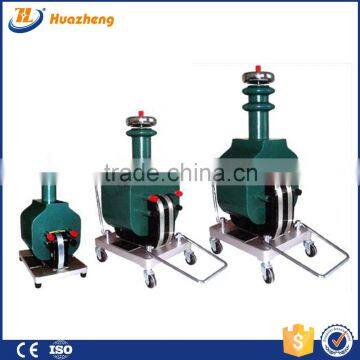

AC DC high voltage tester set inflatable testing transformer feature:
1 , The inflatable testing transformer , small in size, light in weight ( compared with the same level of oil-immersed transformer tested 40% -65 % lighter )
2 , Clean, greaseless, no need to maintenance
3 , Weather-proof, on site testing without standstill YDQ series high voltage SF6 inflatable experimental transformer
4 , The dielectric strength is higher than the oil-immersed testing transformer dielectric strength
test transformer oil significantly, and the corona is minimal
AC DC high voltage tester set inflatable testing transformer parameter:
1. Voltage class: 10kV~600kV
2. Capacity range: 1~500KVA
3. No-load current: < 7%
4. Impedance voltage: < 8%
5. Product type: AC, DC&AC, AC cascade, AD & DC cascade.
high voltage generator ac
Frequently Asked Question
1. Q: What is the language? After sale service,the Warranty?
A:English version or as your requirement.Warranty : 1 year.
2. Q: Does it output AC or DC or AC&DC?
A: We have AC and AC&DC, for your choice.
3. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: Some models have insulation oil, no battey, which does not influence the delivery.
4. Q: Where is it used?
A: Testing dielectric strength ofHigh-voltage electrical equipment, electrical components, insulation material. For example,cable, high-tension switch etc.
5. Q: What types of testing equipment?What’s the difference?
A: There are dry, oil-immersed and inflatable,three types. Differences as follow:
Dry: light weight, volume light, can rewind.
Inflatable: interrupter resistance, and light weight.
Oil-immersed: capacity, cheap, easy maintenance, mainstream products.
high voltage generator ac
We have attended Power-gen Exhibition in South Africa on July 19-21, 2016.
and the MEE Exhibition in Dubai on 1st to 3rd March 2016. And they are very successful. The follow is the photos that we attended the Power-gen Exhibition and the MEE Exhibition.
high voltage generator ac
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Close to Tianjin port, the transportation is convenient. our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
