car alarm system push button start engine for Toyota Rush

Specifications

1. remote keyless entry
2. Militart Material USA made
3.18 monthes wanrrenty
4. Factory OEM&ODM
5. Smart push button



RFID Car Immobilizer For Toyota Rush With Special Wiring Harness(EXCLUSIVE Sockets), which makes it easy on installation, just plug to plug....





Please kindly find our Keyless remote system from youtube video: youtu(dot)be/hhgPUmlk5e4



Why us??





Company Advantages:

1.Excellent after-sale service, with about 10 years experience in this field.

2.OEM accepted

3.High quality manufacture productions

4.Engineer Free Installation Guidance

5.Competitive price

6.Great Discount On Continuous Orders

7.Customize Your Brand/Logo accept

8.Exclusive sockets,easy on installation



Product advantages:

Push Button Start System
Leadtour Smart key System provides a true hands-free keyless operation experience. The encrypted communication link between Push-Start module and Keyless Entry modules will ensure the vehicle can only be started with a valid access key. This system is also designed with dual-relay protection in mind for exceptional safety consideration. In an unlikely event of a relay failures, the backup relay will take over and ensure continuous vehicle operation without interruption.





 RFID keyless entry car alarm system push button start engine remote start engine for Toyota Rush Thailand Malaysia Singapore





Products Dates
Host System
Operating voltage:		12V±3V
Quiescent current:		20 mA
Current of shocking sensor:		1mA
Output current(Max)	Light	5A
	Siren	10A
	Central locking	10A
Frequency:		433.92MHz
Engine Start system
Operating voltage:		12V±3V
Quiescent current:		20 mA
Output current(Max):		ACC/ON/START 30A
Smartkey System
Control Distance:		Clearings 30M
Quiescent current:		10 mA
Smart Recognition Distance:		1.5M-2M
Operating voltage:		3V
Battary code:		CR2032 Li-Battery







1.    What’s RFID keyless entry push button engine start?



Could start or stop the engine by simply push the start button. Completely abolish the ignition keys. The system will verify if there is legal access key in the car before allowed to start. It can guarantee the safety.



Engine Push Start System, many luxury cars already have it as standard option, such as Mercedes-Benz, BWM, Volvo, Lexus and so on.





2.   Main Functions

1. Passive Door Locking

By simply walking over 1.5 to 2 meters away from your car, doors will automatically lock and ARM the security system.

2. Unlocks Doors Automatically

As you approach your vehicle and arrive in range of 1.5 to 2 meters, the system will automatically identify the driver who has a valid access key and unlock the doors immediately.

3. Immobilizer Function

The PKE system still includes an immobilizer function. It can provide the user with the most comprehensive protection against vehicle theft. Once users enter the vehicle and attempt to start it, the device will verify the driver's access key. If a valid access key is identified, the LED will turn off allowing the driver to start the vehicle. If not, the horn and lights will sound and flash an alarm, and the vehicle engine can not be started.

4. Engine Push Start Button

Could start or stop the engine by simply push the start button. Completely abolish the ignition keys. The system will verify if there is legal access key in the car before allowed to start. It can guarantee the safety.



3.  Other Function:

1. Hi-classify Safety

The highest level of security US made RFID core chip is used, and mutual authentication is done between the access keys and the base which installs it in vehicles, and also we used hopping code technology, making it extremely difficult to crack the access key.

2. Convenient Access Key

The Access Key is very thin, only 6mm thick, and also only 2/3 of credit card size. Easy to carry, can be put it in wallet, and need not be taken out to use. Consequently it will be carried separately from other keys providing added safety and convenience.

3. Alarm Accuracy

The system will initiate alarm only when the vehicle has suffered real violation, and will not be triggered by lightning or other harmless influences.

4. Locks After First Braking

The vehicle door will be locked automatically when driver step the brake at first time after engine been started.

5. Unclosed Door Alarm

If driver leaves vehicle without closing a door or doors, the system will let you know with a separate open door alarm when the key leaves the contact range. Even if this alarm is ignored the car alarm will still be in effect.

6. Low Battery Reminder

When the access key's battery is low, the system will automatically sound the horn and flash lights to remind the driver to replace the inexpensive and readily available battery.

7. Nullifies Frequency Jamming Devices

Some thieves use frequency jamming to jam remote controls, stopping the system from arming, so they can steal the vehicle. Our system can not be jammed and avoids the possibility of such theft. Even being jammed, the doors still will be locked.

8. Stops Code Scanner Yard Sweeping Dead in it's Tracks

Many thieves will use a code-scanner to sweep yards when drivers open or close vehicle doors by remote control, and copy signals to steal vehicles. The access key uses mutual authentication technology, and hopping code to avoid this.







New Packager Box







Packing Including



1. Smart keys 2 pcs
2. Engine start button 1 pc
3. Window rolling system 1 pc
4. Password keyboard 1 pc
5. Shock sensor LED 1 pc
6. Avoidance device 1 pc (optional part)
7. Siren 1 pc (optional part)
8. Host System 1 pc
9. Wire 4 pcs(Wiring harness clip fastener,Accessory Bag,Wiring harness,Induction Antenna)
10. Installation diagram 1 pc
11. User's manual 1 pc

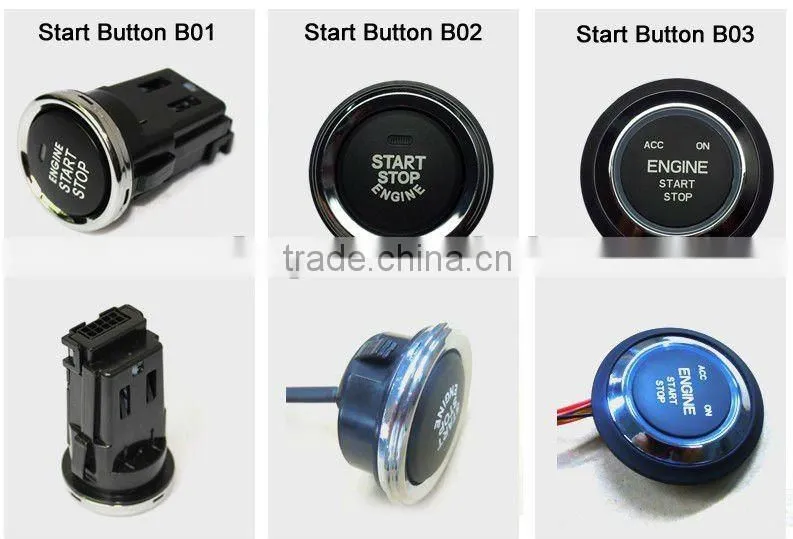

PS: When you want to order, Thank you for your marks which button do you want ?

Long B01, Short B02 or Thin B03.
