Wire-free anti-theft lock RF RELAY MH FOR Mercedes

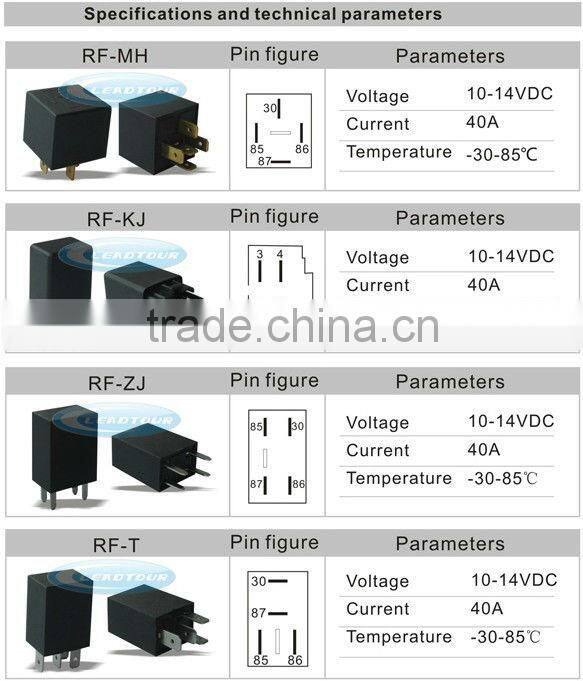

Specifications

The rf relay anti-theft lock is comprised of RF relay and portable identity card,Directly replace the relay of fuel line

The rf relay anti-theft lock is comprised of RF relay and portable identity card,Directly replace the relay of fuel line of the automobile, and wire free. Applicable for more than 300 models from Europe, America, Japan and Korea etc. The rf relay anti-theft lock is comprised of RF relay and portable identity card,Directly replace the relay of fuel line of the automobile,wire free anti-theft lock RF RELAY MH FOR Volkswagen



Installation: Wire-free direct insertion installation: about the controlled automobile, open the relay box, and find the relay with the same size of this RF relay and is the relay of the control fuel pump. The relay can be found as follows: find the relay with the same size of this RF relay, remove the relay, start the automobile (at the origin place, neutral), if the automobile is flameout several minutes later, insert the relay and the restarting the automobile is normal. If the relay is the same with one of the four RF relays described in the product list, the relay can be replaced by this RE relay. The removed relay shall be the same with pin 85 and pin 86 (pin 1 and pin 2) of this RF relay, which are pins of the relay coil This RF relay can replace ON relay and other electromagnetism relay, which are installed with professional's guide.



Common pump relay labeled:

A. Pump relay

B. FULE PUMP

C. EFI relay 2

D. C / OPN

E. F / PMP

F. Open Relay



Commonly labeled as the ignition relay:

A. Ignition relay

B. ON RELAY

C. IG2 relay
