Black zinc electrical locker system with panel lock
1.black zinc electrical iron cabinet lock,three-point lock
2.Model:SW-480 cabinet lock
3.IP40
4.ZDC body.
5.Material and Surface Treatment:
Housing and Lock-back: Zinc alloy die cast, matt black powder coated.
Large Core and Small Core: Zinc alloy die cast, bright chrome plated .
Shaft, Lock-tongue, Insert: Zinc alloy die cast,accessory with zinc plated.
Key: Zinc alloy die cast, nickel plated, or nickel-plating brass key with ABS handle.
Installation, Cam Location: Cold rolled steel accessory with zinc plated.
Pin, Locking Screw : Rolled steel accessory with zinc plated.
Key-ring, Spring, Torsion Spring: Carbon steel wire, passivation.
Cap, Dustproof Cap: 304 stainless steel, passivation.
Insert-panel: Brass , yellow.
6.IP Grade: IP65.
7.Application:
(1) Large pop-up cabinet locks
(2) Two types for choosing: rounded-corner and square corner.
(3) Both for left-hand and right-hand use by changing the locating plate.
(4) It apply to lighting box, controlling switch-board , fire-fighting cabinet, telecom equipment cabinet, electricity cabinet and other kinds of cabinets .
1. Product's Brief
| Item | Black zinc electrical door panel iron cabinet lock |
| Model | SW-480 |
| Material | Zinc-alloy |
| Surface treatment | Black powder coated |
| Key | 2 pcs key for each lock |
| Operation Distance (X) | 12.5/17.5/22.5/25/28/30mm |
| Packing | QTY: 75 pcs per box and 4 boxes per master carton. MEAS: 328*208*270 mm G.W.: 21.5 KG N.W.: 20.5 KG |
| Applicability | Metal or nonmetal cabinet,public telephones,metro auto-gate,Intelligent Terminal Device,Financial Terminals,Game Consoles,Vending Machine,Strongbox,Advertising Box and etc. |
| Website |
2. Shipment & Payment
| MOQ | 500 PCS |
| Sample | Free sample,Freight amount should be paid by customer. |
| Lead time | 10-25 days upon the order quantity. |
| Port of Loading | Shenzhen or other port as you request. |
| Payment terms | T/T, L/C, Paypal, West Union and etc. |

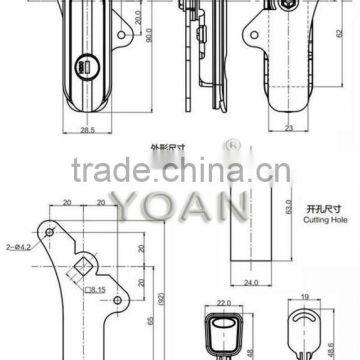

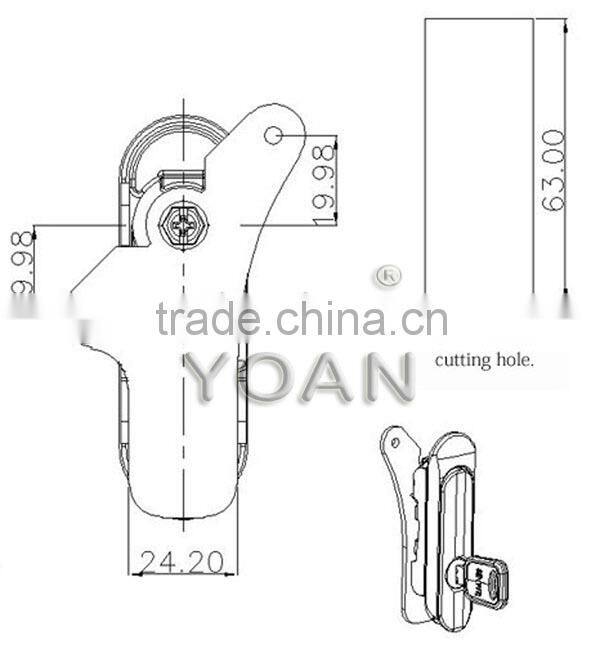

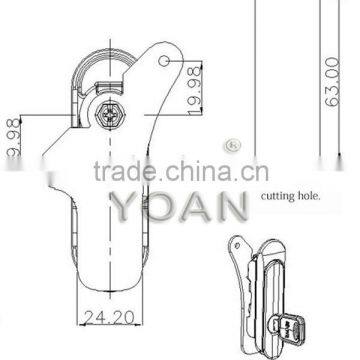

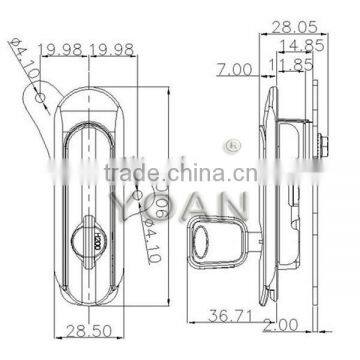

3.Technical Drawing:
4.Plant View
