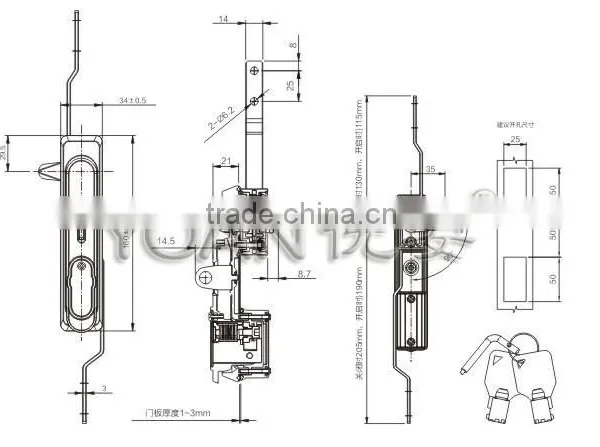

Rod control cabinet lock with tubular key

1.1  Material: ZDC lock body, handle and gear box. Cam, driving rod, gear and shaft is made by Q235. Stainless steel nut and hanging ring.

1.2  Surface treatment: Black oil sprayed lock body and handle. Environment color zinc plated shaft,gear box,cam ,driving rod and gear. The nut and hanging ring are natural SS color.

1.3  Structure: Rectangular multi-functional lock. The handle will bounced up when rotating the key 45^o in clock-wise. The driving rod will retract 15 mm when you rotating the handle 90^o in anti-clock-wise. The cam will rotating 90^o in anti-clock-wise at the time and the lock will into unlock status. The key have self-return function. The hanging ring could be used with a pad lock. This lock could be used both in left handle and right handle door by changing the locating plate.

1.4  Thickness of panel : 1-4mm.

1.5  Applicability: Power distribution cabinet, Communication Cabinet, Instrument Box, Control Box and etc.
