high voltage phase nuclear detector/high pressure phase detector
Product Introduction:
The nuclear phase series, respectively used for 6,10,35,66,110,220,500 KV system determines two
power supply(generators) phase, in order to determine the grid. Nuclear phase device(rod) with the
feature of light weight (about 2 to 4 kg), small size and easy to operate.
Our company has developed a series of live working nuclear phase (rod) material, adopting
moistureproof insulation rod, in line with IEC-1 / IC78 standard, with moistureproof, high temperature
resistance, shock resistance, anti-bending, high insulation and other features. The product through
high voltage of the national power company inspection and in line with GB13398-92, GB311.1-311.6-
8, 3DL408-91 standards.
Parameters:
Table 1 Insulating parts shock withstand voltage test
Insulation parts Rated voltage (KV) |
Power frequency withstand voltage (KV) |
Distance between poles (m) |
Time power frequency withstand voltage(min) |
10 |
45 |
0.7 |
1 |
35 |
95 |
0.9 |
1 |
66 |
175 |
1 |
1 |
110 |
220 |
1.3 |
1 |
220 |
440 |
2.1 |
1 |
330 |
380 |
3.2 |
5 |
500 |
580 |
4.1 |
5 |
Table 2 Phase meter response when distinguish phase
|
Category
Determination signal |
Common Technology Types |
||
Meter |
Tapper |
Light |
|
There has three reaction signal for different phases |
Indicates the corresponding voltage |
Audible sound |
Bright |
No three-phase reaction for the same phases |
No indication |
No sound |
No bright |
Product Picture:

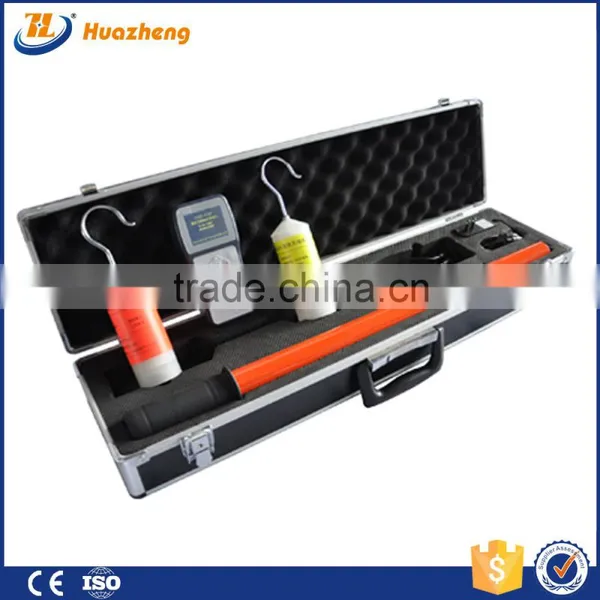

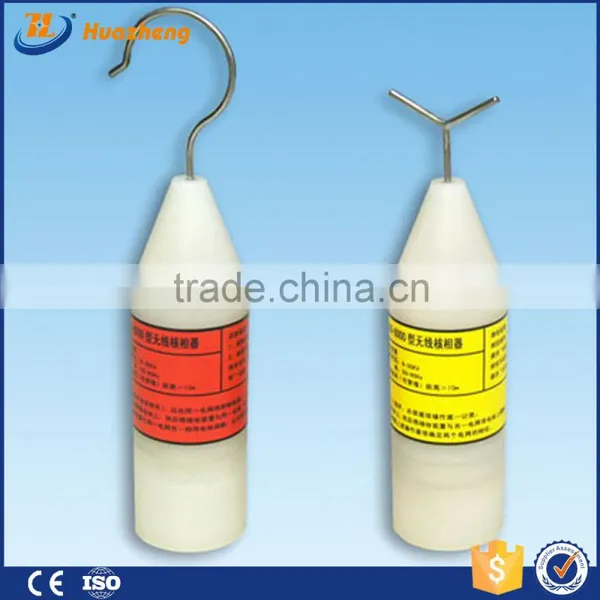

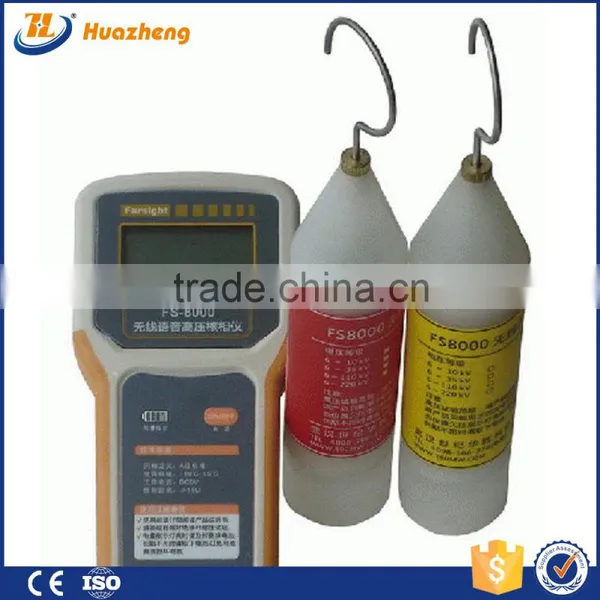

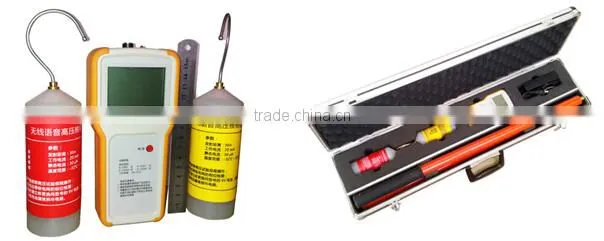

Photo 1 : Transmitter and receiver 2: Overall effect Photo

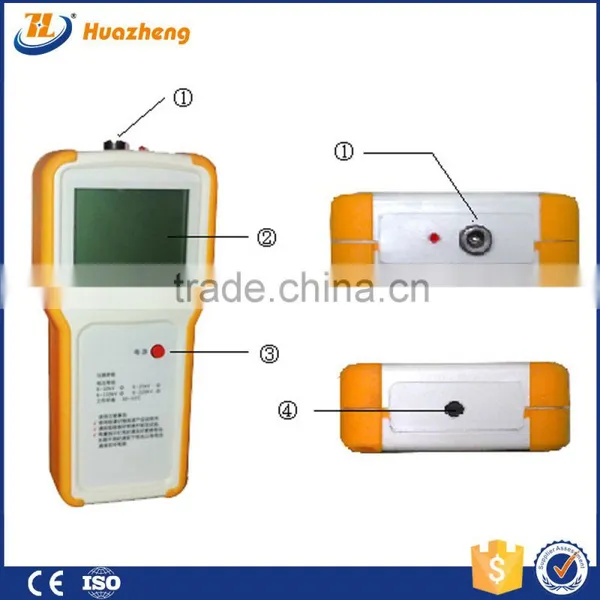

1, input, charging 2 LCD screen 3 power switch 4 horn
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
