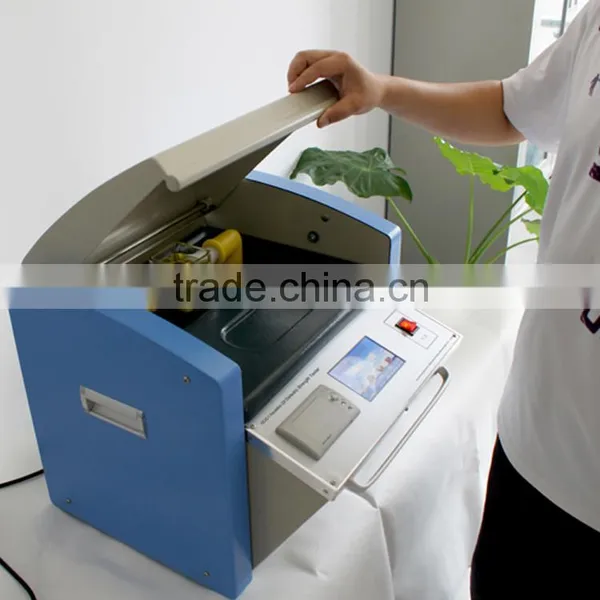

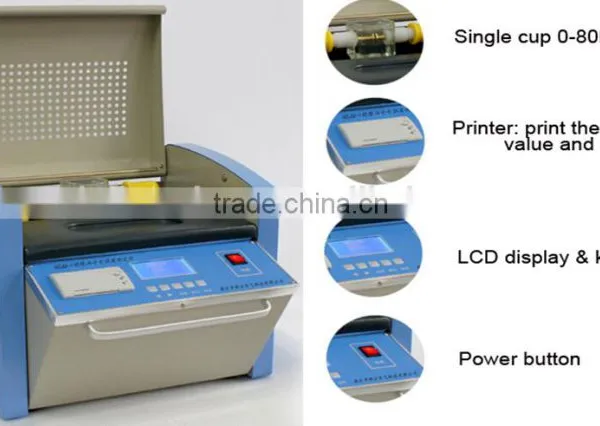

HZJQ-1 auto insulating oil breakdown voltage/ transformer oil testing machine made in China
1. transformer oil BDV test equipment Insulating oil dielectric strength tester Description
It is testing all kinds of Insulation Oil's Dielectric Strength Value.
2. transformer oil BDV test equipment Insulating oil dielectric strength tester Features
1.Automatic test system,safe and clean.

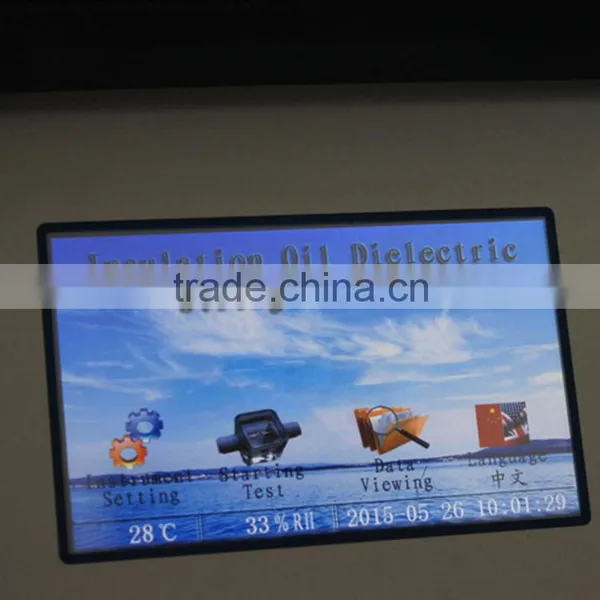

2.Large-screen LCD
3.It is suitable by the function of adjustable.
4.Equipped with over-voltage, over-current and limit protections.
5.Measured temperature and system clock.
6.RS232 interface,can connect with computer.
7.Power-down preservation. It can save 100 tested results and displaying current ambient temperature and humidity.
3. transformer oil BDV test equipment Insulating oil dielectric strength tester Technical Data
1. Power supply: AC220V±10% , 50 HZ 1. (Different Power Supply can be supplied.)
2. Output voltage: 0 to 60KV, 80KV, 100KV(100KV should be special designed)
3. Capacity: 1.5KVA
4. Speed of Voltage Increase:0.5~5kva/s(adjustable)
5. Standing Time: 15min (adjustable)
6. Boosting Frequency :1~6 time(s) (adjustable)
7. Wave form distortion : less than 3%
8. Time of dielectric strength:less than 10ms
9. Working Environment: Temperature: 0℃~ 45℃, humidity: max relative humidity 75%
|
|
We have attended Power-gen Exhibition in South Africa on July 19-21, 2016.
and the MEE Exhibition in Dubai on 1st to 3rd March 2016. And they are very successful. The follow is the photos that we attended the Power-gen Exhibition and the MEE Exhibition.
